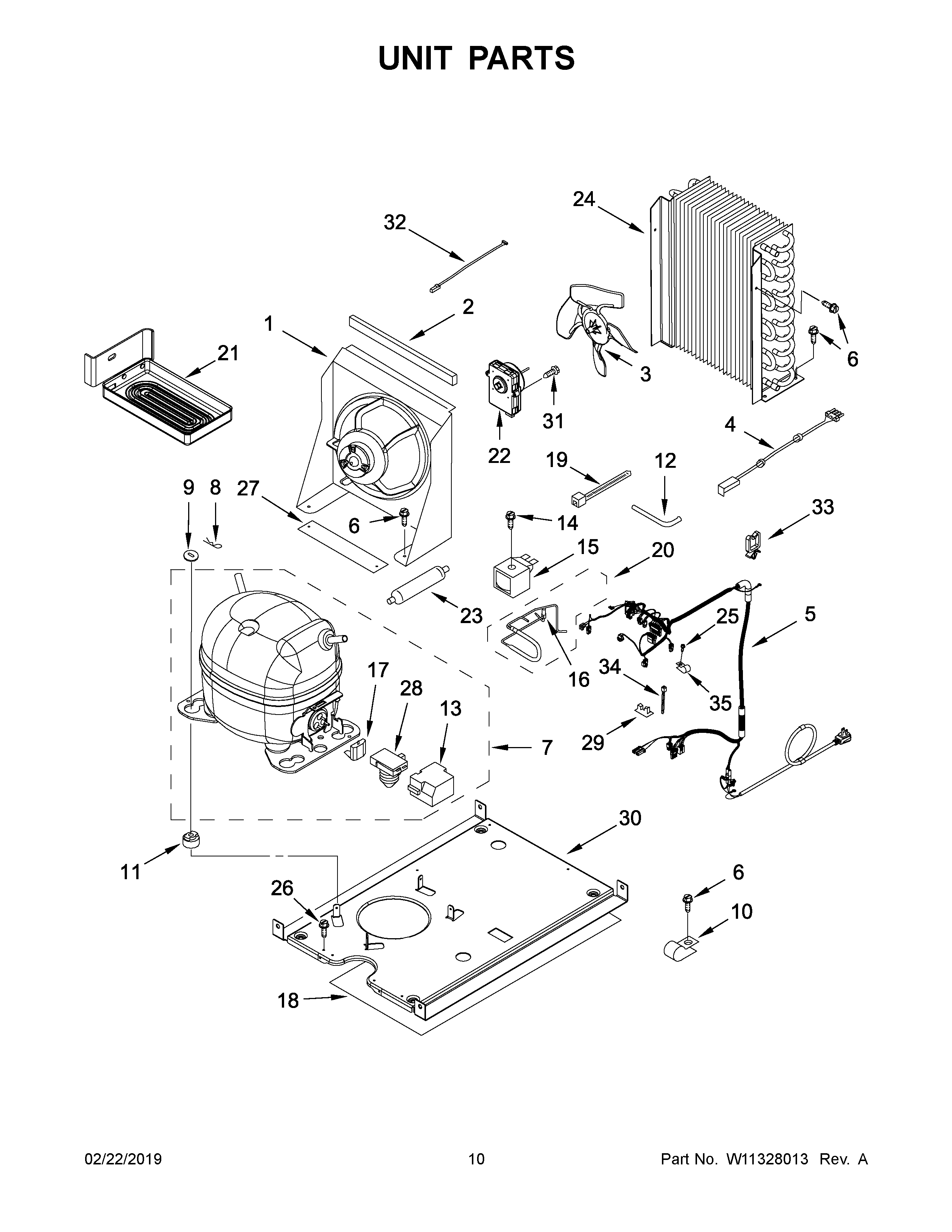

KUID308HPS00 06 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1WP2185532 Whirlpool Refrigerator Bracket
22185675 Whirlpool Refrigerator Foam Pad
3WP2188935 Whirlpool Refrigerator Fan Blade
4WP2187629 Whirlpool Refrigerator Wire Jumper
5W11123917 Whirlpool Refrigerator Harness
6WP489069 Whirlpool Compactor Screw
7W11735041 Whirlpool Compressor
8A201435 Whirlpool Refrigerator Clip
9A201441 Whirlpool Refrigerator Shim
10CLAMP, POWER CORD
112185965 Whirlpool Refrigerator Grommet
12W10528572 Whirlpool Refrigerator Tube
13WP2162358 Whirlpool Refrigerator Terminal Cover
14SCREW
15WPW10206473 Whirlpool Refrigerator Coil Solenoid
16WP759113 Whirlpool Refrigerator Gas Valve
17W11624931 Whirlpool Refrigerator Overload
18W10282061 Whirlpool Tape
19Strap
20WPW10534030 Whirlpool Refrigerator Gas Valve
21W10615506 Whirlpool Refrigerator Water Pan
22W11613295 Whirlpool Condenser Motor
23W10843121 Whirlpool Refrigerator Tube
24WP2313624 Whirlpool Refrigerator Condenser
25W10165274 Whirlpool Dishwasher Screw
26WP489128 Whirlpool Refrigerator Screw
272217397 Whirlpool Foam Pad
28WP2217224 Whirlpool Refrigerator Start Relay
29CLIP, WIRING
302217446 Whirlpool Refrigerator Base Condenser
31WP8281196 Whirlpool Screw
32W11086824 Whirlpool Refrigerator Wire Jumper
33CLIP
34WP2262071 Whirlpool Wire Tie
35W11456069 Whirlpool Refrigerator Clamp
