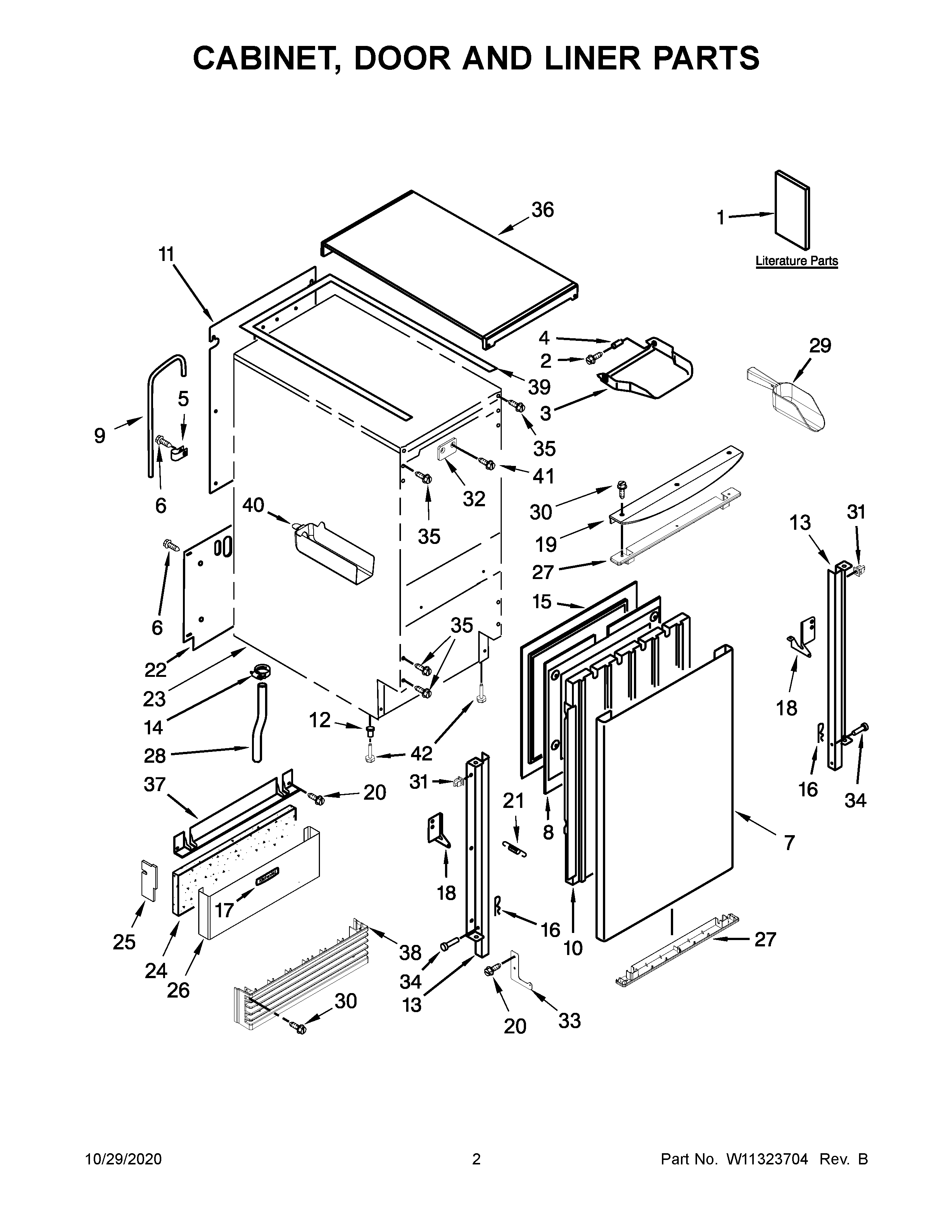

KUID508HBL00 02 – CABINET, DOOR AND LINER PARTS

KUID508HBL00 02 – CABINET, DOOR AND LINER PARTS

Written by

in

KUID508HBL00 02 – CABINET, DOOR AND LINER PARTS

Products

Position	Product
1B	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
1A	TECH SHEET
2	WP3400886 Whirlpool Refrigerator Screw
3	2208354 Whirlpool Refrigerator Inner Door
4	2185678 Whirlpool Refrigerator Spacer
5	W10861184 Whirlpool Refrigerator Clamp
6	WP489442 Whirlpool Refrigerator Screw
7A	2208352B Whirlpool Refrigerator Panel
7	2208352W Whirlpool Refrigerator Panel
8	W10563026 Whirlpool Refrigerator Panel
9	TUBE,AIR VENT
10	INSULATION
11	W10218024 Whirlpool Enclosure
12	3400240 Whirlpool Refrigerator Nut
13	2217466 Whirlpool Bracket
13A	Bracket, Door (Right Side)
14	WP489503 Whirlpool Refrigerator Clamp
15	W11624959 Whirlpool Refrigerator Door Gasket
16	W11545866 Whirlpool Refrigerator Clip
17	W10909682 Whirlpool Nameplate Tag
18	2208425 Whirlpool Refrigerator Hinge
18A	2208426 Whirlpool Refrigerator Hinge
19A	2208440B Whirlpool Refrigerator Handle
19	Handle, Icemaker (White)
20	WP489474 Whirlpool Refrigerator Screw
21	Spring, Hinge
22	W11261690 Whirlpool Refrigerator Unit Cover
23	CABINET (NOT A SERVICEABLE PART)
24	2208384 Whirlpool Refrigerator Insulation
25	2217225 Whirlpool Refrigerator Foam Pad
26A	2208382B Whirlpool Refrigerator Grill Panel
26	2208382W Whirlpool Refrigerator IM Panel
27A	W11413461 Whirlpool Refrigerator Endcap
27	ENDCAP, DOOR (WHITE)
28	WPW10493860 Whirlpool Refrigerator Hose
29	W10508276A Whirlpool Refrigerator Ice Scoop
30A	8534075 Whirlpool Screw
30	8534077 Whirlpool Screw
31	WP692400 Whirlpool Nut
32	2208434 Whirlpool Refrigerator Strike
33	2208487 Whirlpool Bracket
34	Pin, Hinge
35	W11573574 Whirlpool Screw
36A	W10320118 Whirlpool Refrigerator Top Cabinet
36	W10516503 Whirlpool Refrigerator Top Cabinet
37A	2208383B Whirlpool Refrigerator Endcap
37	2208383W Whirlpool Refrigerator End Cap
38	2217206W Whirlpool Refrigerator Grille
38A	WP2217206B Whirlpool Refrigerator Grille
39	2217296 Whirlpool Refrigerator Top Gasket
40	W10557773 Whirlpool Refrigerator Holder
41	8281191 Whirlpool Oven Screw
42	8193716 Whirlpool Leveling Leg
