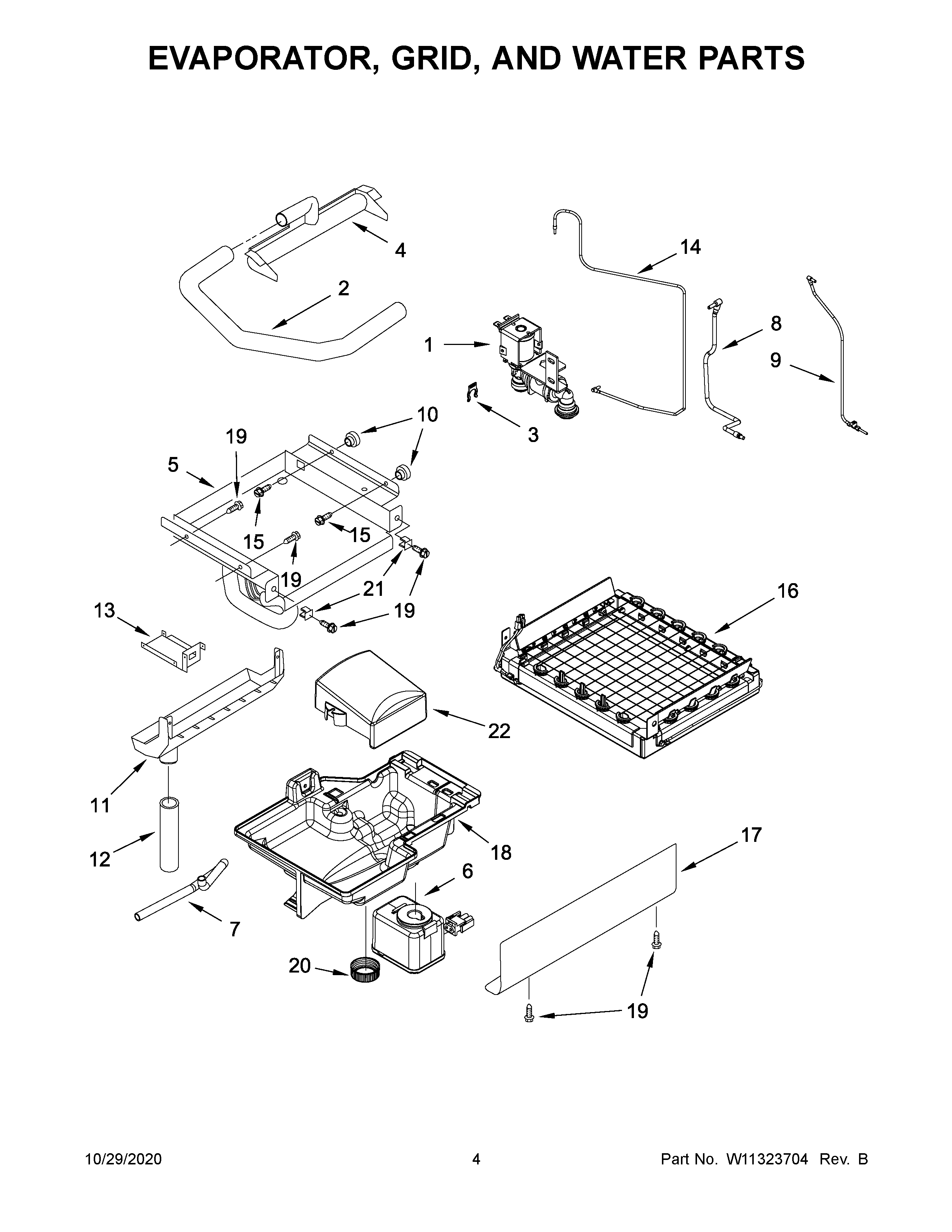

KUID508HBL00 03 – EVAPORATOR, GRID, AND WATER PARTS

KUID508HBL00 03 – EVAPORATOR, GRID, AND WATER PARTS

Written by

in

KUID508HBL00 03 – EVAPORATOR, GRID, AND WATER PARTS

Products

PositionProduct
1VALVE
3W10782423 Whirlpool Refrigerator Ring
4W10863947 Whirlpool Refrigerator Tube
5WPW10218037 Whirlpool Refrigerator Evaporator
6PUMP
7W11097809 Whirlpool Refrigerator Tube
8WPW10678299 Whirlpool Refrigerator Tube
9W11690162 Whirlpool Water Tube
10836667 Whirlpool Refrigerator Spacer
11WP2185625 Whirlpool Refrigerator Water Pan
12W11033204 Whirlpool Refrigerator Hose
132208427 Whirlpool Refrigerator Support
14WPW10678300 Whirlpool Refrigerator Tube
15WP3400886 Whirlpool Refrigerator Screw
16W10919199 Whirlpool Refrigerator Cutter Grid
17W10493888 Whirlpool Refrigerator Panel
18W11614101 Whirlpool Water Pan
19WP3400884 Whirlpool Refrigerator Screw
20W11023835 Whirlpool Refrigerator Drain Cap
21WP3400909 Whirlpool Refrigerator Nut
22W10512292 Whirlpool Refrigerator Cover
