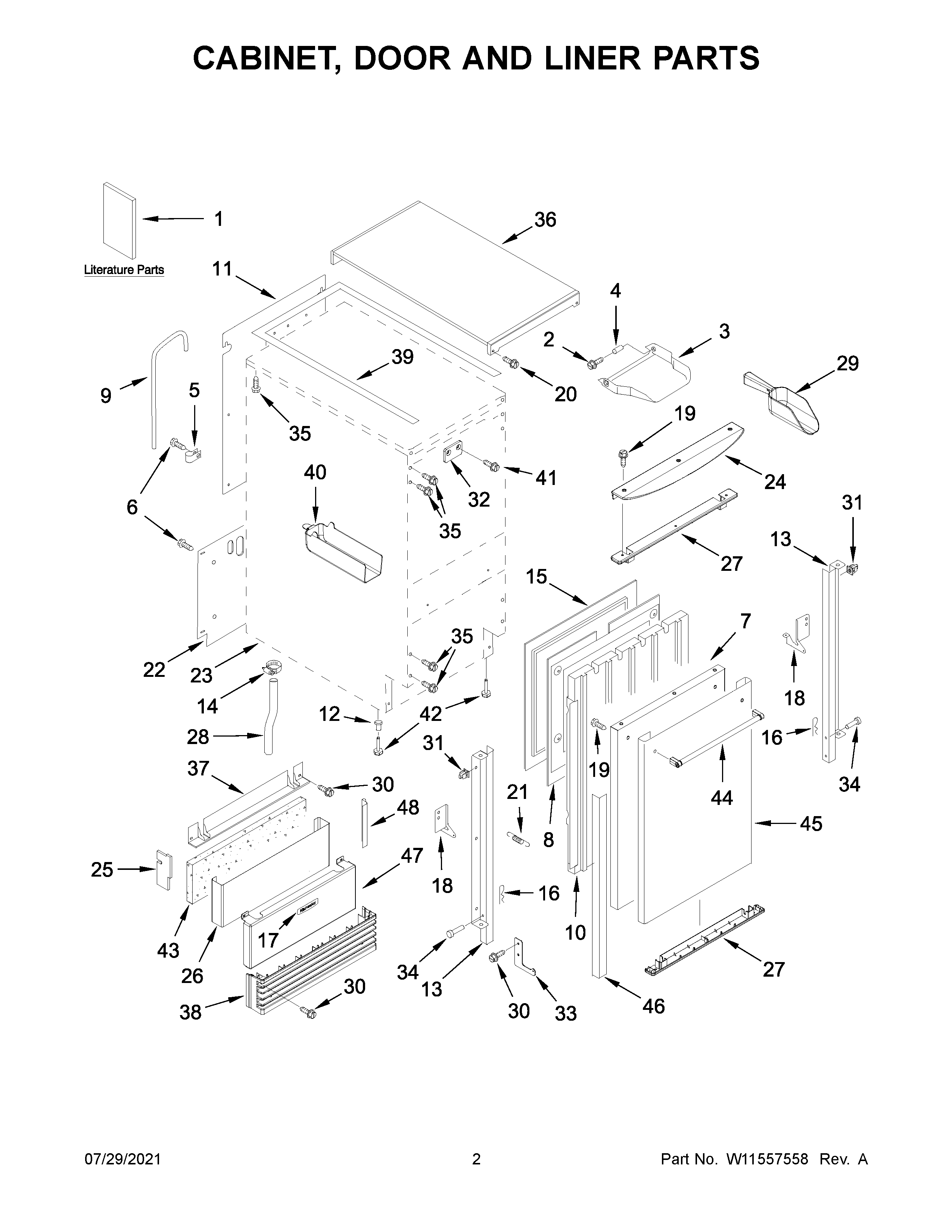

KUID508HPS01 02 – CABINET, DOOR AND LINER PARTS

KUID508HPS01 02 – CABINET, DOOR AND LINER PARTS

Written by

in

KUID508HPS01 02 – CABINET, DOOR AND LINER PARTS

Products

Position	Product
1A	TECH SHEET
1	OWNERS MANUAL
2	WP3400886 Whirlpool Refrigerator Screw
3	2208354 Whirlpool Refrigerator Inner Door
4	2185678 Whirlpool Refrigerator Spacer
5	W11316608 Whirlpool Clip Assembly
6	WP489442 Whirlpool Refrigerator Screw
7	2208352B Whirlpool Refrigerator Panel
8	W10563026 Whirlpool Refrigerator Panel
9	TUBE,AIR VENT
10	INSULATION
11	W10218024 Whirlpool Enclosure
12	3400240 Whirlpool Refrigerator Nut
13	2217466 Whirlpool Bracket
13A	Bracket, Door (Right Side)
14	W10861184 Whirlpool Refrigerator Clamp
15	W11624959 Whirlpool Refrigerator Door Gasket
16	W11545866 Whirlpool Refrigerator Clip
17	W10909682 Whirlpool Nameplate Tag
18	2208425 Whirlpool Refrigerator Hinge
18A	2208426 Whirlpool Refrigerator Hinge
19	WP3400884 Whirlpool Refrigerator Screw
20	8534075 Whirlpool Screw
21	WP2208570 Whirlpool Refrigerator Spring
22	W11261690 Whirlpool Refrigerator Unit Cover
23	CABINET (NOT A SERVICEABLE PART)
24	WP2208452B Whirlpool Refrigerator Handle
25	2217225 Whirlpool Refrigerator Foam Pad
26	2208382B Whirlpool Refrigerator Grill Panel
27	W11413461 Whirlpool Refrigerator Endcap
28	WPW10493860 Whirlpool Refrigerator Hose
29	W10508276A Whirlpool Refrigerator Ice Scoop
30	WP489474 Whirlpool Refrigerator Screw
31	WP692400 Whirlpool Nut
32	2208434 Whirlpool Refrigerator Strike
33	2208487 Whirlpool Bracket
34	Pin, Hinge
35	W11573574 Whirlpool Screw
36	W10320118 Whirlpool Refrigerator Top Cabinet
37	2208383B Whirlpool Refrigerator Endcap
38	WP2217206B Whirlpool Refrigerator Grille
39	2217296 Whirlpool Refrigerator Top Gasket
40	W10557773 Whirlpool Refrigerator Holder
41	8281191 Whirlpool Oven Screw
42	8193716 Whirlpool Leveling Leg
43	2208384 Whirlpool Refrigerator Insulation
44	W11450233 Whirlpool Refrigerator Handle
45	W11368704 Whirlpool Refrigerator Door Skin
46	2208595B Whirlpool Guard Edge
47	W11296659 Whirlpool Refrigerator Grille Panel
48	2208596B Whirlpool Refrigerator Edge Guard
