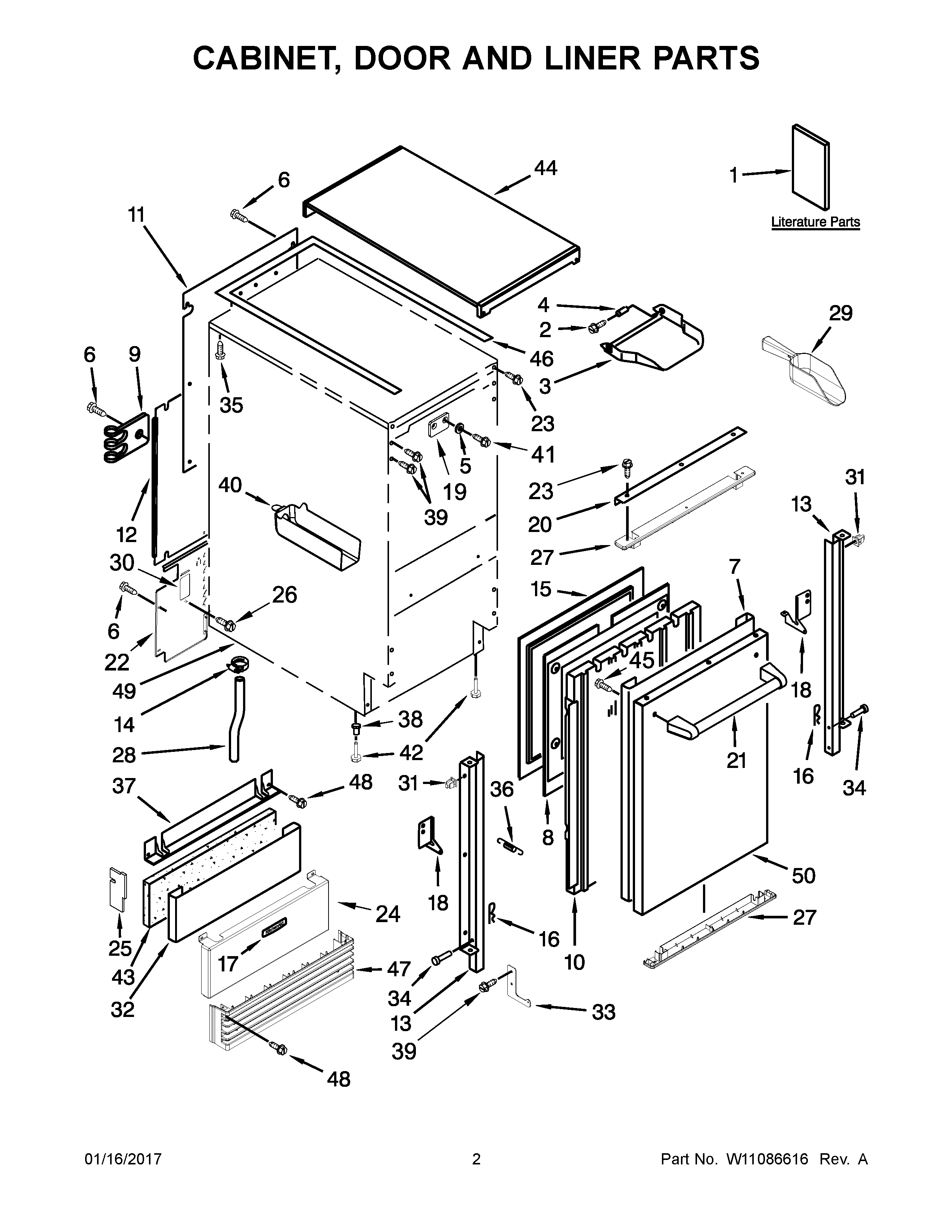

KUIO18NNZS2 02 – CABINET, DOOR AND LINER PARTS

KUIO18NNZS2 02 – CABINET, DOOR AND LINER PARTS

Written by

in

KUIO18NNZS2 02 – CABINET, DOOR AND LINER PARTS

Products

PositionProduct
1USE & CARE GUIDE
1BTECH SHEET
1AINSTALLATION INSTRUCTIONS
2WP3400886 Whirlpool Refrigerator Screw
32208354 Whirlpool Refrigerator Inner Door
42185678 Whirlpool Refrigerator Spacer
5WASHER
6WP489442 Whirlpool Refrigerator Screw
72208352B Whirlpool Refrigerator Panel
8W10515398 Whirlpool Panel
9WP488366 Whirlpool Refrigerator Clamp
102208377 Whirlpool Insulation
11W10218024 Whirlpool Enclosure
12W10200006 Whirlpool Refrigerator Unit Cover
132217466 Whirlpool Bracket
13ABracket, Door (Right Side)
14W10670799 Whirlpool Refrigerator Clamp
15W10136896 Whirlpool Door Gasket
16W11545866 Whirlpool Refrigerator Clip
17NAMEPLATE
182208425 Whirlpool Refrigerator Hinge
18A2208426 Whirlpool Refrigerator Hinge
192208434 Whirlpool Refrigerator Strike
20TRIM, MAGNET (BLACK)
21W10129457 Whirlpool Refrigerator Handle
22PANEL, LOWER
238534081 Whirlpool Screw Assembly
242208594S Whirlpool Refrigerator Grill Panel
252217225 Whirlpool Refrigerator Foam Pad
26WP90767 Whirlpool Screw
27ENDCAP, DOOR (BLACK)
28W10737551 Whirlpool Refrigerator Drain Tube
29W10508276A Whirlpool Refrigerator Ice Scoop
30W11318234 Whirlpool Cover
31WP692400 Whirlpool Nut
322208382B Whirlpool Refrigerator Grill Panel
332208487 Whirlpool Bracket
34Pin, Hinge
35WP250830 Whirlpool Refrigerator Screw
36WP2208570 Whirlpool Refrigerator Spring
37ENDCAP, LOWER PANEL
38NUT, LEG LEVELER
39WP488163 Whirlpool Refrigerator Screw
40W10557773 Whirlpool Refrigerator Holder
418281191 Whirlpool Oven Screw
42LEVELER, LEG
432208384 Whirlpool Refrigerator Insulation
44PANEL, TOP
45WP3400237 Whirlpool Refrigerator Screw
462217296 Whirlpool Refrigerator Top Gasket
47WP2217206B Whirlpool Refrigerator Grille
48WP489474 Whirlpool Refrigerator Screw
49CABINET (NOT A SERVICEABLE PART)
50W10711919 Whirlpool Refrigerator Panel
