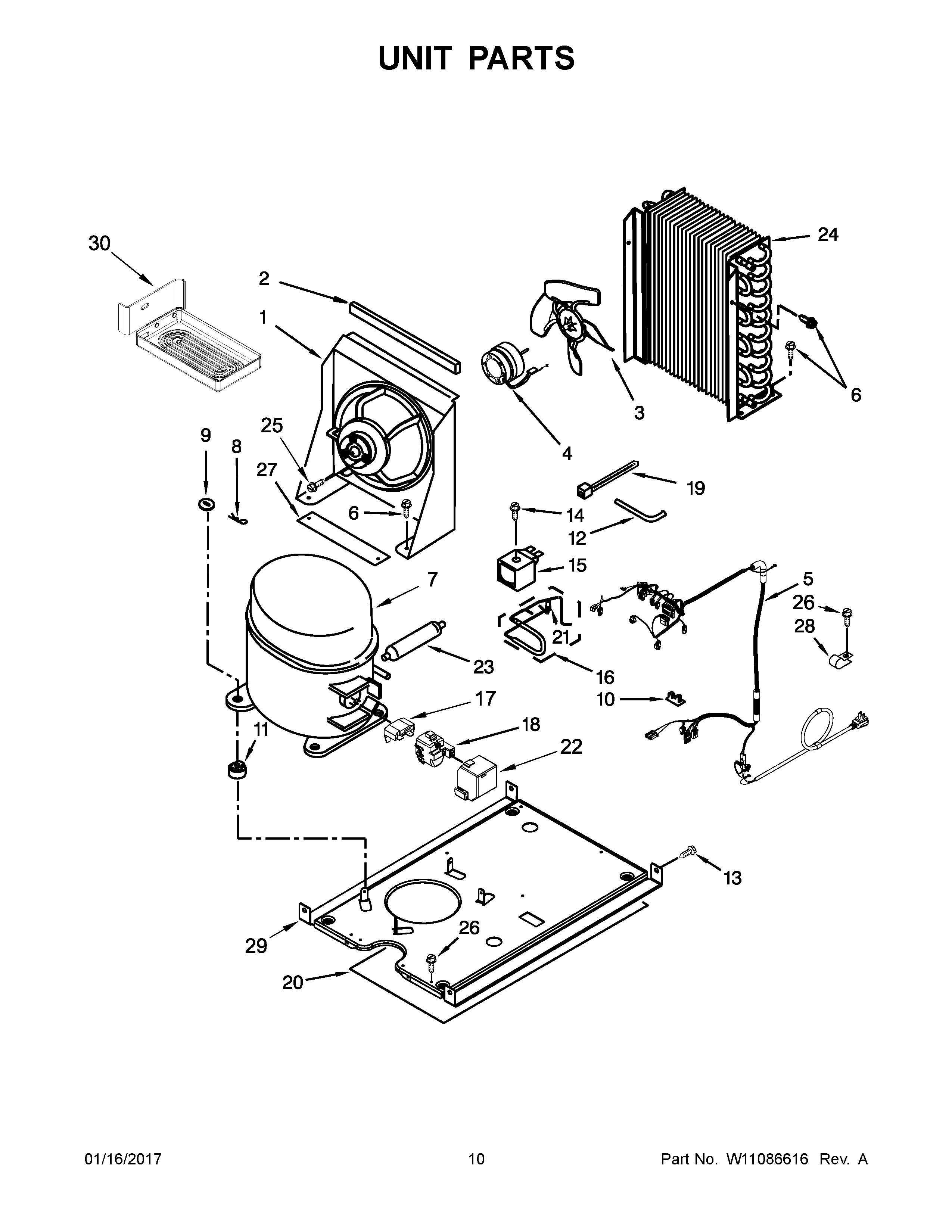

KUIO18NNZS2 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	WP2185532 Whirlpool Refrigerator Bracket
2	2185675 Whirlpool Refrigerator Foam Pad
3	W10200034 Whirlpool Refrigerator Fan Blade
4	W10200032 Whirlpool Refrigerator Condenser Motor
5	W10460857 Whirlpool Refrigerator Harness
6	WP67006908 Whirlpool Refrigerator Screw
7	W11735041 Whirlpool Compressor
8	A201435 Whirlpool Refrigerator Clip
9	A201441 Whirlpool Refrigerator Shim
10	CLIP, WIRING
11	2185965 Whirlpool Refrigerator Grommet
12	W10528572 Whirlpool Refrigerator Tube
13	WP489483 Whirlpool Screw
14	SCREW
15	WPW10206473 Whirlpool Refrigerator Coil Solenoid
16	W10534026 Whirlpool Refrigerator Gas Valve
17	W11624931 Whirlpool Refrigerator Overload
18	WP2217224 Whirlpool Refrigerator Start Relay
19	WP2262071 Whirlpool Wire Tie
20	W10282061 Whirlpool Tape
21	WP759113 Whirlpool Refrigerator Gas Valve
22	WP2162358 Whirlpool Refrigerator Terminal Cover
23	W10843121 Whirlpool Refrigerator Tube
24	W10129494 Whirlpool Refrigerator Condenser
25	WP8281196 Whirlpool Screw
26	WP489128 Whirlpool Refrigerator Screw
27	2217397 Whirlpool Foam Pad
28	CLAMP, POWER CORD
29	BASE, UNIT
30	W10615506 Whirlpool Refrigerator Water Pan
