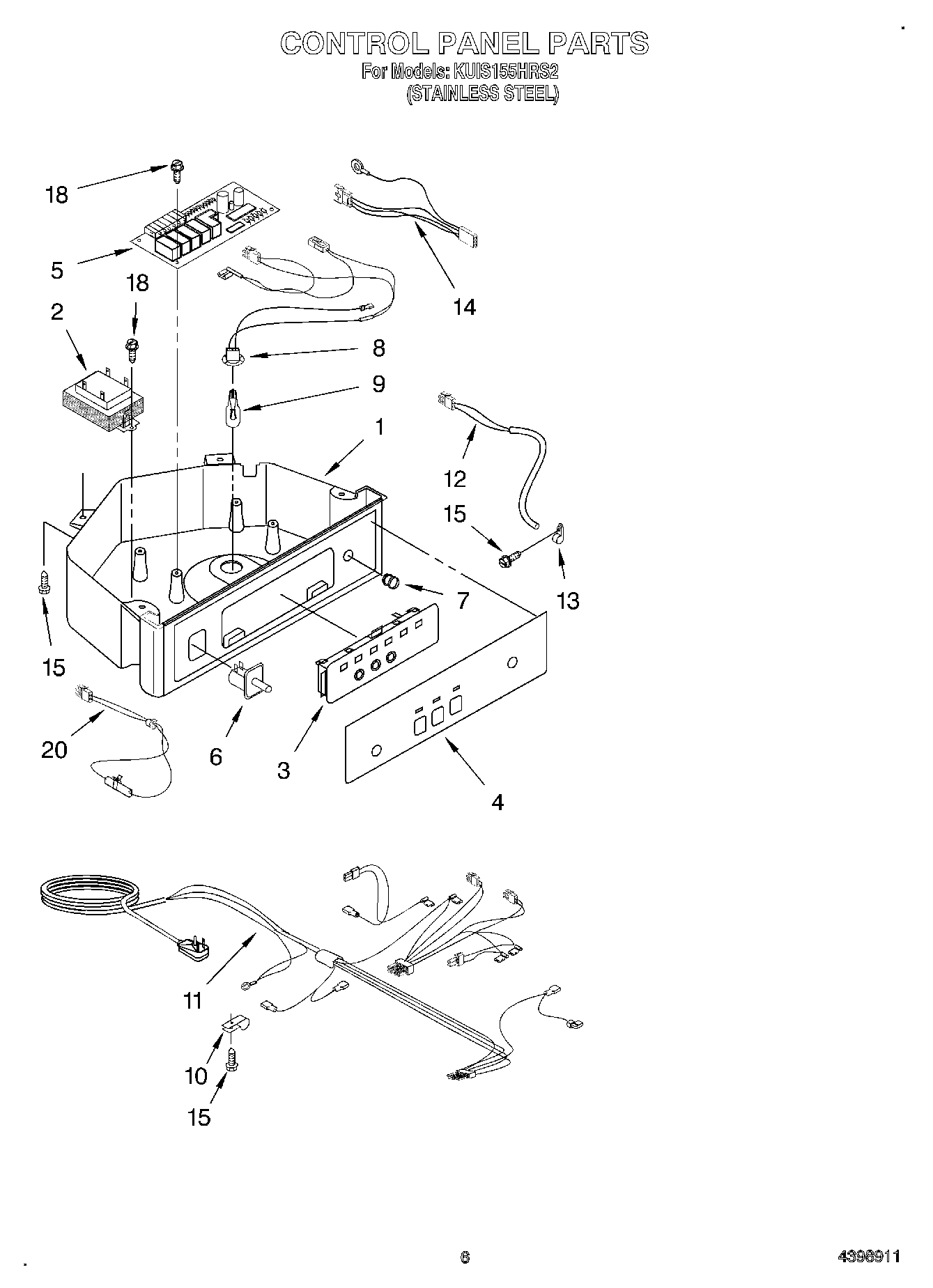

KUIS155HRS2 04 – CONTROL PANEL

Products

Position	Product
1	Box, Control
2	Transformer
3	Assembly, Switch (ALSO ORDER 4)
4	Overlay
5	P.C. Board
6	WP2149705 Whirlpool Refrigerator Door Switch
7	Lens, LED
8	Wiring Harness Grid/ Light
9	Bulb, Light (Pkg. Of 2)
10	W11456069 Whirlpool Refrigerator Clamp
11	Wiring Harness, Complete Unit (Includes Power Cord)
12	WPW10503764 Whirlpool Refrigerator Thermistor
13	2185825 Whirlpool Refrigerator Clamp
14	Wiring Harness, Main to Pump,
15	WP3400884 Whirlpool Refrigerator Screw
18	WP489443 Whirlpool Refrigerator Screw
20	Thermister, Ice Control
