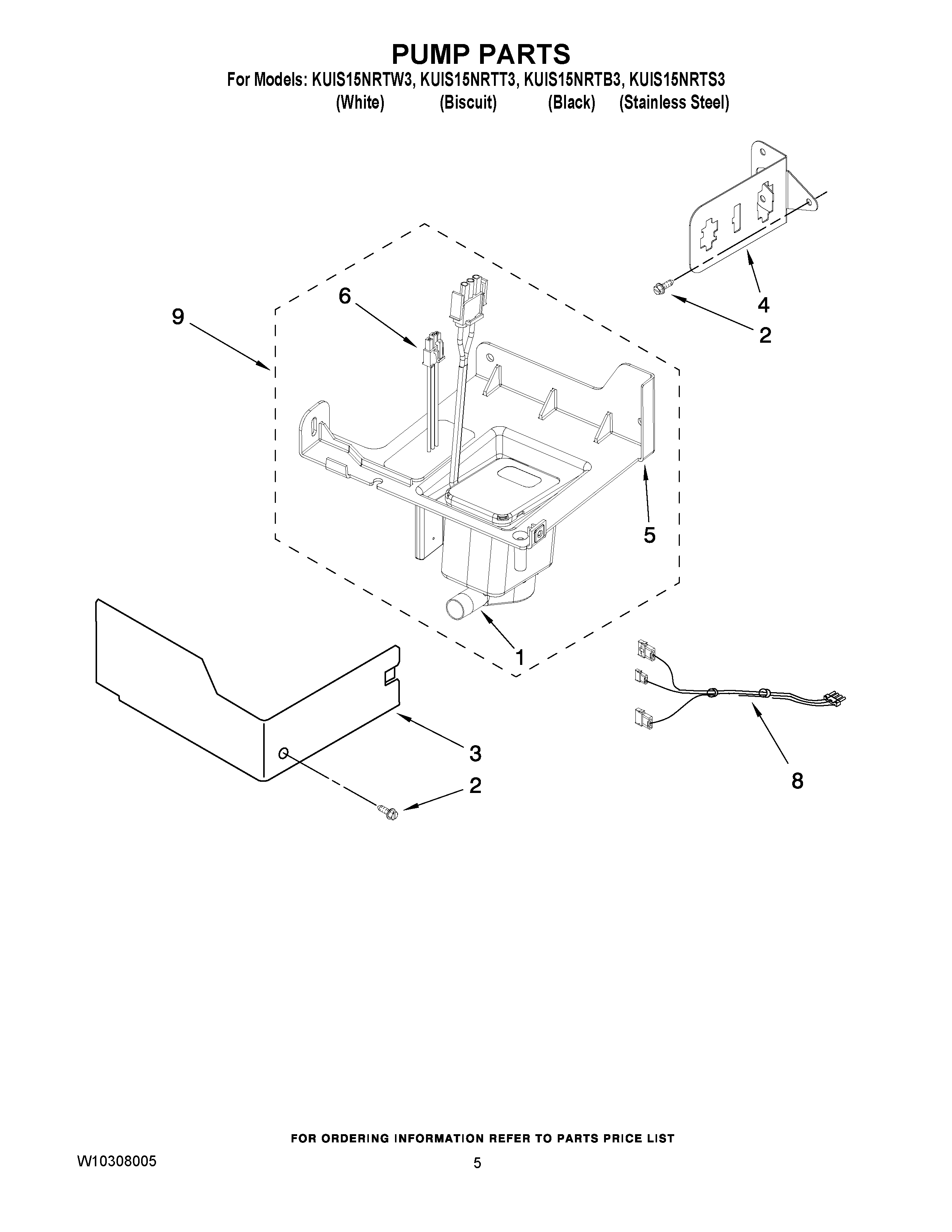

KUIS15NRTB3 03 – PUMP PARTS

Products

Position	Product
1	W11566405 Whirlpool Refrigerator Pump
2	WP3400884 Whirlpool Refrigerator Screw
3	2185677 Whirlpool Refrigerator Pump Cover
4	2313844 Whirlpool Refrigerator Bracket
5	W11204894 Whirlpool Refrigerator Bracket
6	Sensor-Water Level
8	WP2310092 Whirlpool Refrigerator Pump Harness
9	Pump Assembly
