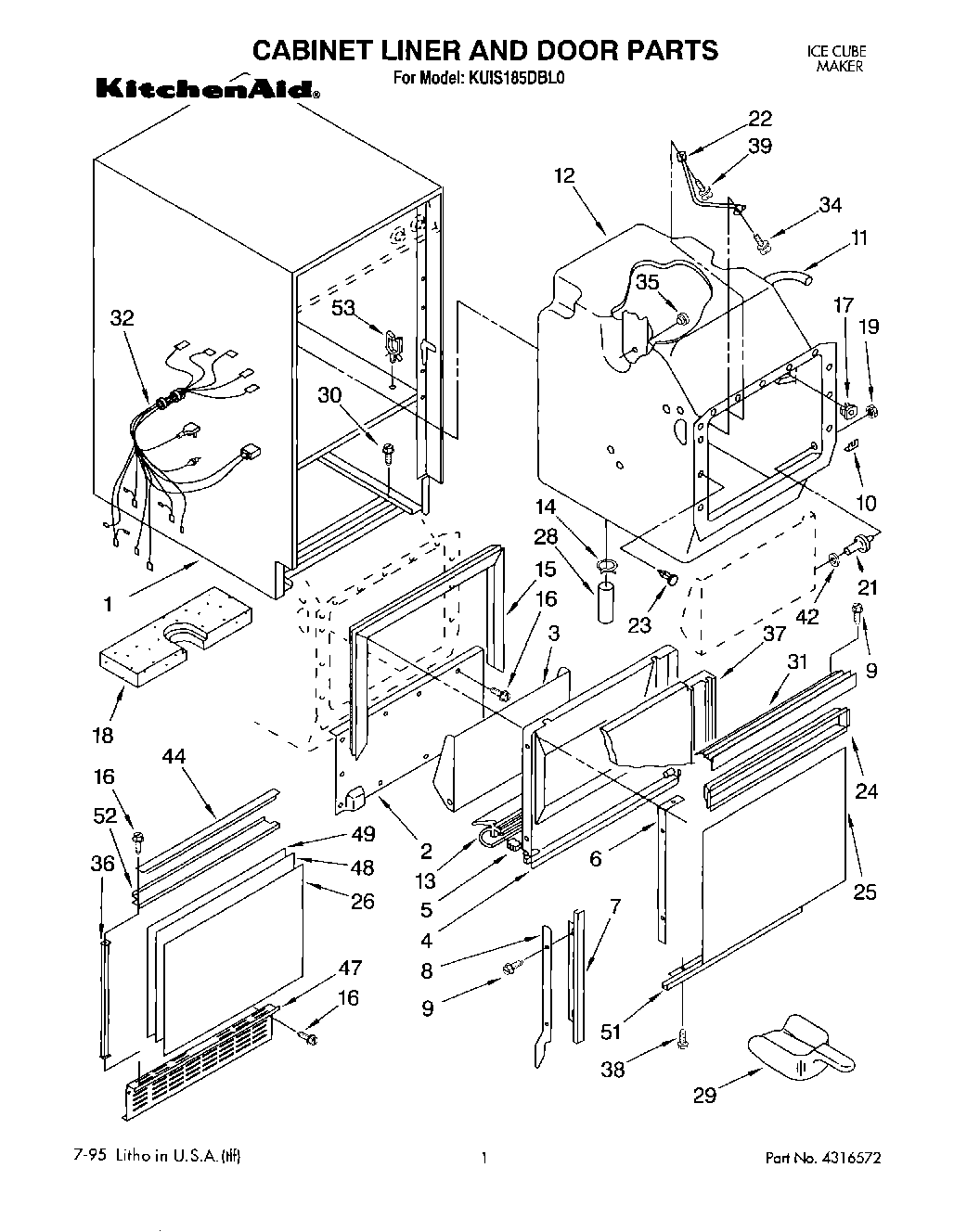

KUIS185DBL0 01 – CABINET LINER AND DOOR, LITERATURE

Products

Position	Product
	WPL LIT2175675
	WPL LIT2175674
	Label, Wiring
	Tech Sheet
1	Shell
2	WPL 2175619
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (2)
8	Rail, Door (Right Side)
8	Rail, Door (Left Side)
9	Screw, No.8-32 1/2 (6)
10	Washer, Clip
11	WPL 759213
12	Liner (Includes No.s 5, 6, 7, 11, 14)
13	WPL 2172898
14	Clamp, Hose (2)
15	Gasket, Liner
16	WP488729 Whirlpool Refrigerator Door Screw
17	Grommet, Mtg (2)
18	Insul/Bottom Foam
19	Nut, Hex 1/4 (2)
21	Stud, Inner Door Mtg. (2)
22	Thermostat, Well Bin
23	Clip, Linner (12)
24	Pocket, Handle
25	Panel, Door (White & Black)
26	Panel, Grille Cabinet Front
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
31	Handle, Recessed
32	WPL 2174781
34	Thumbscrew 10-32 x 5/8
35	Nut, Well (3)
36	Trim, Side (2)
37	Insulation, Door
38	Screw, No.8-32 x 1/2
39	Screw, 10 x 1/2
42	Washer (2)
44	Trim, Top And Bottom
47	Grille, Panel
48	Filler, Grille Panel
49	Panel, Inner Grille
51	Trim, Door (Lower)
52	WPL 2175604
53	VALVE, ACCESS (5/8“)
53	Retainer, Wire (2)
53	212643 Whirlpool Refrigerator Permagum Sealer
53	876370 Whirlpool Refrigerator Insulation
53	WP503695 Whirlpool Refrigerator Sealer
53	978026 Whirlpool Refrigerator Primary Valve
53	978027 Whirlpool Refrigerator Primary Valve
53	WP505587 Whirlpool Refrigerator Sealer
53	978030 Whirlpool Refrigerator Valve
53	WP978025 Whirlpool Refrigerator Valve
53	VALVE, ACCESS (1/2“)
53	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
53	WPL 799351
