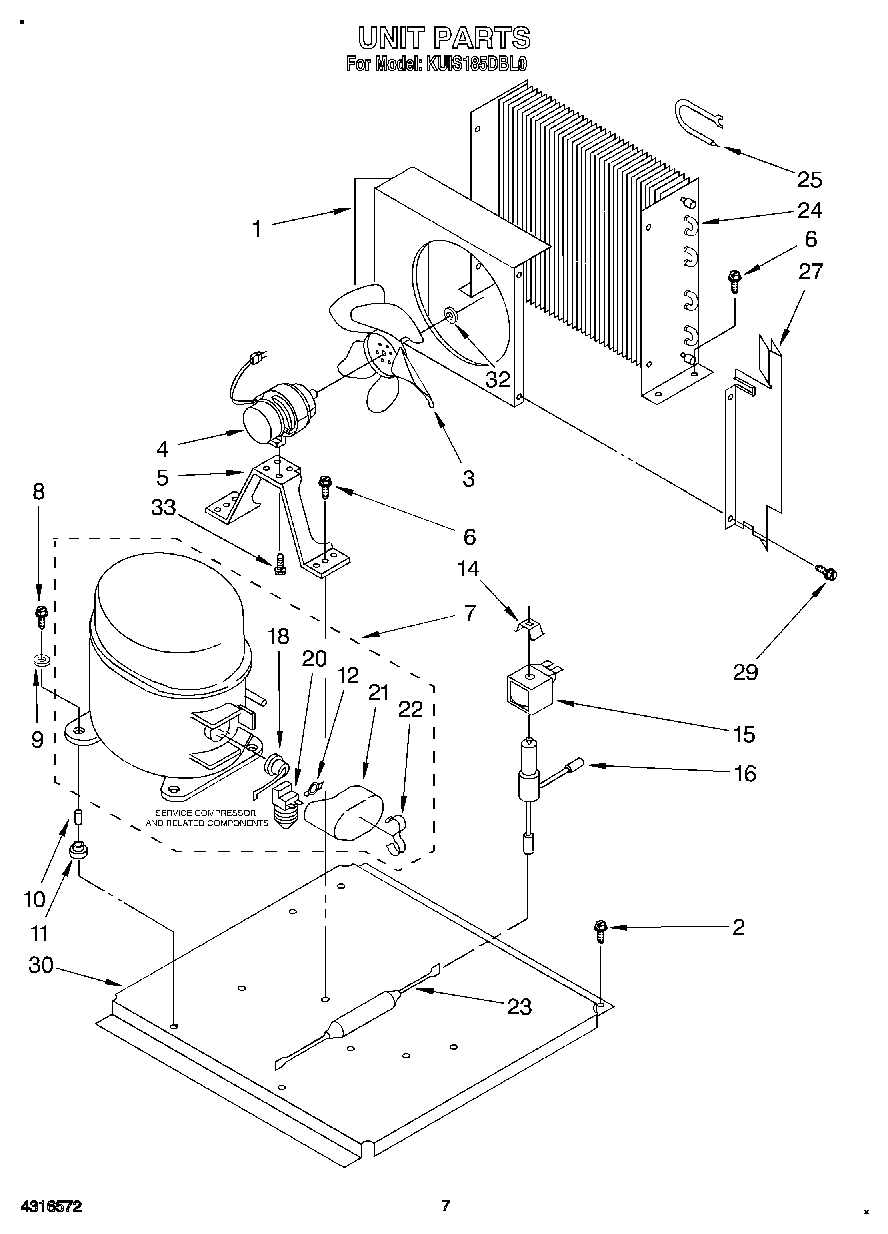

KUIS185DBL0 05 – UNIT

Products

Position	Product
1	Shroud, Condenser
2	Screw, No.10-32 x 3/8
3	978655 Whirlpool Refrigerator Fan Blade
4	Motor, Fan (Includes No. 23)
5	Bracket, Fan Motor
6	Screw, 1/4-20 x 1/2
7	Compressor, Service Kit
8	Screw, 5/16-18 x 1-1/4 (4)
9	Washer, Flat (4)
10	Sleeve (4)
11	Grommet (4)
12	Spring, Overload
14	Retainer, Solenoid Coil
15	Coil, Solenoid
16	Valve, Solenoid Coil
18	Overload
18	Overload
20	Relay, Start
20	Relay, Start
21	Cover
21	Cover, Terminal
22	Strap
22	Cover, Spring
23	W10843121 Whirlpool Refrigerator Tube
24	Condenser
25	Accumulator
27	Deflector, Air
29	WP90767 Whirlpool Screw
30	Base, Unit
32	Nut, Hex 1/4-20
33	Screw, 8-36 x 1/2 (4)
