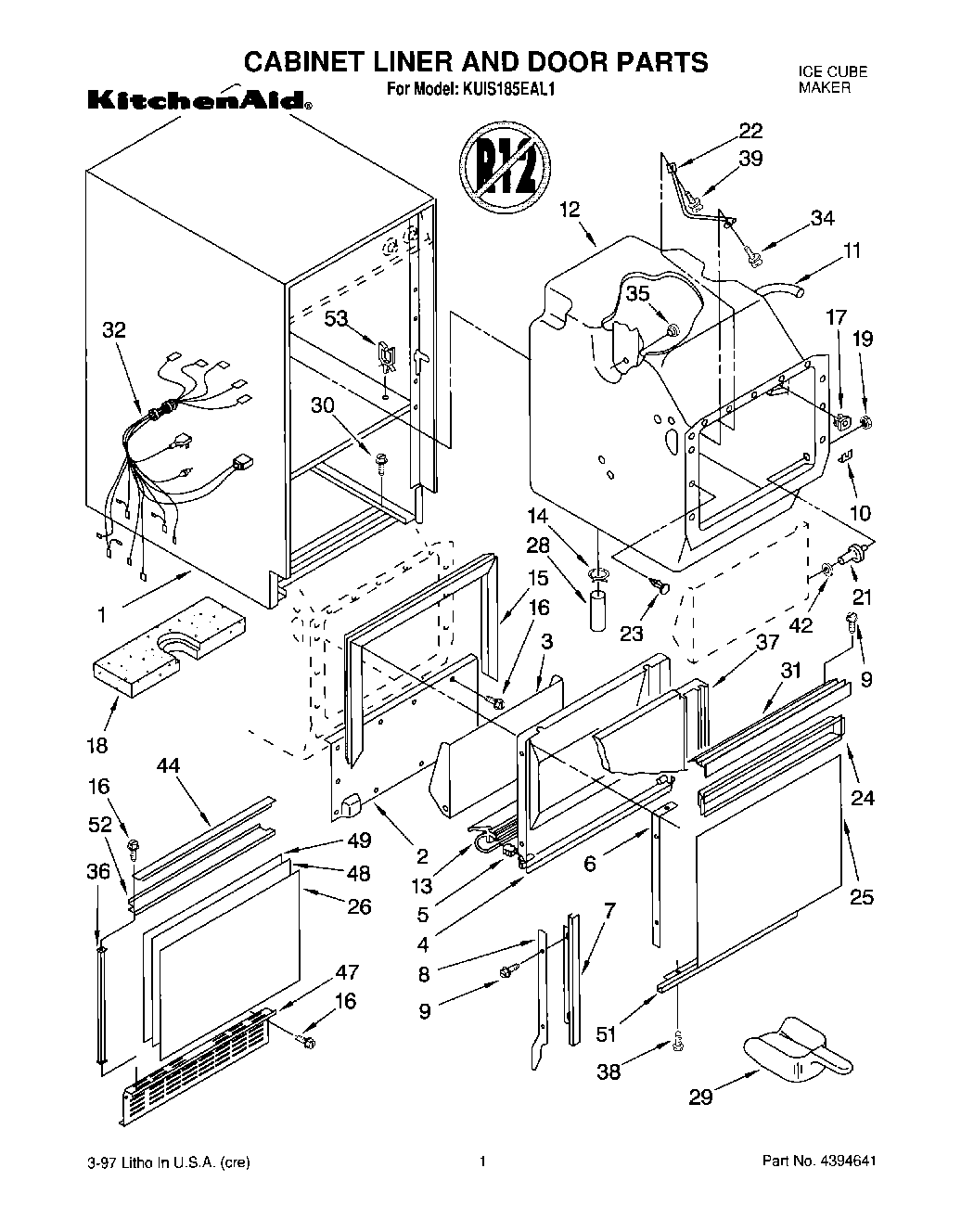

KUIS185EAL1 01 – CABINET LINER AND DOOR, LITERATURE

Products

Position	Product
	WPL LIT2180830
	WPL LIT2175674
	WPL LIT2175675
1	WPL 2175698
2	WPL 2175619
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (Side) (2)
8	Rail, Door (Left Side)
8	Rail, Door (Right Side)
9	Screw, No.8-32 1/2 (6)
10	Washer, Clip
11	WPL 759213
12	Liner (Includes Illus. 10, 11, 17, 19, 21 & 35)
13	WPL 2172898
14	Clamp, Hose (2)
15	Gasket, Liner
16	WP488729 Whirlpool Refrigerator Door Screw
17	Grommet, Mtg (2)
18	Insul/Bottom Foam
19	Nut, Hex 1/4 (2)
21	Stud, Inner Door Mtg. (2)
22	Thermostat, Well Bin
23	Clip, Linner (12)
24	Pocket, Handle
25	WPL 758745
26	Grille, Cabinet Front
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
31	Handle, Recessed
32	WPL 2174781
34	Thumbscrew 10-32 x 5/8
35	Nut, Well (3)
36	Trim, Front Panel (Side) (2)
37	Insulation, Door
38	Screw, No.8-32 x 1/2
39	Screw, 10 x 1/2
42	Washer (2)
44	Trim, Front Panel (Top and Bottom)
47	Grill, Front
48	Filler, Grille Panel
49	Panel, Inner Grille
51	Trim, Door (Lower)
52	WPL 2175604
53	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
53	212643 Whirlpool Refrigerator Permagum Sealer
53	876370 Whirlpool Refrigerator Insulation
53	WP503695 Whirlpool Refrigerator Sealer
53	978027 Whirlpool Refrigerator Primary Valve
53	978026 Whirlpool Refrigerator Primary Valve
53	WP505587 Whirlpool Refrigerator Sealer
53	VALVE, ACCESS (5/8“)
53	WPL 489482
53	WP978025 Whirlpool Refrigerator Valve
53	VALVE, ACCESS (1/2“)
53	978030 Whirlpool Refrigerator Valve
