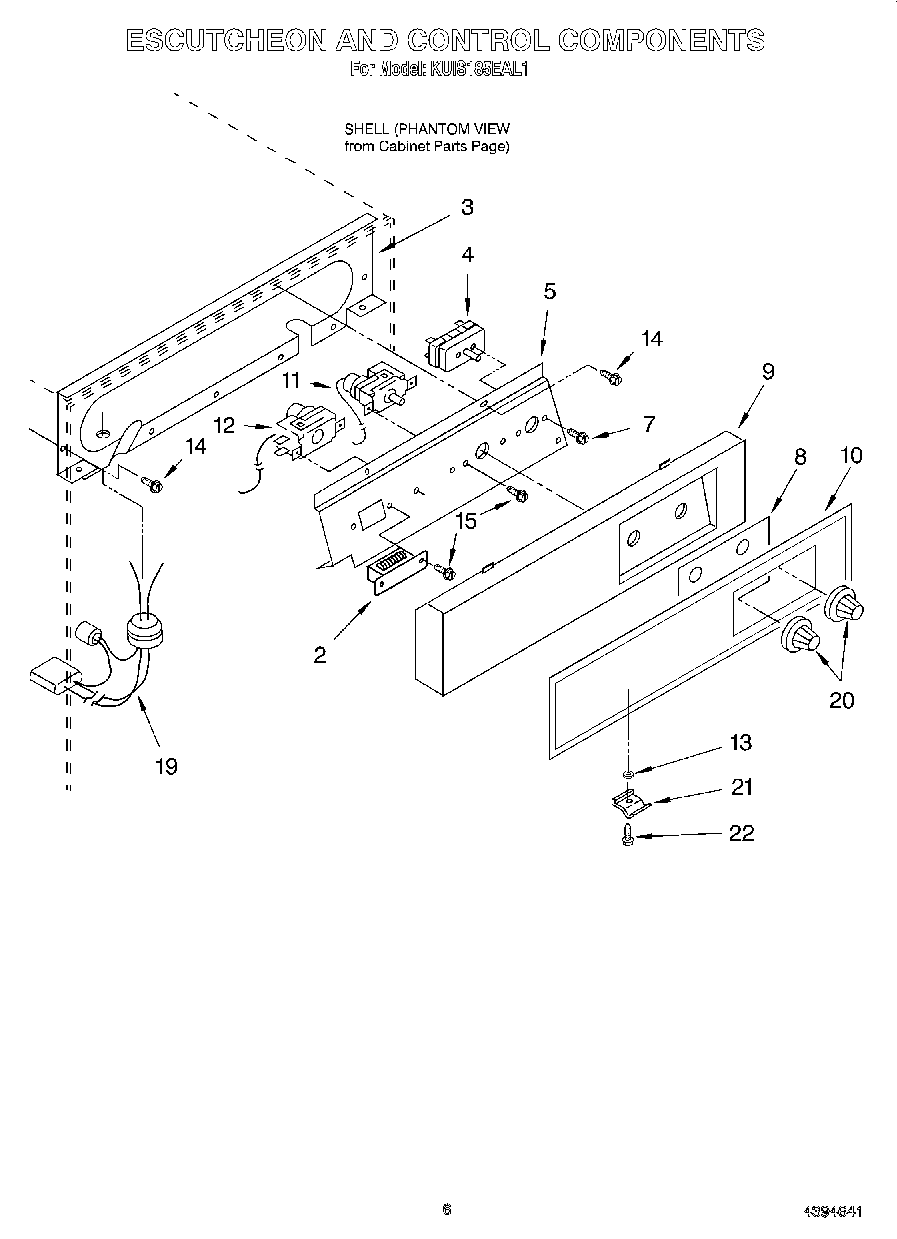

KUIS185EAL1 04 – ESCUTCHEON AND CONTROL COMPONENTSadmin2025-04-26T11:42:46+00:00KUIS185EAL1 04 – ESCUTCHEON AND CONTROL COMPONENTS
Products
| Position | Product |
|---|
| 2 | WPL 2165483 |
| 3 | Escutcheon, Panel |
| 4 | Switch, Service |
| 5 | WPL 2172846 |
| 7 | WP486579 Whirlpool Air Conditioner Screw |
| 8 | Decal, Control Panel |
| 9 | Escutcheon |
| 10 | Decal, Escutcheon |
| 11 | Thermostat, Ice-Control |
| 12 | Thermostat, Ice-Bin |
| 13 | Washer, Latch |
| 14 | WP488729 Whirlpool Refrigerator Door Screw |
| 15 | Screw, 8-32 x 3/8 (2) |
| 19 | Harness, Wiring (Cutter Grid) |
| 20 | Knob |
| 21 | Latch |
| 22 | Screw, 8-32 x 1/2 |
