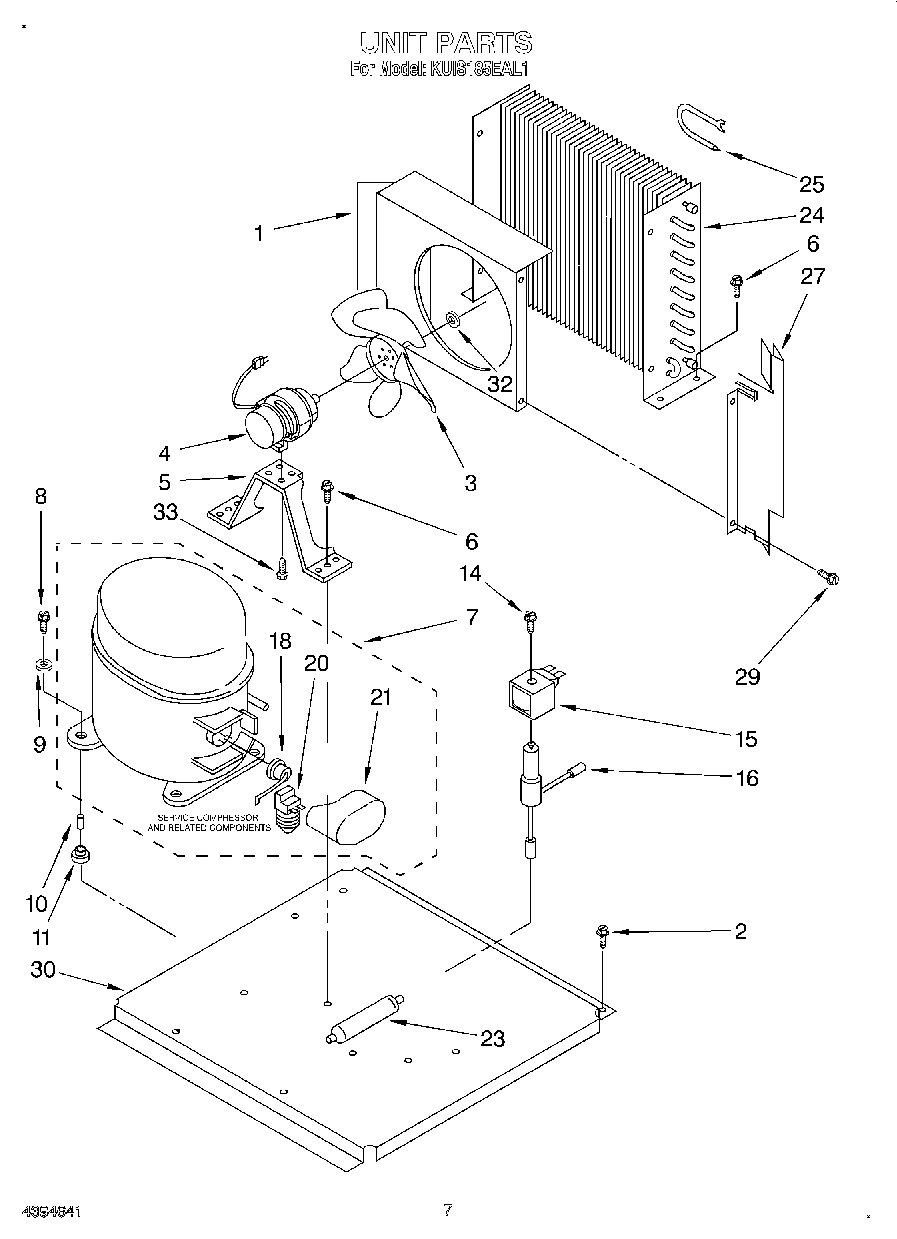

| 1 | WPL 2180948 |
| 2 | Screw, No.10-32 x 3/8 |
| 3 | 978655 Whirlpool Refrigerator Fan Blade |
| 4 | Motor, Fan (Includes No. 23) |
| 5 | Bracket, Fan Motor |
| 6 | Screw, 1/4-20 x 1/2 |
| 7 | W10309988 Whirlpool Refrigerator Compressor |
| 8 | Screw, 5/16-18 x 1-1/4 (4) |
| 9 | Washer, Flat (4) |
| 10 | Sleeve (4) |
| 11 | Grommet (4) |
| 14 | SCREW |
| 15 | Coil, Solenoid |
| 16 | WP759113 Whirlpool Refrigerator Gas Valve |
| 18 | WPL 2183404 |
| 20 | WPL 2183410 |
| 21 | WP2162358 Whirlpool Refrigerator Terminal Cover |
| 23 | W10843121 Whirlpool Refrigerator Tube |
| 24 | W10139458 Whirlpool Refrigerator Condenser |
| 25 | WPL 2180807 |
| 27 | Deflector, Air |
| 29 | WP90767 Whirlpool Screw |
| 30 | WPL 2180938 |
| 32 | Nut, Hex 1/4-20 |
| 33 | Screw, 8-36 x 1/2 (4) |
