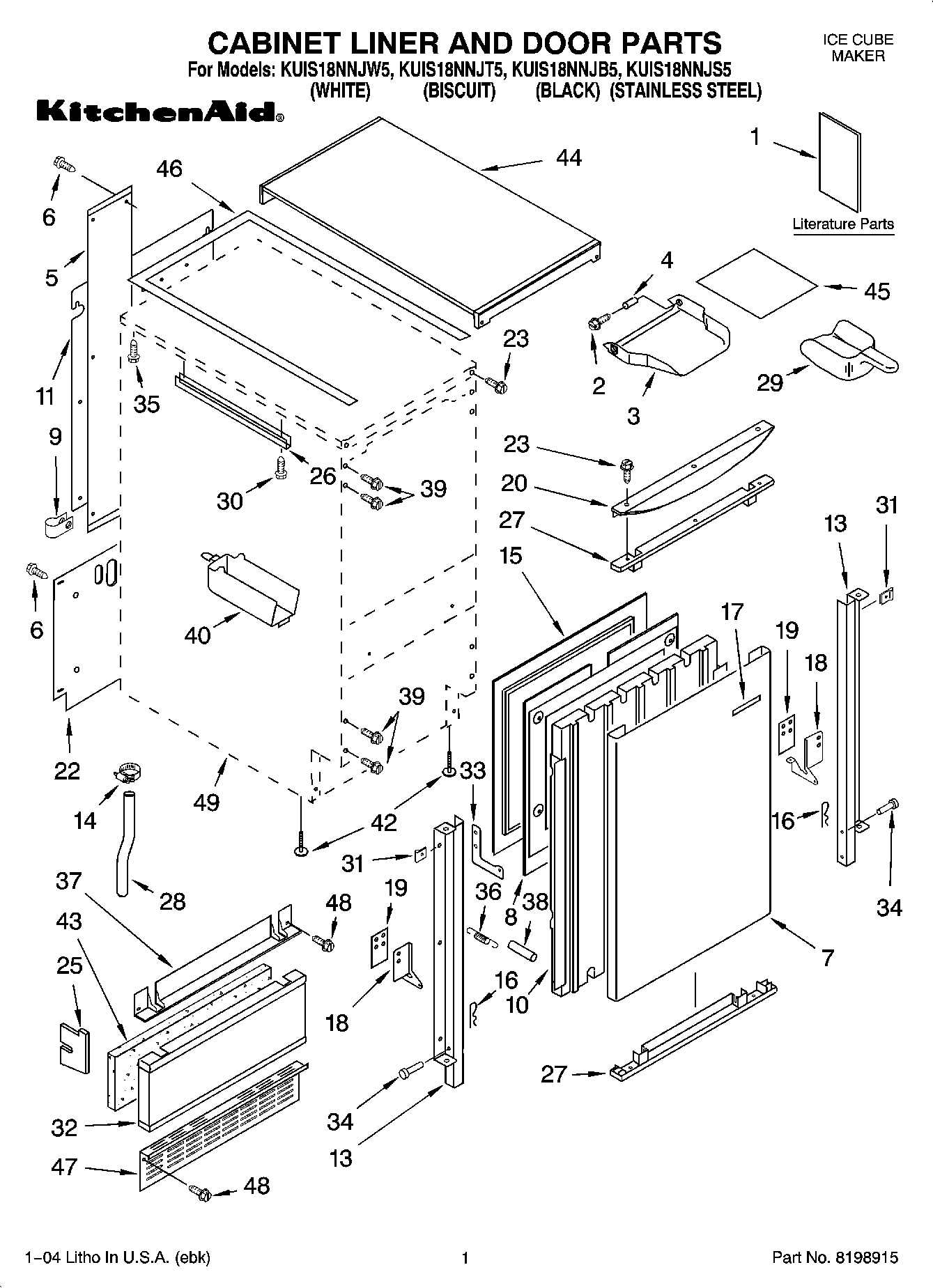

KUIS18NNJT5 01 – CABINET LINER AND DOOR PARTS

KUIS18NNJT5 01 – CABINET LINER AND DOOR PARTS

Written by

in

KUIS18NNJT5 01 – CABINET LINER AND DOOR PARTS

Products

Position	Product
1	Literature Parts (Service & Wiring Sheet)
1	USE & CARE GUIDE
2	WP3400886 Whirlpool Refrigerator Screw
3	2208354 Whirlpool Refrigerator Inner Door
4	2185678 Whirlpool Refrigerator Spacer
5	2217394 Whirlpool Refrigerator Wire Cover
6	WP489442 Whirlpool Refrigerator Screw
7	Panel, Exterior (Biscuit)
7	2208352W Whirlpool Refrigerator Panel
7	Panel, Exterior (Stainless Steel)
7	2208352B Whirlpool Refrigerator Panel
8	Panel, Interior
9	WP488366 Whirlpool Refrigerator Clamp
10	2208377 Whirlpool Insulation
11	W10218024 Whirlpool Enclosure
13	2217466 Whirlpool Bracket
13	Bracket, Door (Right Side)
14	WP489503 Whirlpool Refrigerator Clamp
15	W11624959 Whirlpool Refrigerator Door Gasket
16	Clip
17	Nameplate (Black)
17	Nameplate (Biscuit)
17	Nameplate (White)
18	2208426 Whirlpool Refrigerator Hinge
18	2208425 Whirlpool Refrigerator Hinge
19	Shim, Hinge
20	2208440B Whirlpool Refrigerator Handle
20	Handle, Icemaker (White)
20	Handle, Icemaker (Biscuit)
22	WPW10136200 Whirlpool Refrigerator Unit Cover
23	Screw, Handle
23	SCREW, HANDLE (BISCUIT)
23	8281188 Whirlpool Refrigerator M Screw
25	2217225 Whirlpool Refrigerator Foam Pad
26	2185691 Whirlpool Refrigerator Channel
27	W11413461 Whirlpool Refrigerator Endcap
27	Endcap, Door (Biscuit)
27	2208350W Whirlpool Endcap
28	2208453 Whirlpool Refrigerator Tube
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	WP3400884 Whirlpool Refrigerator Screw
31	CLIP
32	2208382B Whirlpool Refrigerator Grill Panel
32	2208382W Whirlpool Refrigerator IM Panel
32	Panel, Wrap Lower (Stainless Steel)
33	2208487 Whirlpool Bracket
34	Pin, Hinge
35	WP250830 Whirlpool Refrigerator Screw
36	Spring, Hinge
37	Endcap, Panel (Biscuit)
37	2208383W Whirlpool Refrigerator End Cap
37	2208383B Whirlpool Refrigerator Endcap
38	Dampener, Sp
39	WP999367 Whirlpool Refrigerator Screw
40	Holder, Scoop
42	8193716 Whirlpool Leveling Leg
43	2208384 Whirlpool Refrigerator Insulation
44	Top
44	WPL 2929701W
44	WPL 2929701T
45	2185690 Whirlpool Shield Assembly
46	2217296 Whirlpool Refrigerator Top Gasket
47	WP2217206B Whirlpool Refrigerator Grille
47	2217206W Whirlpool Refrigerator Grille
47	WPL 2217206T
48	WP489474 Whirlpool Refrigerator Screw
49	212643 Whirlpool Refrigerator Permagum Sealer
49	978030 Whirlpool Refrigerator Valve
49	W11179302 Whirlpool Ice Machine Cleaner
49	WPL ARI116955A
49	WP505587 Whirlpool Refrigerator Sealer
49	876370 Whirlpool Refrigerator Insulation
49	WP503695 Whirlpool Refrigerator Sealer
49	VALVE, ACCESS (5/8“)
49	978026 Whirlpool Refrigerator Primary Valve
49	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
49	VALVE, ACCESS (1/2“)
49	978027 Whirlpool Refrigerator Primary Valve
49	WP978025 Whirlpool Refrigerator Valve
49	WPL ARI116956A
