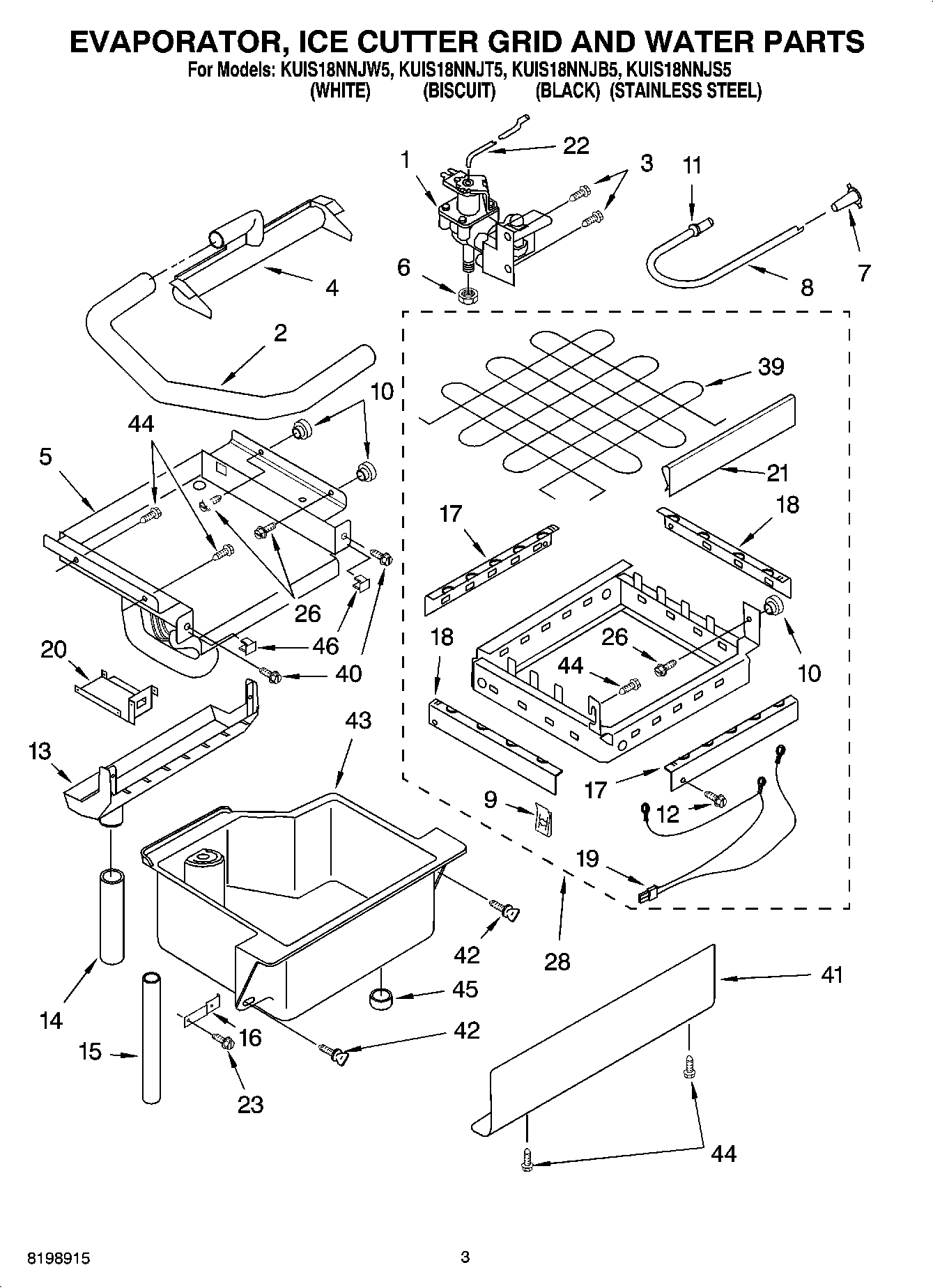

KUIS18NNJT5 02 – EVAPORATOR ICE CUTTER GRID AND WATER PARTS

Products

Position	Product
1	W10801996 Whirlpool Water Inlet Valve
3	W11693756 Whirlpool Screw Assembly
4	W10863947 Whirlpool Refrigerator Tube
5	WPW10218037 Whirlpool Refrigerator Evaporator
6	WP627018 Whirlpool Refrigerator Nut
7	4387491 Whirlpool Refrigerator Insert
8	W10823511 Whirlpool Refrigerator Water Tube
9	488660 Whirlpool Refrigerator Nut
10	836667 Whirlpool Refrigerator Spacer
11	Fastener, Pushnut
12	WP489443 Whirlpool Refrigerator Screw
13	WP2185625 Whirlpool Refrigerator Water Pan
14	WP2185626 Whirlpool Refrigerator Hose
15	WP2313890 Whirlpool Overflow Hose
16	Support, Reservoir Bracket
17	Bracket, Front and Rear
18	8201791 Whirlpool Air Conditioner Spacer
19	2185681 Whirlpool Refrigerator Harness
20	2208427 Whirlpool Refrigerator Support
21	Guide, Ice Grid
22	Tube
26	WP3400886 Whirlpool Refrigerator Screw
28	WP2313637 Whirlpool Cutting Grid Assembly
39	GRID
40	WP90767 Whirlpool Screw
41	2208365 Whirlpool Refrigerator Panel
42	Thumbscrew
43	Reservoir, Water
44	WP3400884 Whirlpool Refrigerator Screw
45	WP2185696 Whirlpool Cap
46	WP3400909 Whirlpool Refrigerator Nut
