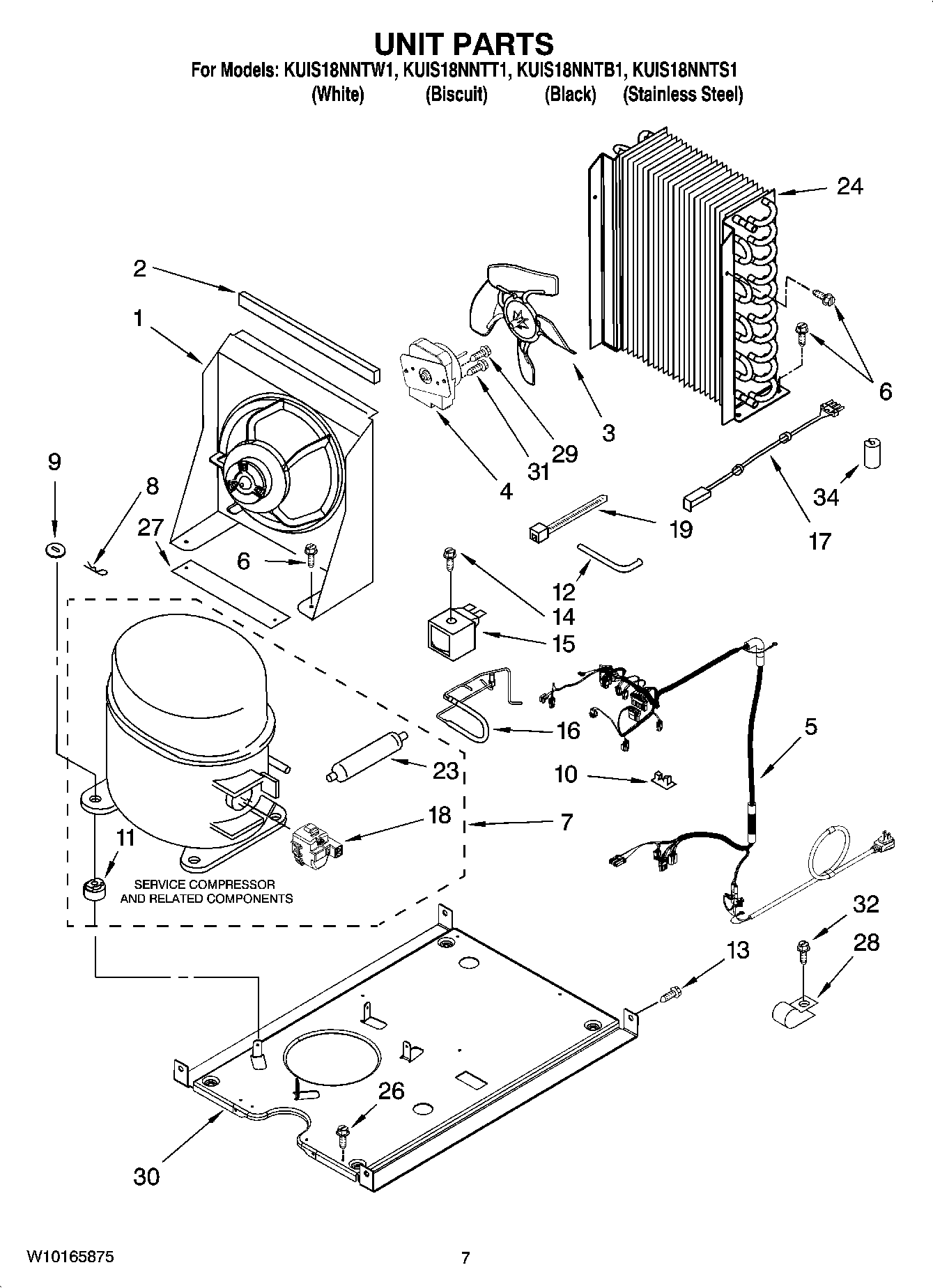

KUIS18NNTT1 05 – UNIT PARTS, OPTIONAL PARTS

KUIS18NNTT1 05 – UNIT PARTS, OPTIONAL PARTS

Written by

in

KUIS18NNTT1 05 – UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
VALVE, ACCESS (5/8“)
WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
WP505587 Whirlpool Refrigerator Sealer
978026 Whirlpool Refrigerator Primary Valve
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
212643 Whirlpool Refrigerator Permagum Sealer
Parts Not Illustrated and Optional Parts (Not Included)
Cleaner, Stainless Steel
1WP2185532 Whirlpool Refrigerator Bracket
22185675 Whirlpool Refrigerator Foam Pad
3WP2188935 Whirlpool Refrigerator Fan Blade
4W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
5Wiring Harness, Complete Unit (Includes Power Cord)
7WPW10605286 Whirlpool Refrigerator Compressor
8A201435 Whirlpool Refrigerator Clip
9A201441 Whirlpool Refrigerator Shim
10CLIP, WIRING
112185965 Whirlpool Refrigerator Grommet
11WP4387558 Whirlpool Refrigerator Compressor Grommet
12W10528572 Whirlpool Refrigerator Tube
13WP999367 Whirlpool Refrigerator Screw
14SCREW
15Coil, Solenoid
16WPW10534030 Whirlpool Refrigerator Gas Valve
17WP2187629 Whirlpool Refrigerator Wire Jumper
18WPW10136197 Whirlpool Refrigerator Start Device
19WPW10339879 Whirlpool Wire Tie
23W10843121 Whirlpool Refrigerator Tube
24WP2313624 Whirlpool Refrigerator Condenser
26WP489128 Whirlpool Refrigerator Screw
272217397 Whirlpool Foam Pad
28CLAMP, POWER CORD
298281197 Whirlpool Refrigerator Screw
302217446 Whirlpool Refrigerator Base Condenser
31WP8281196 Whirlpool Screw
32WP489069 Whirlpool Compactor Screw
34W10852725 Whirlpool Refrigerator Grommet
34REFRIGERANT CHARGE 6.5 OZ. (R134A)
