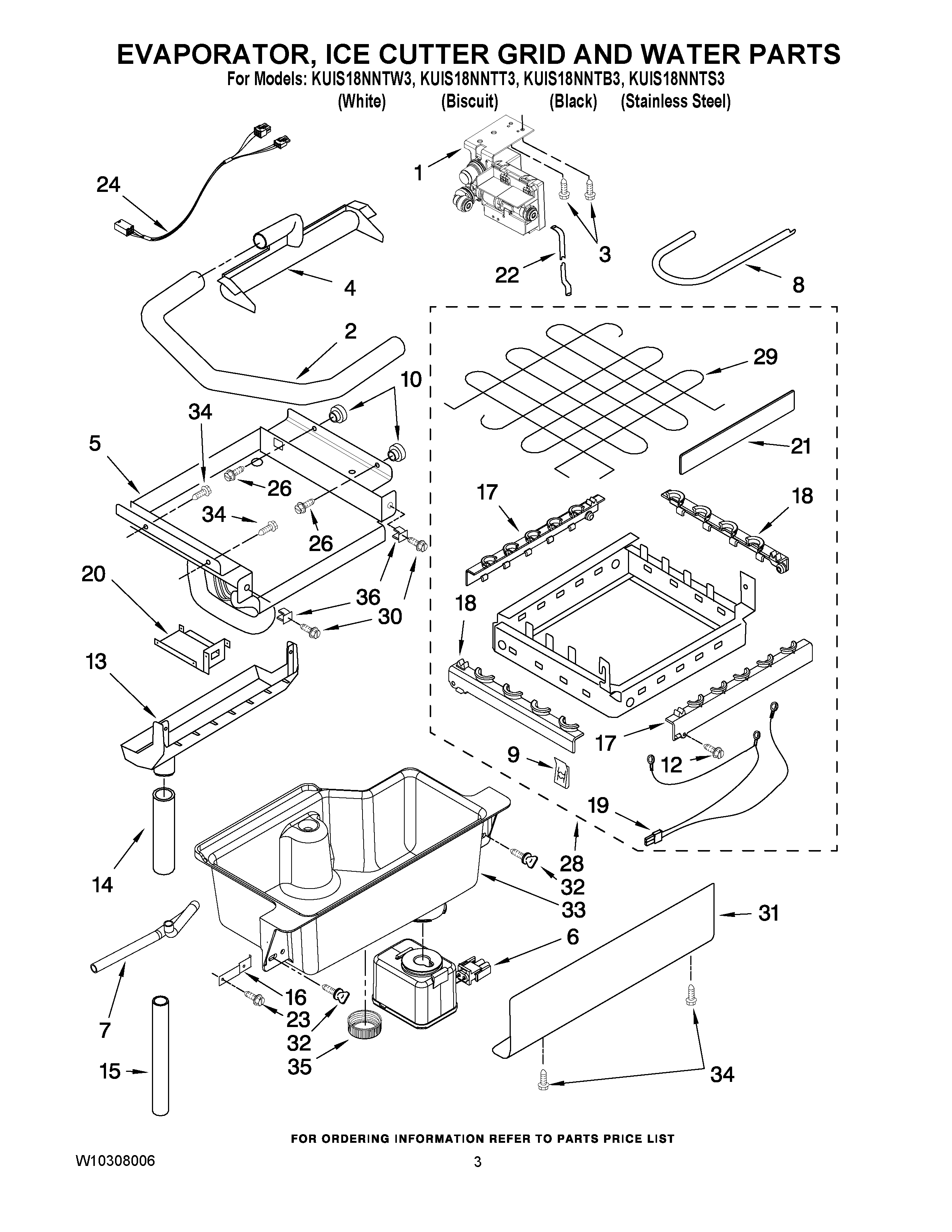

KUIS18NNTT3 02 – EVAPORATOR ICE CUTTER GRID AND WATER PARTS

KUIS18NNTT3 02 – EVAPORATOR ICE CUTTER GRID AND WATER PARTS

Written by

in

KUIS18NNTT3 02 – EVAPORATOR ICE CUTTER GRID AND WATER PARTS

Products

PositionProduct
1W10585391 Whirlpool Refrigerator Valve
3WP488163 Whirlpool Refrigerator Screw
4W10863947 Whirlpool Refrigerator Tube
5WPW10218037 Whirlpool Refrigerator Evaporator
6W11566407 Whirlpool Pump
7TUBE, RESERVOIR PUMP
8WPW10418868 Whirlpool Refrigerator Water Tube
9488660 Whirlpool Refrigerator Nut
10836667 Whirlpool Refrigerator Spacer
12WP489443 Whirlpool Refrigerator Screw
13WP2185625 Whirlpool Refrigerator Water Pan
14WP2185626 Whirlpool Refrigerator Hose
15WP2313890 Whirlpool Overflow Hose
16Support, Reservoir Bracket
17Bracket, Front and Rear
17BRACKET, REAR
188201791 Whirlpool Air Conditioner Spacer
192185681 Whirlpool Refrigerator Harness
202208427 Whirlpool Refrigerator Support
212313604 Whirlpool Refrigerator Guide
22WPW10217922 Whirlpool Tube
23WP489483 Whirlpool Screw
24WP2310169 Whirlpool Refrigerator Harness
26WP3400886 Whirlpool Refrigerator Screw
28WP2313637 Whirlpool Cutting Grid Assembly
29GRID
30W10136999 Whirlpool Refrigerator Nut
312208365 Whirlpool Refrigerator Panel
32Thumbscrew
33WP2324334 Whirlpool Refrigerator Water Pan
34WP3400884 Whirlpool Refrigerator Screw
35WP2185696 Whirlpool Cap
36WP3400909 Whirlpool Refrigerator Nut
