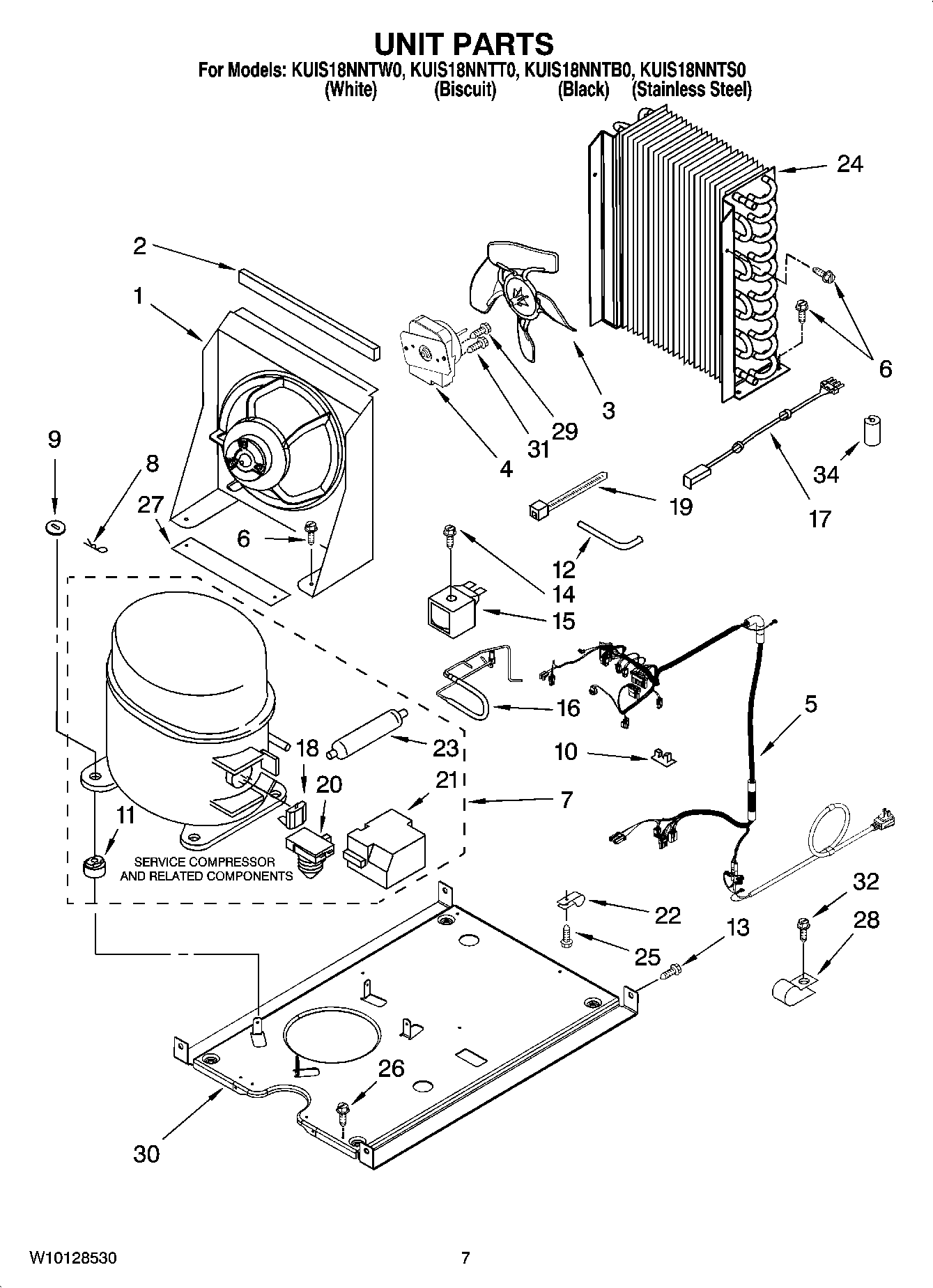

KUIS18NNTW0 05 – UNIT PARTS, OPTIONAL PARTS

KUIS18NNTW0 05 – UNIT PARTS, OPTIONAL PARTS

Written by

in

KUIS18NNTW0 05 – UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
Parts
Cleaner, Stainless Steel
WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
WP505587 Whirlpool Refrigerator Sealer
978026 Whirlpool Refrigerator Primary Valve
WP503695 Whirlpool Refrigerator Sealer
VALVE, ACCESS (5/8“)
876370 Whirlpool Refrigerator Insulation
212643 Whirlpool Refrigerator Permagum Sealer
1WP2185532 Whirlpool Refrigerator Bracket
22185675 Whirlpool Refrigerator Foam Pad
3WP2188935 Whirlpool Refrigerator Fan Blade
4W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
5Wiring Harness, Complete Unit (Includes Power Cord)
7W11735041 Whirlpool Compressor
8A201435 Whirlpool Refrigerator Clip
9A201441 Whirlpool Refrigerator Shim
10CLIP, WIRING
11WP4387558 Whirlpool Refrigerator Compressor Grommet
112185965 Whirlpool Refrigerator Grommet
12W10528572 Whirlpool Refrigerator Tube
13WP999367 Whirlpool Refrigerator Screw
14SCREW
15Coil, Solenoid
16WPW10534030 Whirlpool Refrigerator Gas Valve
17WP2187629 Whirlpool Refrigerator Wire Jumper
18WP2217223 Whirlpool Refrigerator Overload Relay
19WPW10339879 Whirlpool Wire Tie
20WP2217224 Whirlpool Refrigerator Start Relay
20WP4387938 Whirlpool Refrigerator Overload
21WP2162358 Whirlpool Refrigerator Terminal Cover
22W11456069 Whirlpool Refrigerator Clamp
23W10843121 Whirlpool Refrigerator Tube
24WP2313624 Whirlpool Refrigerator Condenser
25WP3400884 Whirlpool Refrigerator Screw
26WP489128 Whirlpool Refrigerator Screw
272217397 Whirlpool Foam Pad
28CLAMP, POWER CORD
298281197 Whirlpool Refrigerator Screw
302217446 Whirlpool Refrigerator Base Condenser
31WP8281196 Whirlpool Screw
32WP489069 Whirlpool Compactor Screw
34REFRIGERANT CHARGE 6.5 OZ. (R134A)
34W10852725 Whirlpool Refrigerator Grommet
