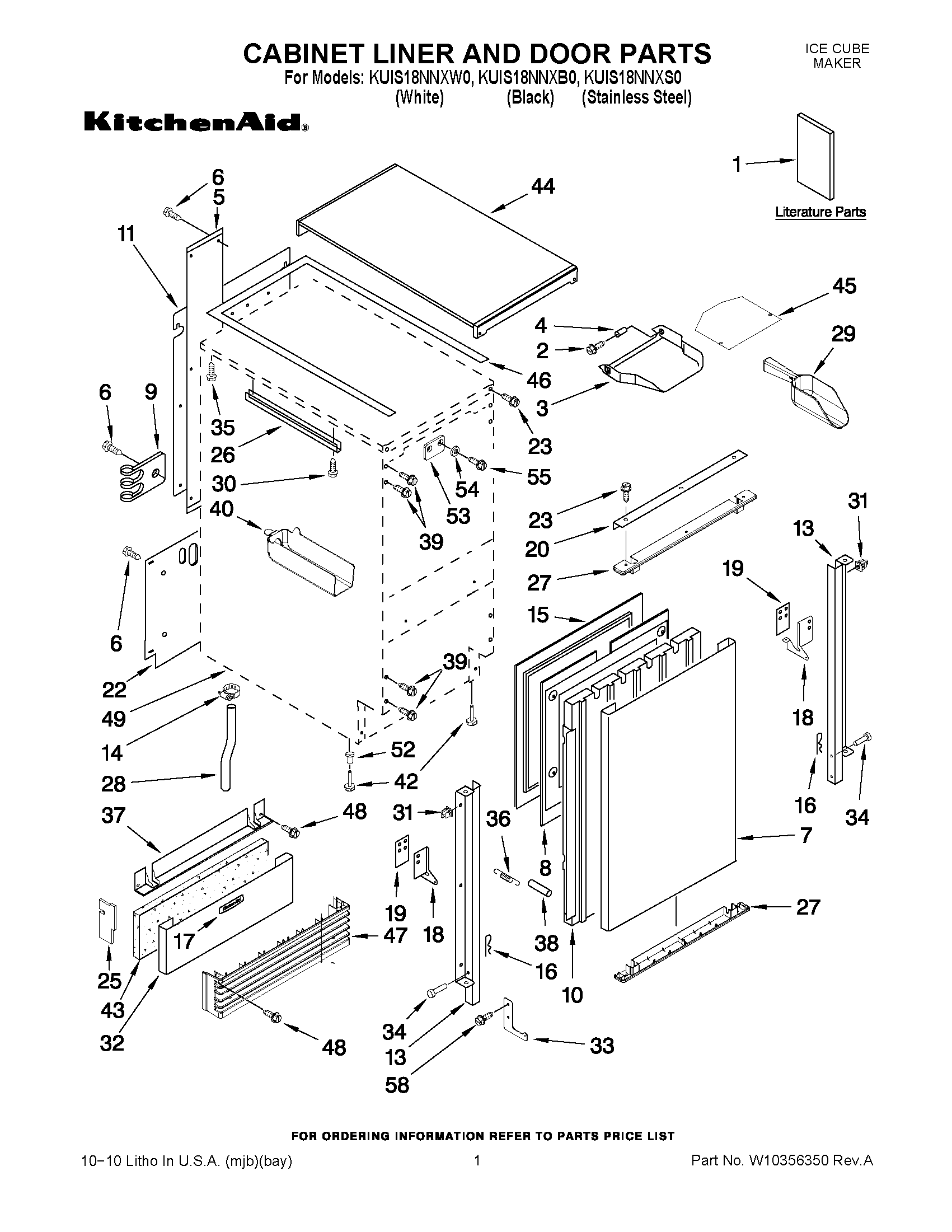

KUIS18NNXS0 01 – CABINET LINER AND DOOR PARTS

KUIS18NNXS0 01 – CABINET LINER AND DOOR PARTS

KUIS18NNXS0 01 – CABINET LINER AND DOOR PARTS

Products

PositionProduct
1USE & CARE GUIDE
1SERVICE & WIRING SHEET
2WP3400886 Whirlpool Refrigerator Screw
32208354 Whirlpool Refrigerator Inner Door
42185678 Whirlpool Refrigerator Spacer
52217394 Whirlpool Refrigerator Wire Cover
6WP489442 Whirlpool Refrigerator Screw
7Panel, Exterior (Stainless Steel)
72208352W Whirlpool Refrigerator Panel
72208352B Whirlpool Refrigerator Panel
8Panel, Interior
9WP488366 Whirlpool Refrigerator Clamp
102208377 Whirlpool Insulation
11W10218024 Whirlpool Enclosure
13Bracket, Door (Right Side)
132217466 Whirlpool Bracket
14WP489503 Whirlpool Refrigerator Clamp
15W11624959 Whirlpool Refrigerator Door Gasket
16W11545866 Whirlpool Refrigerator Clip
17WPW10243392 Whirlpool Dishwasher Nameplate
17WPW10243393 Whirlpool Dishwasher Nameplate
17WPW10243391 Whirlpool Refrigerator Nameplate
182208426 Whirlpool Refrigerator Hinge
182208425 Whirlpool Refrigerator Hinge
19Shim, Hinge
20Handle, Icemaker (White)
202208440B Whirlpool Refrigerator Handle
22WPW10136200 Whirlpool Refrigerator Unit Cover
238281188 Whirlpool Refrigerator M Screw
23Screw, Handle
252217225 Whirlpool Refrigerator Foam Pad
262185691 Whirlpool Refrigerator Channel
272208350W Whirlpool Endcap
27W11413461 Whirlpool Refrigerator Endcap
282208453 Whirlpool Refrigerator Tube
29W11420408 Whirlpool Refrigerator Ice Scoop
30WP3400884 Whirlpool Refrigerator Screw
31WP692400 Whirlpool Nut
322208382W Whirlpool Refrigerator IM Panel
322208382B Whirlpool Refrigerator Grill Panel
32Panel, Wrap Lower (Stainless Steel)
332208487 Whirlpool Bracket
34Pin, Hinge
35WP250830 Whirlpool Refrigerator Screw
36Spring, Hinge
372208383W Whirlpool Refrigerator End Cap
372208383B Whirlpool Refrigerator Endcap
38Dampener, Sp
39WP999367 Whirlpool Refrigerator Screw
40Holder, Scoop
428193716 Whirlpool Leveling Leg
432208384 Whirlpool Refrigerator Insulation
44W10320113 Whirlpool Refrigerator Top Cabinet
44TOP (WHITE)
452185690 Whirlpool Shield Assembly
462217296 Whirlpool Refrigerator Top Gasket
472217206W Whirlpool Refrigerator Grille
47WP2217206B Whirlpool Refrigerator Grille
48WP489474 Whirlpool Refrigerator Screw
49CABINET (NOT A SERVICEABLE PART)
523400240 Whirlpool Refrigerator Nut
532208434 Whirlpool Refrigerator Strike
54WASHER
558281191 Whirlpool Oven Screw
58WP488163 Whirlpool Refrigerator Screw
