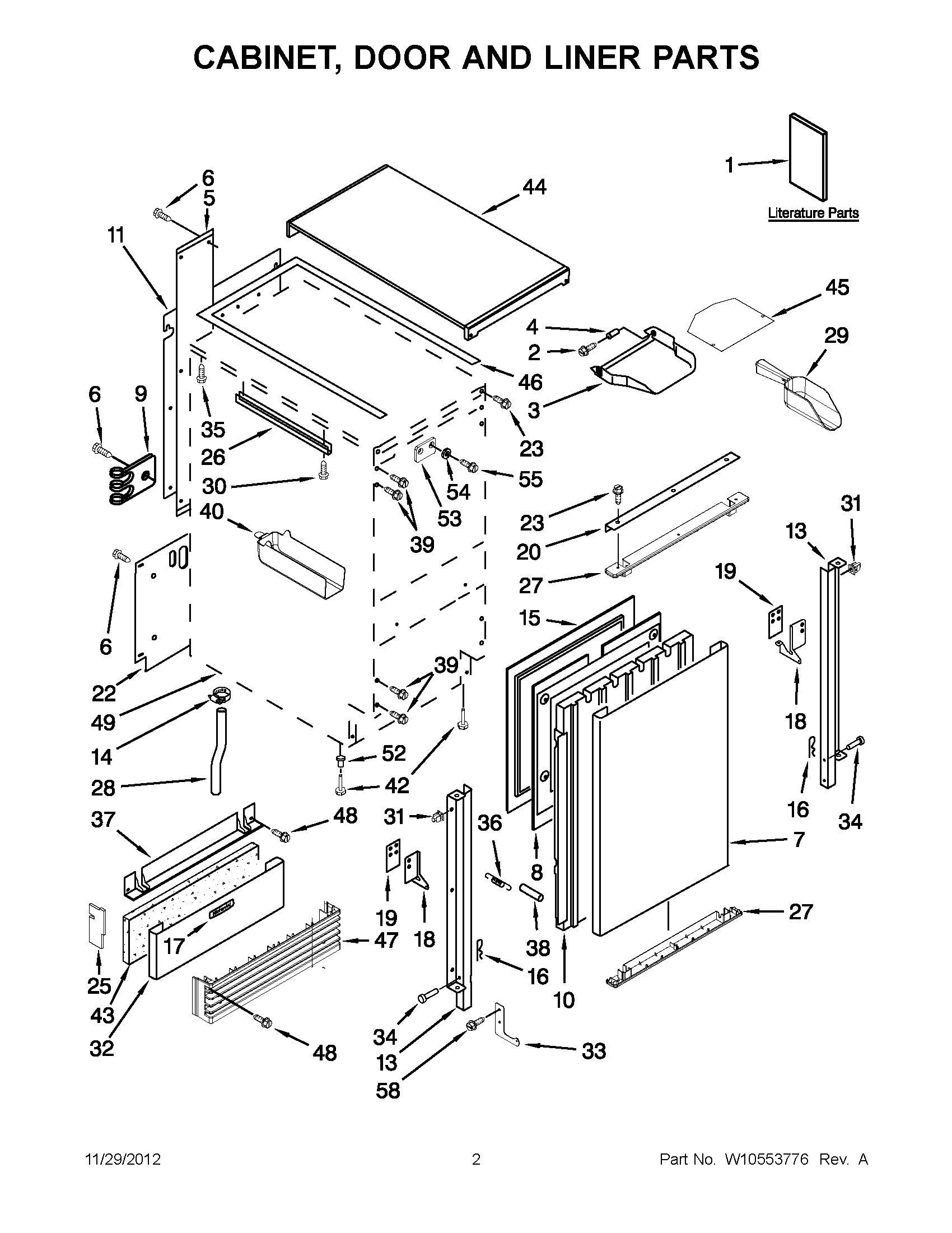

KUIS18NNXW1 01 – CABINET, DOOR AND LINER PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
2	WP3400886 Whirlpool Refrigerator Screw
3	2208354 Whirlpool Refrigerator Inner Door
4	2185678 Whirlpool Refrigerator Spacer
5	2217394 Whirlpool Refrigerator Wire Cover
6	WP489442 Whirlpool Refrigerator Screw
7	Panel, Exterior (Stainless Steel)
7	2208352W Whirlpool Refrigerator Panel
7	2208352B Whirlpool Refrigerator Panel
8	Panel, Interior
9	WP488366 Whirlpool Refrigerator Clamp
10	2208377 Whirlpool Insulation
11	W10218024 Whirlpool Enclosure
13	2217466 Whirlpool Bracket
13	Bracket, Door (Right Side)
14	WP489503 Whirlpool Refrigerator Clamp
15	W11624959 Whirlpool Refrigerator Door Gasket
16	W11545866 Whirlpool Refrigerator Clip
17	WPW10243391 Whirlpool Refrigerator Nameplate
17	WPW10243392 Whirlpool Dishwasher Nameplate
17	WPW10243393 Whirlpool Dishwasher Nameplate
18	2208426 Whirlpool Refrigerator Hinge
18	2208425 Whirlpool Refrigerator Hinge
19	Shim, Hinge
20	Handle, Icemaker (White)
20	2208440B Whirlpool Refrigerator Handle
22	WPW10136200 Whirlpool Refrigerator Unit Cover
25	2217225 Whirlpool Refrigerator Foam Pad
26	2185691 Whirlpool Refrigerator Channel
27	W11413461 Whirlpool Refrigerator Endcap
27	2208350W Whirlpool Endcap
28	2208453 Whirlpool Refrigerator Tube
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	WP3400884 Whirlpool Refrigerator Screw
31	WP692400 Whirlpool Nut
32	Panel, Wrap Lower (Stainless Steel)
32	2208382B Whirlpool Refrigerator Grill Panel
32	2208382W Whirlpool Refrigerator IM Panel
33	2208487 Whirlpool Bracket
34	Pin, Hinge
35	WP250830 Whirlpool Refrigerator Screw
36	Spring, Hinge
37	2208383W Whirlpool Refrigerator End Cap
37	2208383B Whirlpool Refrigerator Endcap
38	Dampener, Sp
39	WP489483 Whirlpool Screw
40	Holder, Scoop
42	8193716 Whirlpool Leveling Leg
43	2208384 Whirlpool Refrigerator Insulation
44	W10320113 Whirlpool Refrigerator Top Cabinet
44	TOP (WHITE)
45	2185690 Whirlpool Shield Assembly
46	2217296 Whirlpool Refrigerator Top Gasket
47	2217206W Whirlpool Refrigerator Grille
47	WP2217206B Whirlpool Refrigerator Grille
48	WP489474 Whirlpool Refrigerator Screw
49	CABINET (NOT A SERVICEABLE PART)
52	3400240 Whirlpool Refrigerator Nut
53	2208434 Whirlpool Refrigerator Strike
54	WASHER
55	8281191 Whirlpool Oven Screw
58	WP488163 Whirlpool Refrigerator Screw
