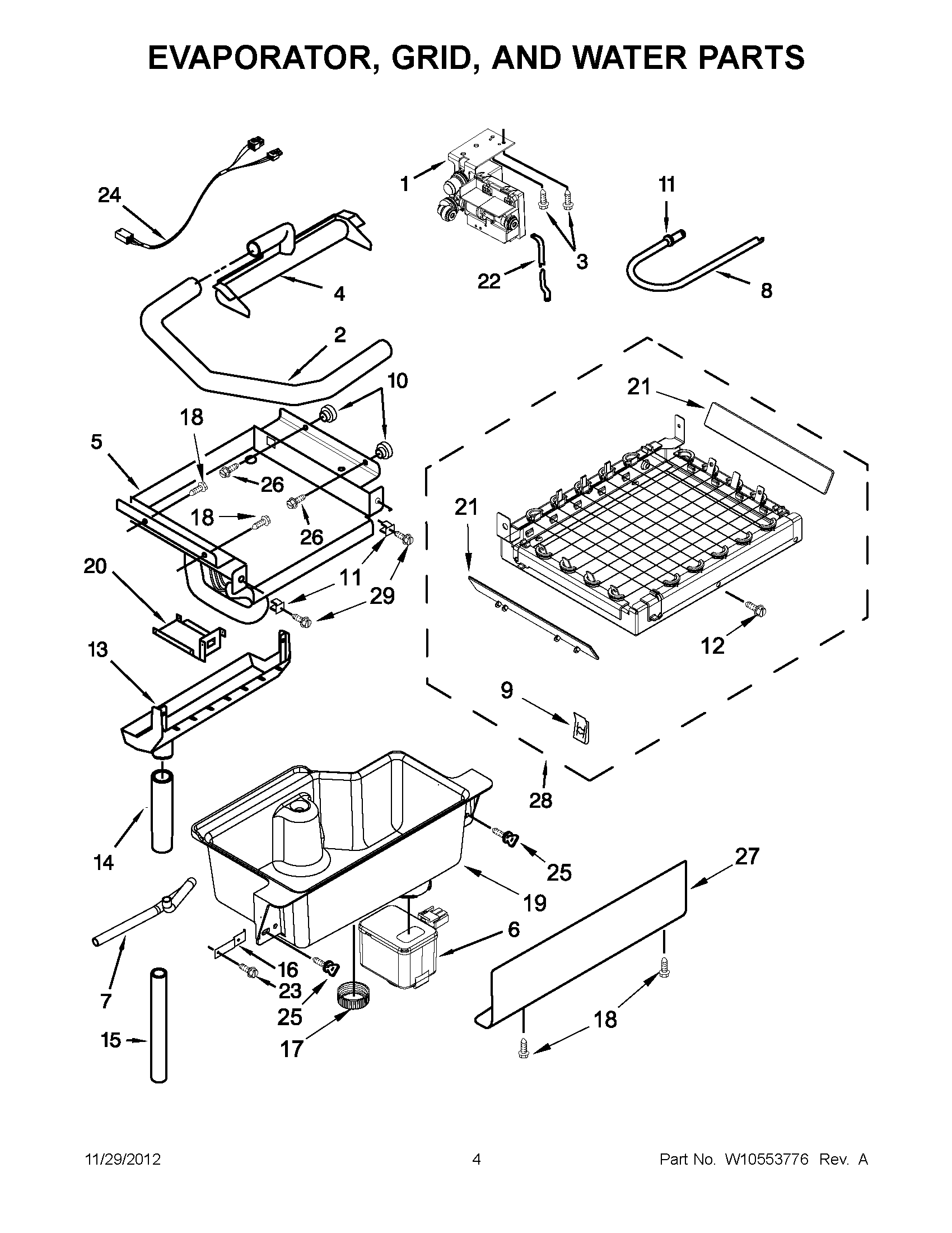

KUIS18NNXW1 02 – EVAPORATOR, GRID, AND WATER PARTS

KUIS18NNXW1 02 – EVAPORATOR, GRID, AND WATER PARTS

Written by

in

KUIS18NNXW1 02 – EVAPORATOR, GRID, AND WATER PARTS

Products

PositionProduct
1WPW10340983 Whirlpool Refrigerator Valve
3WP488163 Whirlpool Refrigerator Screw
4W10863947 Whirlpool Refrigerator Tube
5WPW10218037 Whirlpool Refrigerator Evaporator
6W11566407 Whirlpool Pump
7TUBE, RESERVOIR PUMP
8WPW10217922 Whirlpool Tube
9TUBE, PLUG
10836667 Whirlpool Refrigerator Spacer
11WP3400909 Whirlpool Refrigerator Nut
12WP489443 Whirlpool Refrigerator Screw
13WP2185625 Whirlpool Refrigerator Water Pan
14WP2185626 Whirlpool Refrigerator Hose
15WP2313890 Whirlpool Overflow Hose
16Support, Reservoir Bracket
17W11023835 Whirlpool Refrigerator Drain Cap
19WP2324334 Whirlpool Refrigerator Water Pan
202208427 Whirlpool Refrigerator Support
212313604 Whirlpool Refrigerator Guide
22WPW10418868 Whirlpool Refrigerator Water Tube
23W11573574 Whirlpool Screw
24WP2310169 Whirlpool Refrigerator Harness
25Thumbscrew
26WP3400886 Whirlpool Refrigerator Screw
272208365 Whirlpool Refrigerator Panel
28WP2313637 Whirlpool Cutting Grid Assembly
29WP3400884 Whirlpool Refrigerator Screw
