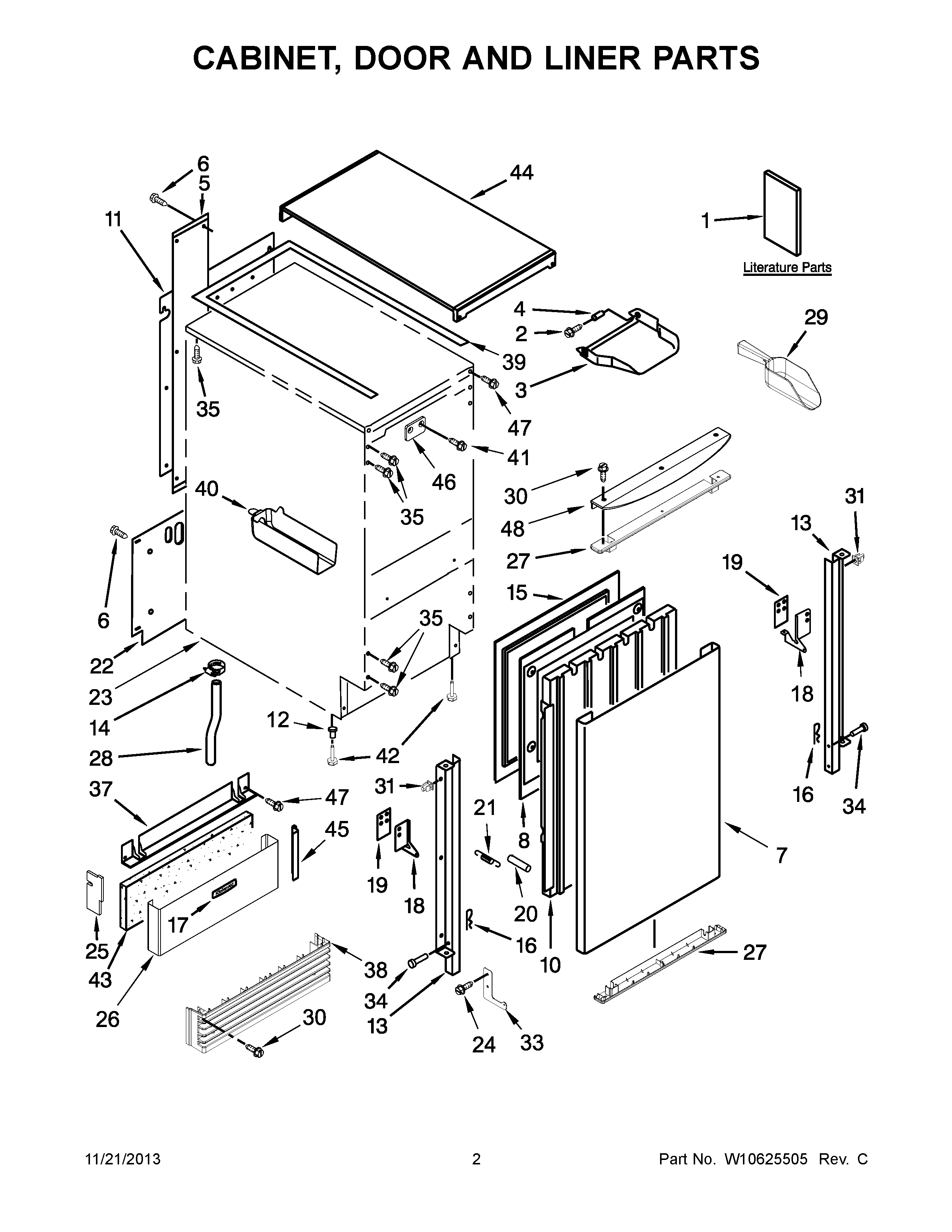

KUIS18NNZW0 02 – CABINET, DOOR AND LINER PARTS

KUIS18NNZW0 02 – CABINET, DOOR AND LINER PARTS

Written by

in

KUIS18NNZW0 02 – CABINET, DOOR AND LINER PARTS

Products

Position	Product
1	TECH SHEET
1	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
2	WP3400886 Whirlpool Refrigerator Screw
3	2208354 Whirlpool Refrigerator Inner Door
4	2185678 Whirlpool Refrigerator Spacer
5	2217394 Whirlpool Refrigerator Wire Cover
6	WP489442 Whirlpool Refrigerator Screw
7	2208352W Whirlpool Refrigerator Panel
7	2208352B Whirlpool Refrigerator Panel
8	W10563026 Whirlpool Refrigerator Panel
10	2208377 Whirlpool Insulation
11	W10218024 Whirlpool Enclosure
12	3400240 Whirlpool Refrigerator Nut
13	2217466 Whirlpool Bracket
13	Bracket, Door (Right Side)
14	WP489503 Whirlpool Refrigerator Clamp
15	W11624959 Whirlpool Refrigerator Door Gasket
16	W11545866 Whirlpool Refrigerator Clip
17	WPW10243392 Whirlpool Dishwasher Nameplate
17	WPW10243393 Whirlpool Dishwasher Nameplate
18	2208425 Whirlpool Refrigerator Hinge
18	2208426 Whirlpool Refrigerator Hinge
19	Shim, Hinge
20	Dampener, Sp
21	Spring, Hinge
22	WPW10136200 Whirlpool Refrigerator Unit Cover
23	CABINET (NOT A SERVICEABLE PART)
24	WP488163 Whirlpool Refrigerator Screw
25	2217225 Whirlpool Refrigerator Foam Pad
26	2208382W Whirlpool Refrigerator IM Panel
26	2208382B Whirlpool Refrigerator Grill Panel
27	2208350W Whirlpool Endcap
27	W11413461 Whirlpool Refrigerator Endcap
28	2208453 Whirlpool Refrigerator Tube
29	W10508276A Whirlpool Refrigerator Ice Scoop
30	8534075 Whirlpool Screw
30	8534077 Whirlpool Screw
31	WP692400 Whirlpool Nut
33	2208487 Whirlpool Bracket
34	Pin, Hinge
35	WP250830 Whirlpool Refrigerator Screw
37	2208383B Whirlpool Refrigerator Endcap
37	2208383W Whirlpool Refrigerator End Cap
38	WP2217206B Whirlpool Refrigerator Grille
38	2217206W Whirlpool Refrigerator Grille
39	2217296 Whirlpool Refrigerator Top Gasket
40	W10557773 Whirlpool Refrigerator Holder
41	8281191 Whirlpool Oven Screw
42	8193716 Whirlpool Leveling Leg
43	2208384 Whirlpool Refrigerator Insulation
44	W10516503 Whirlpool Refrigerator Top Cabinet
44	W10320118 Whirlpool Refrigerator Top Cabinet
45	2208596B Whirlpool Refrigerator Edge Guard
46	2208434 Whirlpool Refrigerator Strike
47	WP489474 Whirlpool Refrigerator Screw
48	Handle, Icemaker (White)
48	2208440B Whirlpool Refrigerator Handle
