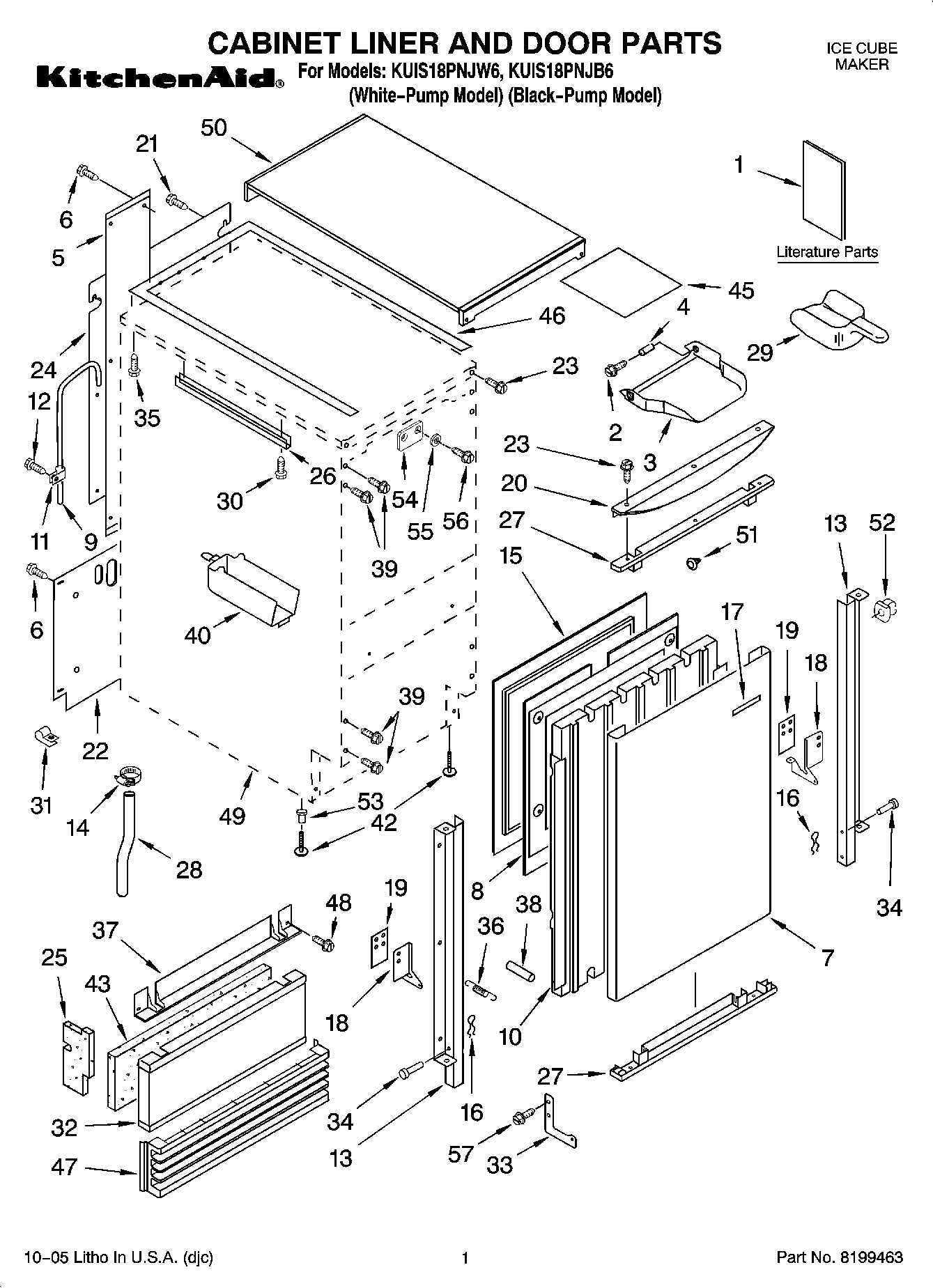

KUIS18PNJB6 01 – CABINET LINER AND DOOR PARTS

KUIS18PNJB6 01 – CABINET LINER AND DOOR PARTS

Written by

in

KUIS18PNJB6 01 – CABINET LINER AND DOOR PARTS

Products

Position	Product
1	Use & Care Guide
1	Service & Wiring Sheet
2	WP3400886 Whirlpool Refrigerator Screw
3	2208354 Whirlpool Refrigerator Inner Door
4	2185678 Whirlpool Refrigerator Spacer
5	2217394 Whirlpool Refrigerator Wire Cover
6	WP489442 Whirlpool Refrigerator Screw
7	2208352B Whirlpool Refrigerator Panel
7	2208352W Whirlpool Refrigerator Panel
8	Panel, Interior
9	TUBE
10	2208377 Whirlpool Insulation
11	WP2208367 Whirlpool Refrigerator Half Clamp
12	WP489464 Whirlpool Refrigerator Screw
13	Bracket, Door (Right Side)
13	2217466 Whirlpool Bracket
14	WP489503 Whirlpool Refrigerator Clamp
15	W11624959 Whirlpool Refrigerator Door Gasket
16	Clip
17	Nameplate (Black)
17	Nameplate (White)
18	2208425 Whirlpool Refrigerator Hinge
18	2208426 Whirlpool Refrigerator Hinge
19	Shim, Hinge
20	Handle, Icemaker (White)
20	2208440B Whirlpool Refrigerator Handle
21	W11693756 Whirlpool Screw Assembly
22	WPW10136200 Whirlpool Refrigerator Unit Cover
23	8281188 Whirlpool Refrigerator M Screw
23	Screw, Handle
24	W10218024 Whirlpool Enclosure
25	2217225 Whirlpool Refrigerator Foam Pad
26	2185691 Whirlpool Refrigerator Channel
27	W11413461 Whirlpool Refrigerator Endcap
27	2208350W Whirlpool Endcap
28	Tube, Drain
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	WP3400884 Whirlpool Refrigerator Screw
31	WP488366 Whirlpool Refrigerator Clamp
32	2208382W Whirlpool Refrigerator IM Panel
32	2208382B Whirlpool Refrigerator Grill Panel
33	2208487 Whirlpool Bracket
34	Pin, Hinge
35	WP250830 Whirlpool Refrigerator Screw
36	Spring, Hinge
37	2208383W Whirlpool Refrigerator End Cap
37	2208383B Whirlpool Refrigerator Endcap
38	Dampener, Sp
39	WP999367 Whirlpool Refrigerator Screw
40	Holder, Scoop
42	8193716 Whirlpool Leveling Leg
43	2208384 Whirlpool Refrigerator Insulation
45	2185690 Whirlpool Shield Assembly
46	2217296 Whirlpool Refrigerator Top Gasket
47	2217206W Whirlpool Refrigerator Grille
47	WP2217206B Whirlpool Refrigerator Grille
48	WP489474 Whirlpool Refrigerator Screw
49	Cabinet & Liner (Not Serviced)
50	WPL 2929701W
50	Top
51	WP941839 Whirlpool Refrigerator Button Plug
52	WP692400 Whirlpool Nut
53	3400240 Whirlpool Refrigerator Nut
54	2208434 Whirlpool Refrigerator Strike
55	WASHER
56	8281191 Whirlpool Oven Screw
57	WP488163 Whirlpool Refrigerator Screw
