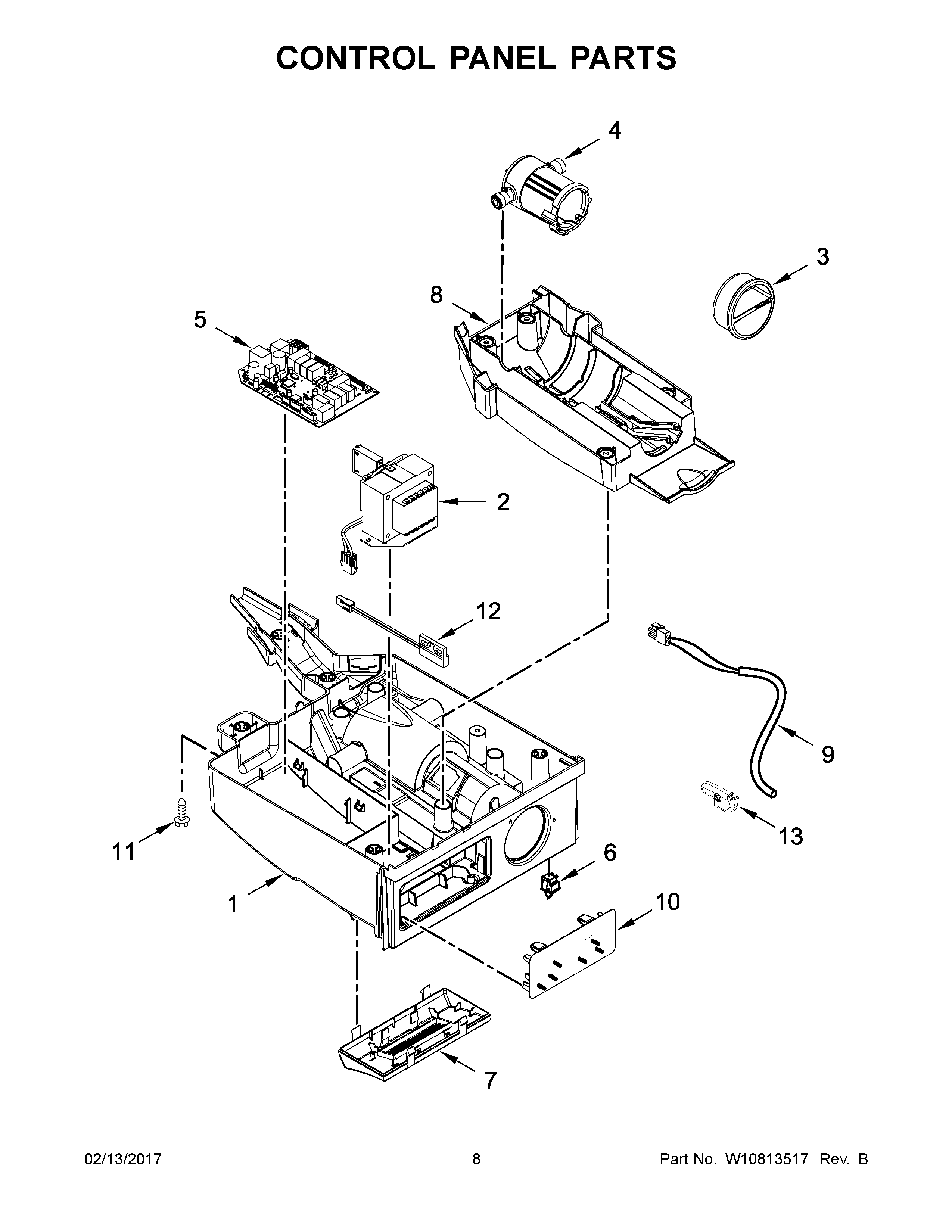

KUIS18PNZB1 05 – CONTROL PANEL PARTS

Products

Position	Product
1	W10477560 Whirlpool Refrigerator Control Box
2	TRANSFORMR
3	W10800356 Whirlpool Refrigerator Ice Machine Filter
4	W11266112 Whirlpool Refrigerator Housing
5	W11034363 Whirlpool Main Control Board + Core
6	W11291138 Whirlpool Refrigerator Door Switch
7	W10492487 Whirlpool Refrigerator Light
8	W10475416 Whirlpool Refrigerator Cover
9	THERMISTOR
10	W10865633 Whirlpool Refrigerator Electronic Control Board
11	WP3400884 Whirlpool Refrigerator Screw
12	W11171663 Whirlpool Refrigerator Switch
13	W10526623 Whirlpool Refrigerator Clamp
