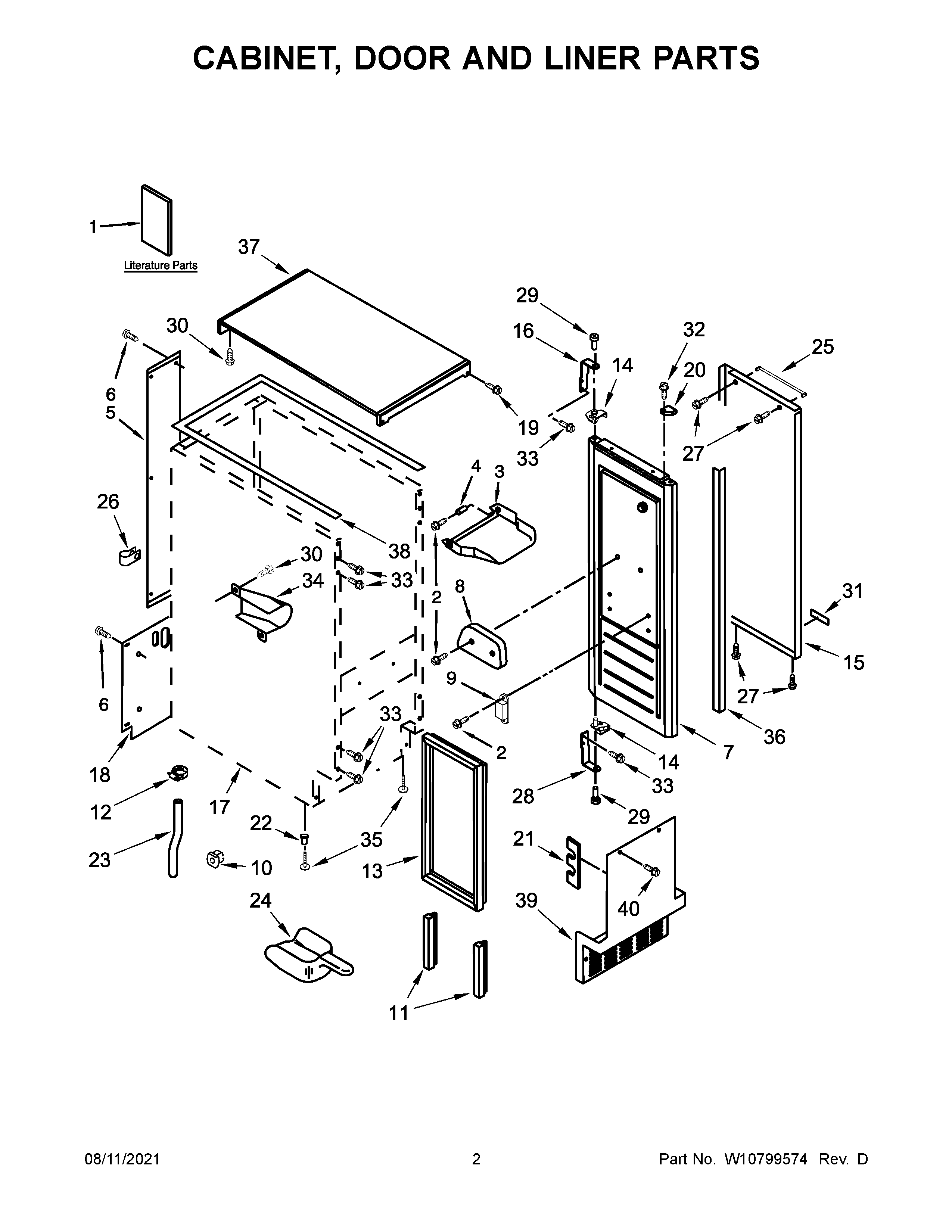

KUIX305EBL0 02 – CABINET, DOOR AND LINER PARTS

Products

Position	Product
1A	INSTALLATION INSTRUCTIONS
1B	TECH SHEET
1	USE & CARE GUIDE
2	WP3400886 Whirlpool Refrigerator Screw
3	BIN, DOOR
4	2185678 Whirlpool Refrigerator Spacer
5	2217394 Whirlpool Refrigerator Wire Cover
6	WP489442 Whirlpool Refrigerator Screw
7	W10512905Q Whirlpool FIP Door
7A	W10502166Q Whirlpool Refrigerator Door FIP
8	W10486874 Whirlpool Door Cam
9	W11223751 Whirlpool Refrigerator Catch Assembly
10	W10136999 Whirlpool Refrigerator Nut
11	2217367 Whirlpool Refrigerator Door Gasket
12	W10670799 Whirlpool Refrigerator Clamp
13	WP2217294 Whirlpool Refrigerator Door Gasket
14A	W10486560 Whirlpool Door Stop
14B	W10486559 Whirlpool Refrigerator Door Stop
14C	W10486561 Whirlpool Refrigerator Door Stop
14	W10486558 Whirlpool Door Stop
15A	W10729876 Whirlpool Refrigerator Door Wrap
15B	WRAP, DOOR (STAINLESS)
15	WRAP, DOOR (WHITE)
16A	W10476703 Whirlpool Refrigerator Hinge
16	W10476704 Whirlpool Hinge
17	WPW10136199 Whirlpool Refrigerator Unit Cover
18	8534075 Whirlpool Screw
19	SCREW (BLACK)
20C	W10532250 Whirlpool Refrigerator Foam Pad
20B	W10501849 Whirlpool Floor Endcap
20A	W10501833 Whirlpool Floor Endcap
20	FILLER, TOP ENDCAP (WHITE)
21	3400240 Whirlpool Refrigerator Nut
22	W10737551 Whirlpool Refrigerator Drain Tube
23	W11420408 Whirlpool Refrigerator Ice Scoop
24	W11450233 Whirlpool Refrigerator Handle
25	WP488366 Whirlpool Refrigerator Clamp
26	WP3400237 Whirlpool Refrigerator Screw
27	W10476697 Whirlpool Hinge
28	W10476696 Whirlpool Refrigerator Hinge
28A	2185712 Whirlpool Refrigerator Hinge Pin
29	WP250830 Whirlpool Refrigerator Screw
30	W10909682 Whirlpool Nameplate Tag
31	NAMEPLATE
32	W11661566 Whirlpool Screw
33A	2185927 Whirlpool Refrigerator Holder
33	W10495264 Whirlpool Refrigerator Screw
34	8193716 Whirlpool Leveling Leg
35	W10619836 Whirlpool Refrigerator Edge Guard
36	W10512750 Whirlpool Refrigerator Top Cabinet
37	W10320117 Whirlpool Refrigerator Top Cabinet
37A	W11624957 Whirlpool Refrigerator Top Gasket
38	WP2185571W Whirlpool Refrigerator Grille
39	WP2185571B Whirlpool Refrigerator Grille
39A	W11447718 Whirlpool Refrigerator Screw
40	W10531302 Whirlpool Refrigerator Screw
