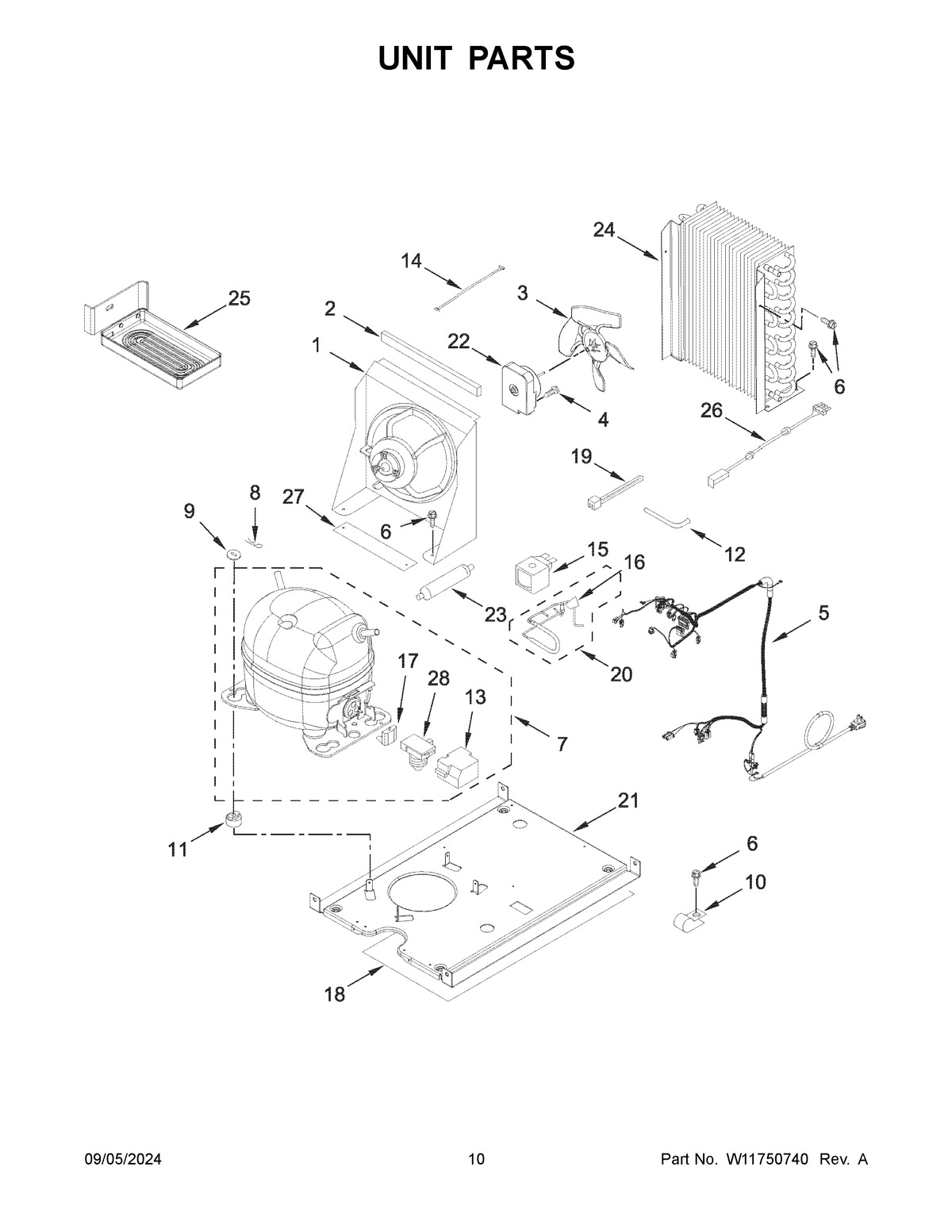

KUIX335HPS02 06 – UNIT PARTS

Products

Position	Product
NI	REFRIGERANT CHARGE 5.75 OZ. (R-134A)
1	WP2185532 Whirlpool Refrigerator Bracket
2	2185675 Whirlpool Refrigerator Foam Pad
3	WP2188935 Whirlpool Refrigerator Fan Blade
4	WP8281196 Whirlpool Screw
5	W11123917 Whirlpool Refrigerator Harness
6	WP489069 Whirlpool Compactor Screw
7	W11735041 Whirlpool Compressor
8	A201435 Whirlpool Refrigerator Clip
9	A201441 Whirlpool Refrigerator Shim
10	CLAMP, POWER CORD
11	2185965 Whirlpool Refrigerator Grommet
12	W10528572 Whirlpool Refrigerator Tube
13	WP2162358 Whirlpool Refrigerator Terminal Cover
14	W11086824 Whirlpool Refrigerator Wire Jumper
15	WPW10206473 Whirlpool Refrigerator Coil Solenoid
16	WP759113 Whirlpool Refrigerator Gas Valve
17	W11624931 Whirlpool Refrigerator Overload
18	W10282061 Whirlpool Tape
19	W11456069 Whirlpool Refrigerator Clamp
20	VALVE, HOT GAS
21	BASE, UNIT
22	W11613295 Whirlpool Condenser Motor
23	W10843121 Whirlpool Refrigerator Tube
24	CONDENSER
25	W10615506 Whirlpool Refrigerator Water Pan
26	WP2187629 Whirlpool Refrigerator Wire Jumper
27	PAD, FOAM
28	WP2217224 Whirlpool Refrigerator Start Relay
