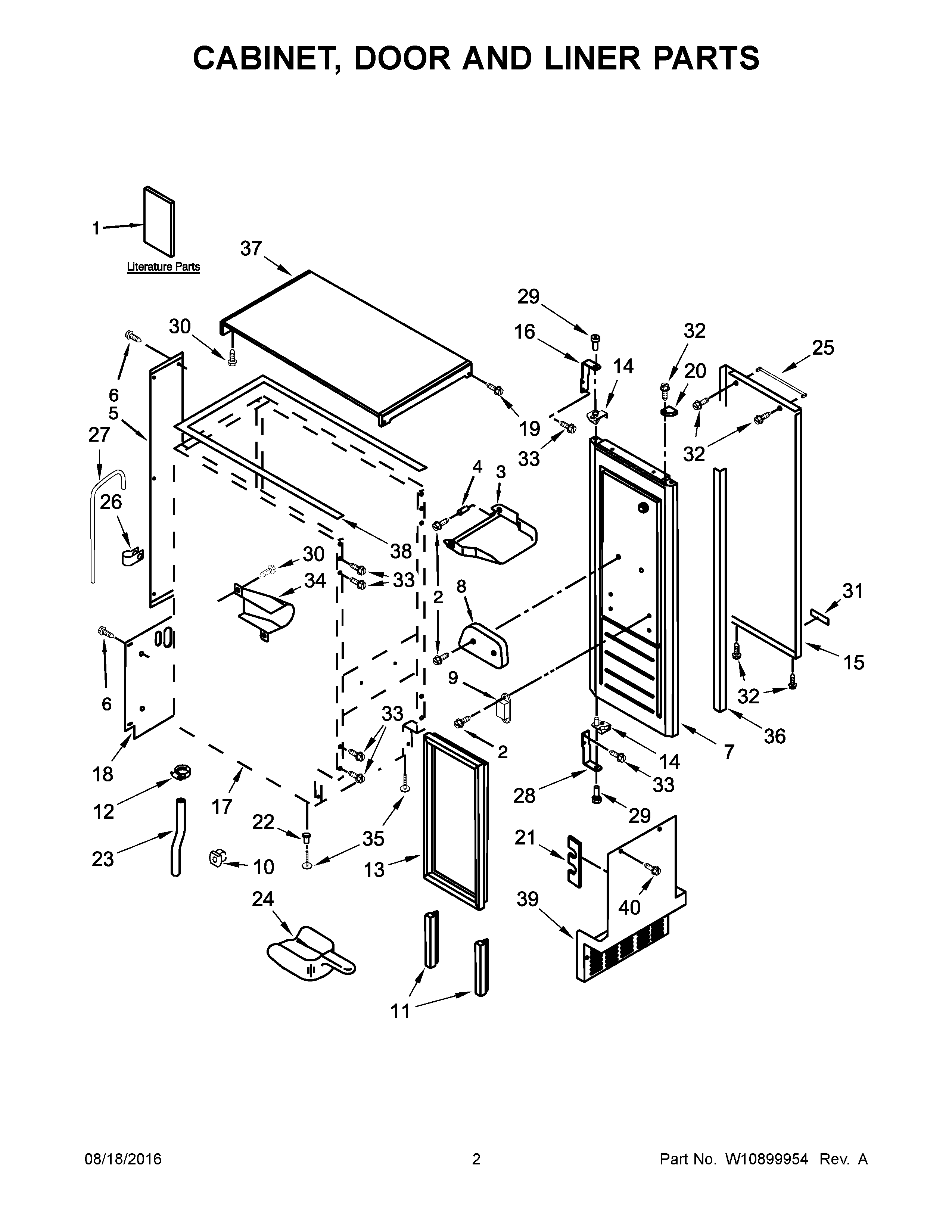

KUIX505EBS0 02 – CABINET, DOOR AND LINER PARTS

KUIX505EBS0 02 – CABINET, DOOR AND LINER PARTS

Written by

in

KUIX505EBS0 02 – CABINET, DOOR AND LINER PARTS

Products

Position	Product
1B	TECH SHEET
1A	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
2	WP3400886 Whirlpool Refrigerator Screw
3	BIN, DOOR
4	2185678 Whirlpool Refrigerator Spacer
5	2217394 Whirlpool Refrigerator Wire Cover
6	WP489442 Whirlpool Refrigerator Screw
7	W10502166Q Whirlpool Refrigerator Door FIP
8	W10486874 Whirlpool Door Cam
9	W11223751 Whirlpool Refrigerator Catch Assembly
10	W10136999 Whirlpool Refrigerator Nut
11	2217367 Whirlpool Refrigerator Door Gasket
12	W10670799 Whirlpool Refrigerator Clamp
13	WP2217294 Whirlpool Refrigerator Door Gasket
14	W10486559 Whirlpool Refrigerator Door Stop
14A	W10486561 Whirlpool Refrigerator Door Stop
15	W10913640 Whirlpool Refrigerator Door Wrap
16	W10476703 Whirlpool Refrigerator Hinge
17	CABINET (NOT A SERVICEABLE PART)
18	WPW10136199 Whirlpool Refrigerator Unit Cover
19	8534075 Whirlpool Screw
20A	W10501849 Whirlpool Floor Endcap
20	W10501833 Whirlpool Floor Endcap
21	W10532250 Whirlpool Refrigerator Foam Pad
22	3400240 Whirlpool Refrigerator Nut
23	W10825876 Whirlpool Refrigerator Drain Tube
24	W11420408 Whirlpool Refrigerator Ice Scoop
25	W11450233 Whirlpool Refrigerator Handle
26	WP488366 Whirlpool Refrigerator Clamp
27	WPW10217906 Whirlpool Refrigerator Tube
28	W10476696 Whirlpool Refrigerator Hinge
29	2185712 Whirlpool Refrigerator Hinge Pin
30	WP250830 Whirlpool Refrigerator Screw
31	W10909682 Whirlpool Nameplate Tag
32	NAMEPLATE
33	W10495264 Whirlpool Refrigerator Screw
34	2185927 Whirlpool Refrigerator Holder
35	8193716 Whirlpool Leveling Leg
36	2185964 Whirlpool Refrigerator Guard Edge
37	W10320117 Whirlpool Refrigerator Top Cabinet
38	W11624957 Whirlpool Refrigerator Top Gasket
39	WP2185571B Whirlpool Refrigerator Grille
40	W10531302 Whirlpool Refrigerator Screw
