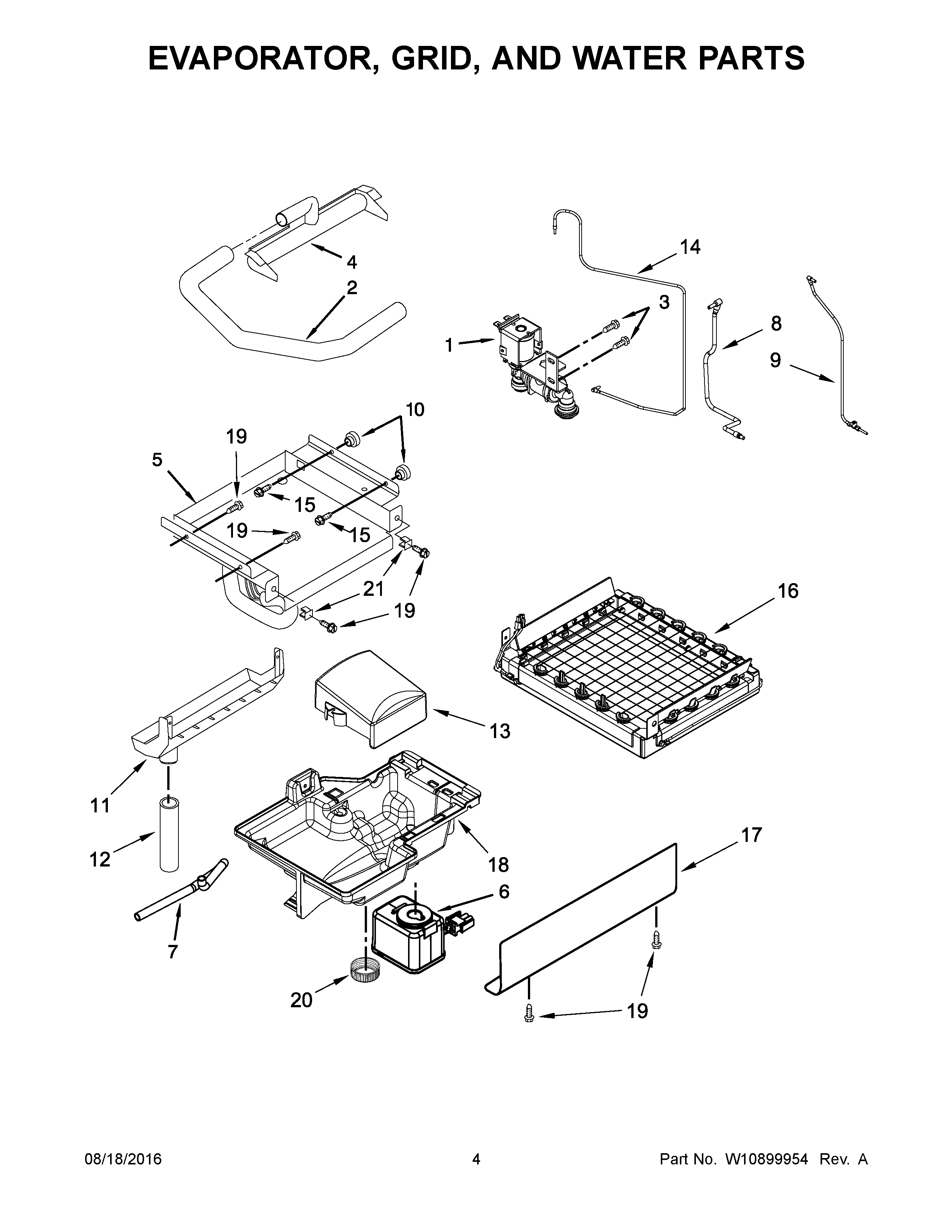

KUIX505EBS0 03 – EVAPORATOR, GRID, AND WATER PARTS

Products

Position	Product
1	VALVE
3	WP488163 Whirlpool Refrigerator Screw
4	W10863947 Whirlpool Refrigerator Tube
5	WPW10218037 Whirlpool Refrigerator Evaporator
6	PUMP
7	W11097809 Whirlpool Refrigerator Tube
8	WPW10678299 Whirlpool Refrigerator Tube
9	W11256498 Whirlpool Refrigerator Water Tube
10	836667 Whirlpool Refrigerator Spacer
11	WP2185625 Whirlpool Refrigerator Water Pan
12	W11033204 Whirlpool Refrigerator Hose
13	W10512292 Whirlpool Refrigerator Cover
14	WPW10678300 Whirlpool Refrigerator Tube
15	WP3400886 Whirlpool Refrigerator Screw
16	W10919199 Whirlpool Refrigerator Cutter Grid
17	W10340986 Whirlpool Refrigerator Panel
18	W11614100 Whirlpool Water Pan
19	WP3400884 Whirlpool Refrigerator Screw
20	W11023835 Whirlpool Refrigerator Drain Cap
21	WP3400909 Whirlpool Refrigerator Nut
