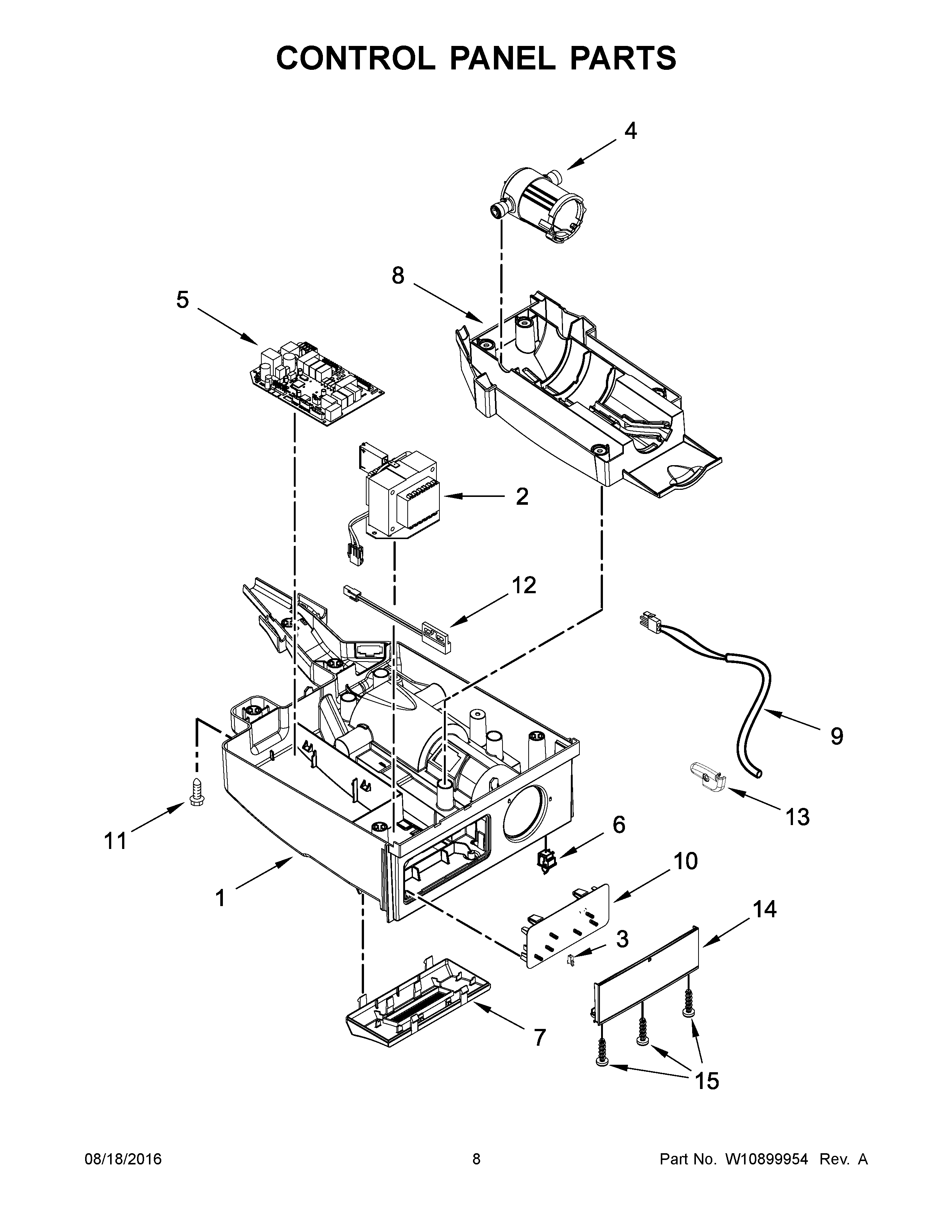

KUIX505EBS0 05 – CONTROL PANEL PARTS

KUIX505EBS0 05 – CONTROL PANEL PARTS

Written by

in

KUIX505EBS0 05 – CONTROL PANEL PARTS

Products

PositionProduct
1W10475405 Whirlpool Refrigerator Control Box
2TRANSFORMR
3WP2223877 Whirlpool Door Hook
4W11266112 Whirlpool Refrigerator Housing
5W11034363 Whirlpool Main Control Board + Core
6W11291138 Whirlpool Refrigerator Door Switch
7W10492487 Whirlpool Refrigerator Light
8W10475416 Whirlpool Refrigerator Cover
9THERMISTOR
10W10865633 Whirlpool Refrigerator Electronic Control Board
11WP3400884 Whirlpool Refrigerator Screw
12W11171663 Whirlpool Refrigerator Switch
13W10526623 Whirlpool Refrigerator Clamp
14W10545357 Whirlpool Refrigerator Escutcheon
15WP9741232 Whirlpool Dishwasher Screw
