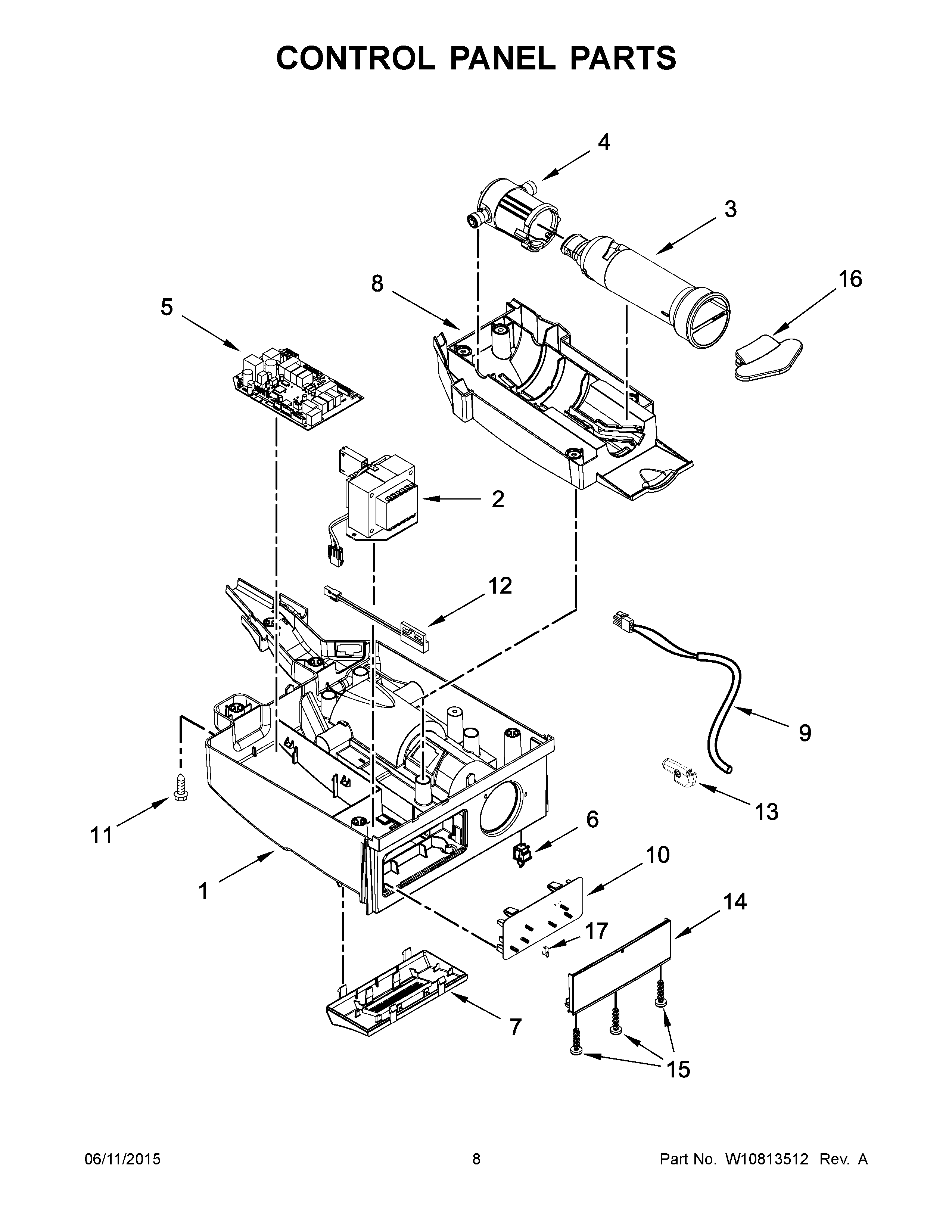

KUIX505ESS1 05 – CONTROL PANEL PARTS

KUIX505ESS1 05 – CONTROL PANEL PARTS

Written by

in

KUIX505ESS1 05 – CONTROL PANEL PARTS

Products

PositionProduct
1W10475405 Whirlpool Refrigerator Control Box
2TRANSFORMR
3F2WC9I1 Whirlpool Refrigerator Ice Maker Water Filter
4W11266112 Whirlpool Refrigerator Housing
5W11034363 Whirlpool Main Control Board + Core
6W11291138 Whirlpool Refrigerator Door Switch
7W10492487 Whirlpool Refrigerator Light
8W10475416 Whirlpool Refrigerator Cover
9THERMISTOR
10W10814799 Whirlpool Refrigerator Electronic Control Board + Core
11WP3400884 Whirlpool Refrigerator Screw
12W11171663 Whirlpool Refrigerator Switch
13W10526623 Whirlpool Refrigerator Clamp
14W10545357 Whirlpool Refrigerator Escutcheon
15WP9741232 Whirlpool Dishwasher Screw
16W10861644 Whirlpool Refrigerator Tool
17WP2223877 Whirlpool Door Hook
