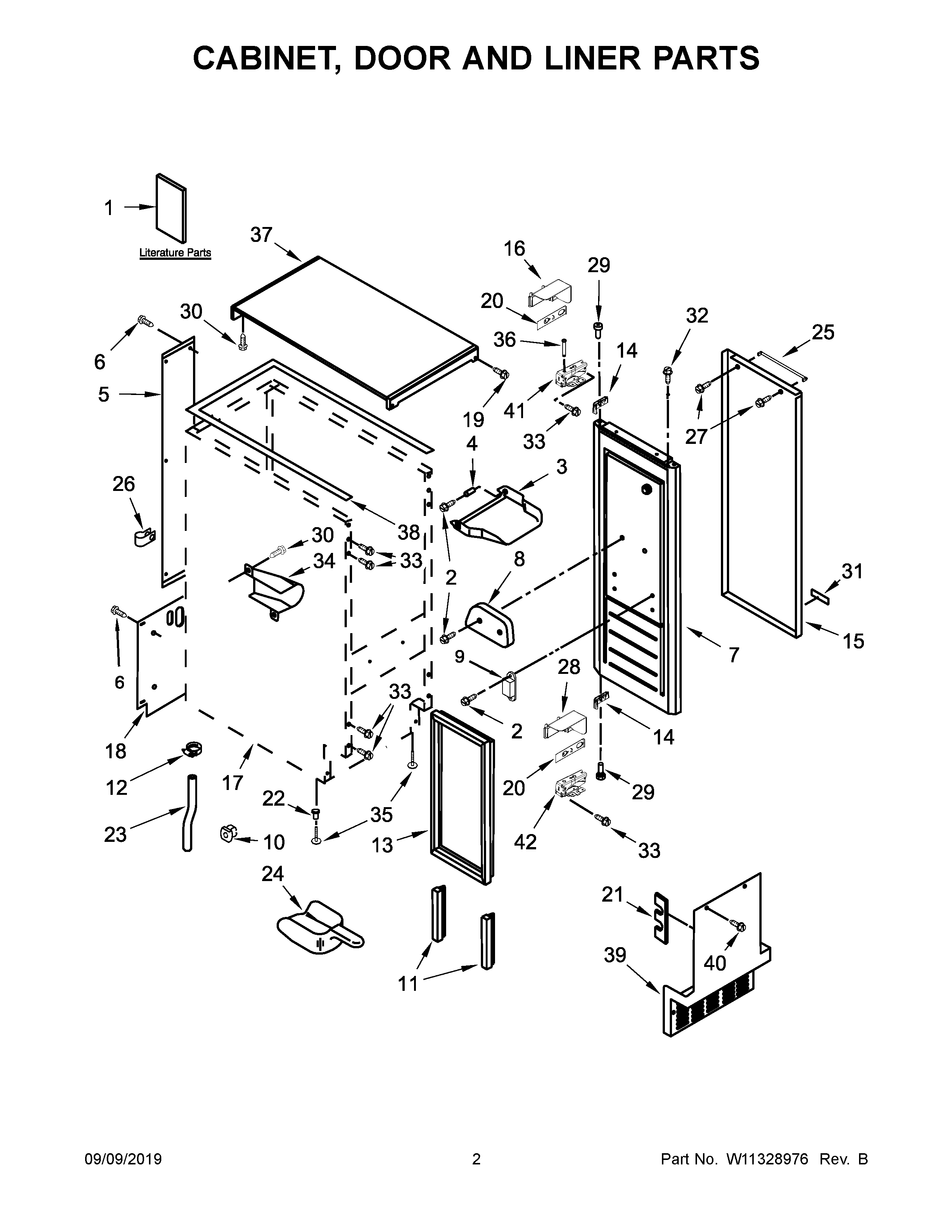

KUIX535HBS00 02 – CABINET, DOOR AND LINER PARTS

KUIX535HBS00 02 – CABINET, DOOR AND LINER PARTS

Written by

in

KUIX535HBS00 02 – CABINET, DOOR AND LINER PARTS

Products

Position	Product
1A	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
1B	TECH SHEET
2	WP3400886 Whirlpool Refrigerator Screw
3	W10734102 Whirlpool Inner Door
4	2185678 Whirlpool Refrigerator Spacer
5	2217394 Whirlpool Refrigerator Wire Cover
6	WP489442 Whirlpool Refrigerator Screw
7	W11346787 Whirlpool Refrigerator Door Assembly
8	W11309649 Whirlpool Door Cam
9	W11223751 Whirlpool Refrigerator Catch Assembly
10	W10136999 Whirlpool Refrigerator Nut
11	GASKET, BOTTOM
12	W10670799 Whirlpool Refrigerator Clamp
13	WP2217294 Whirlpool Refrigerator Door Gasket
14A	W11309756 Whirlpool Floor Endcap
14	W11309752 Whirlpool Endcap Floor
15	W11367892 Whirlpool Refrigerator Door Wrap
15A	W11367891 Whirlpool Refrigerator Door Wrap
16	W11243472 Whirlpool Refrigerator Hinge
17	CABINET (NOT A SERVICEABLE PART)
18	W11367893 Whirlpool Refrigerator Cover Assembly
19	8534075 Whirlpool Screw
20	W11257325 Whirlpool Hinge Cap
21	W11546717 Whirlpool Refrigerator Foam Pad
22	3400240 Whirlpool Refrigerator Nut
23	W10825876 Whirlpool Refrigerator Drain Tube
24	W11420408 Whirlpool Refrigerator Ice Scoop
25	W11450233 Whirlpool Refrigerator Handle
26	WP488366 Whirlpool Refrigerator Clamp
27	WPW10132940 Whirlpool Dishwasher Screw
28	W11243473 Whirlpool Hinge Assembly
29	WPW10308751 Whirlpool Screw
30	WP250830 Whirlpool Refrigerator Screw
31	W10909682 Whirlpool Nameplate Tag
32	NAMEPLATE
33	W10495264 Whirlpool Refrigerator Screw
34	2185927 Whirlpool Refrigerator Holder
35	8193716 Whirlpool Leveling Leg
36	W11212764 Whirlpool Hinge Pin
37	W11246183 Whirlpool Door Assembly
38	W11624957 Whirlpool Refrigerator Top Gasket
39	W11197601 Whirlpool Refrigerator Grille
40	W10531302 Whirlpool Refrigerator Screw
41	W11176752 Whirlpool Refrigerator Hinge
42	W11176753 Whirlpool Refrigerator Hinge
