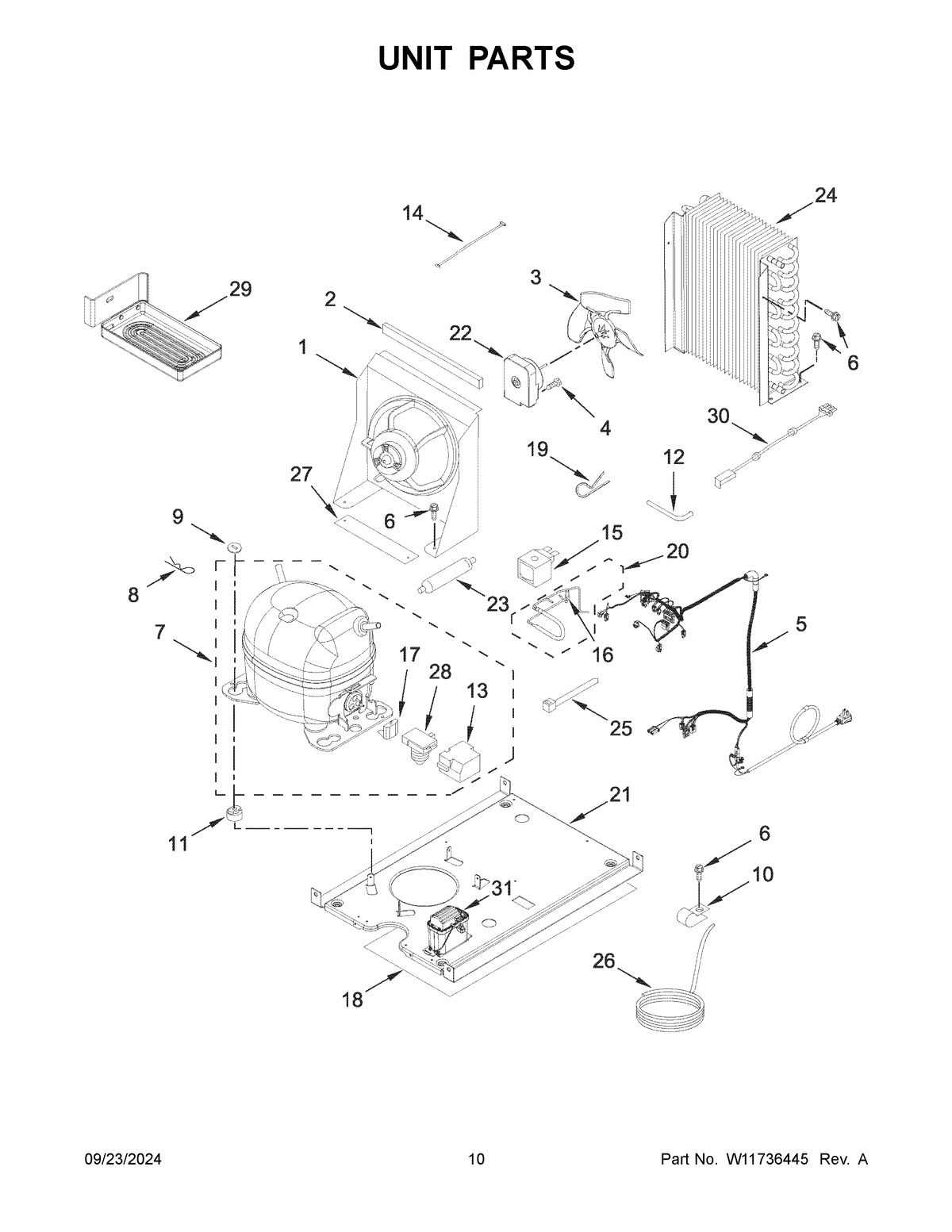

KUIX535HBS02 06 – UNIT PARTSadmin2025-04-26T09:36:27+00:00KUIX535HBS02 06 – UNIT PARTS ProductsPositionProductNIREFRIGERANT CHARGE 5.75 OZ. (R-134A)1WP2185532 Whirlpool Refrigerator Bracket22185675 Whirlpool Refrigerator Foam Pad3WP2188935 Whirlpool Refrigerator Fan Blade4WP8281196 Whirlpool Screw5W11123917 Whirlpool Refrigerator Harness6WP489069 Whirlpool Compactor Screw7W11735041 Whirlpool Compressor8A201435 Whirlpool Refrigerator Clip9A201441 Whirlpool Refrigerator Shim10CLAMP, POWER CORD112185965 Whirlpool Refrigerator Grommet12W10528572 Whirlpool Refrigerator Tube13WP2162358 Whirlpool Refrigerator Terminal Cover14W11086824 Whirlpool Refrigerator Wire Jumper15WPW10206473 Whirlpool Refrigerator Coil Solenoid16WP759113 Whirlpool Refrigerator Gas Valve17W11624931 Whirlpool Refrigerator Overload18W10282061 Whirlpool Tape19W11456069 Whirlpool Refrigerator Clamp20VALVE, HOT GAS21BASE, UNIT22W11613295 Whirlpool Condenser Motor23W10843121 Whirlpool Refrigerator Tube24CONDENSER25Strap26HOSE27PAD, FOAM28WP2217224 Whirlpool Refrigerator Start Relay29W10615506 Whirlpool Refrigerator Water Pan30WP2187629 Whirlpool Refrigerator Wire Jumper31W11539855 Whirlpool Refrigerator Pump
