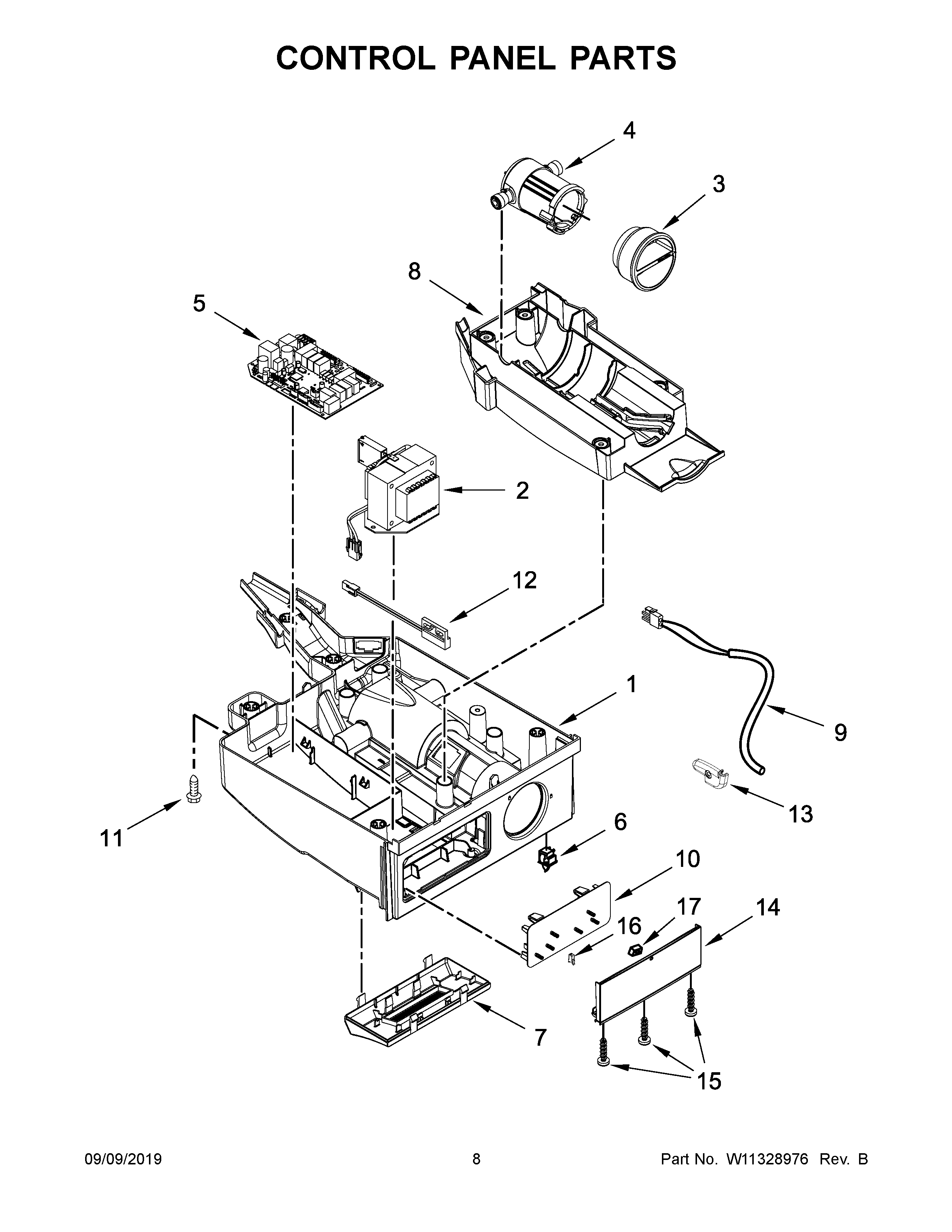

KUIX535HPS00 05 – CONTROL PANEL PARTS

Products

Position	Product
1	W10475405 Whirlpool Refrigerator Control Box
2	TRANSFORMR
3	W10800355 Whirlpool Refrigerator Filter Cap
4	W11266112 Whirlpool Refrigerator Housing
5	W11034363 Whirlpool Main Control Board + Core
6	W11291138 Whirlpool Refrigerator Door Switch
7	W10492487 Whirlpool Refrigerator Light
8	W10475416 Whirlpool Refrigerator Cover
9	THERMISTOR
10	W11325205-includeCORE Whirlpool W11325205 Refrigerator Electronic Control Board + Core
11	WP3400884 Whirlpool Refrigerator Screw
12	W11171663 Whirlpool Refrigerator Switch
13	W10526623 Whirlpool Refrigerator Clamp
14	W10545357 Whirlpool Refrigerator Escutcheon
15	WP9741232 Whirlpool Dishwasher Screw
16	WP2223877 Whirlpool Door Hook
17	DAMPER, FASCIA
