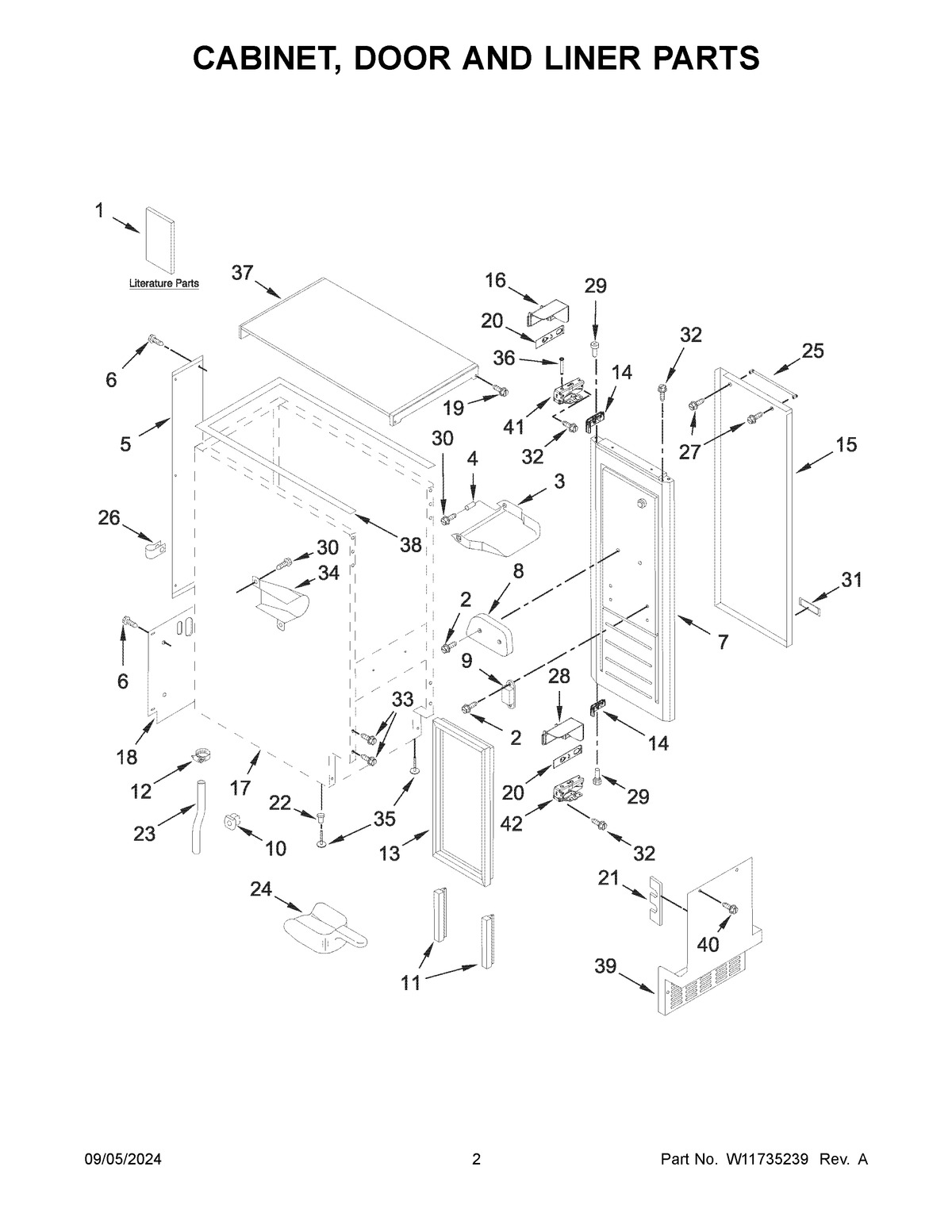

KUIX535HPS02 02 – CABINET, DOOR AND LINER PARTSadmin2025-04-26T09:35:59+00:00KUIX535HPS02 02 – CABINET, DOOR AND LINER PARTS ProductsPositionProduct1ATECH SHEET1OWNERS MANUAL28534077 Whirlpool Screw3W10734102 Whirlpool Inner Door42185678 Whirlpool Refrigerator Spacer52217394 Whirlpool Refrigerator Wire Cover6WP489442 Whirlpool Refrigerator Screw7W11346787 Whirlpool Refrigerator Door Assembly8W11309649 Whirlpool Door Cam9W11223751 Whirlpool Refrigerator Catch Assembly10W10136999 Whirlpool Refrigerator Nut11GASKET, BOTTOM12W10861184 Whirlpool Refrigerator Clamp13WP2217294 Whirlpool Refrigerator Door Gasket14W11309752 Whirlpool Endcap Floor14AW11309756 Whirlpool Floor Endcap15W11367891 Whirlpool Refrigerator Door Wrap16W11243472 Whirlpool Refrigerator Hinge17CABINET AND LINER (NOT SERVICED)18W11367893 Whirlpool Refrigerator Cover Assembly198534075 Whirlpool Screw20W11257325 Whirlpool Hinge Cap21W11546717 Whirlpool Refrigerator Foam Pad223400240 Whirlpool Refrigerator Nut23W10825876 Whirlpool Refrigerator Drain Tube24W11420408 Whirlpool Refrigerator Ice Scoop25W11450233 Whirlpool Refrigerator Handle26WP488366 Whirlpool Refrigerator Clamp27WPW10132940 Whirlpool Dishwasher Screw28W11243473 Whirlpool Hinge Assembly29NAMEPLATE30WP3400884 Whirlpool Refrigerator Screw31W10909682 Whirlpool Nameplate Tag32W10495264 Whirlpool Refrigerator Screw33W11573574 Whirlpool Screw342185927 Whirlpool Refrigerator Holder358193716 Whirlpool Leveling Leg36W11212764 Whirlpool Hinge Pin37W11246183 Whirlpool Door Assembly38W11624957 Whirlpool Refrigerator Top Gasket39W11197601 Whirlpool Refrigerator Grille40W10531302 Whirlpool Refrigerator Screw41W11176752 Whirlpool Refrigerator Hinge42W11176753 Whirlpool Refrigerator Hinge
