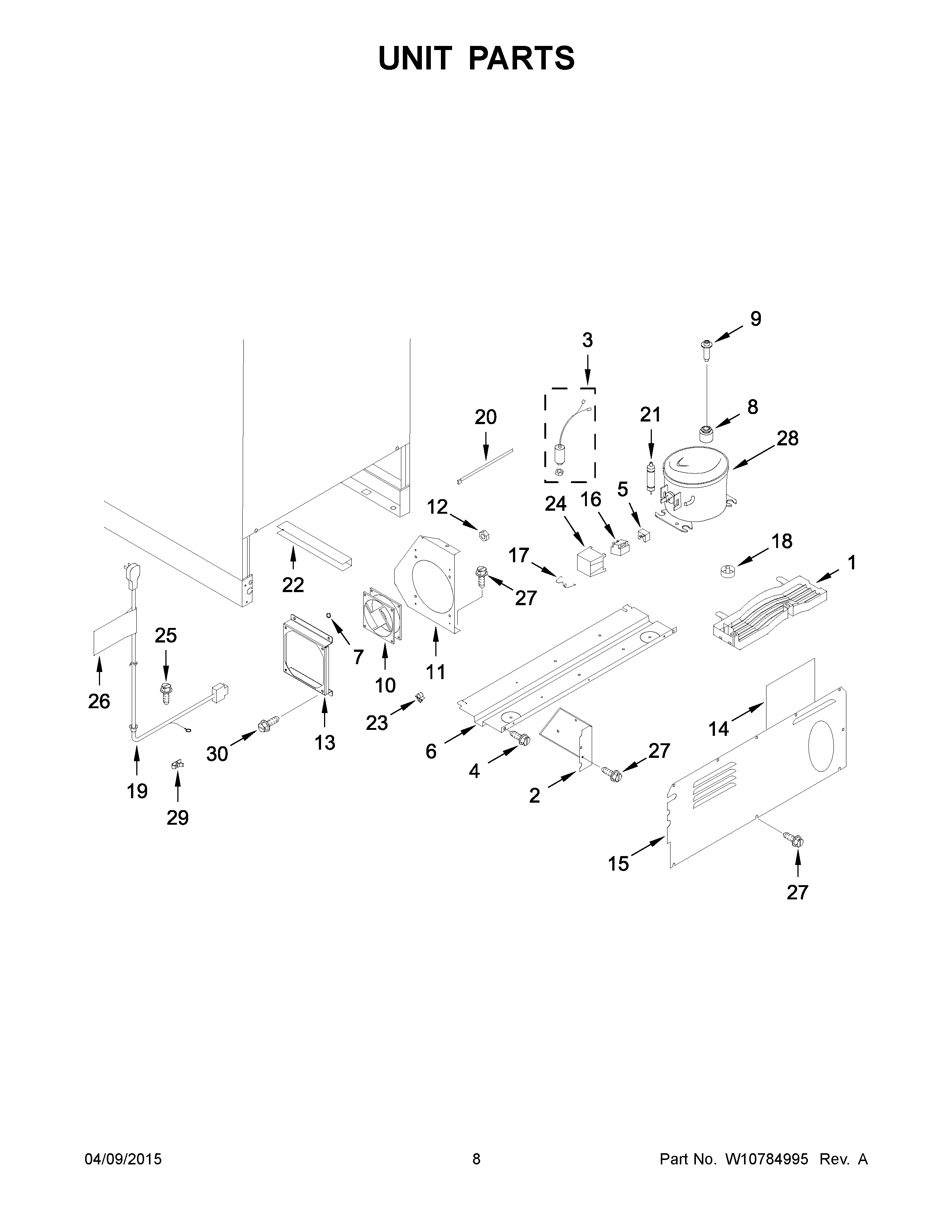

KURL104ESB00 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W10316689 Whirlpool Refrigerator Drip Pan
2	BRACKET, DEFROST TIMER
3	W10778969 Whirlpool Refrigerator Capacitor
4	4344797 Whirlpool Screw
5	W10778965 Whirlpool Refrigerator Overload Relay
6	CABINET BASE PLATE
7	W10204688 Whirlpool Plate Assembly
8	WP4344779 Whirlpool Refrigerator Grommet
9	W10772873 Whirlpool Screw
10	W10772882 Whirlpool Refrigerator Condenser Motor
11	W10204674 Whirlpool Refrigerator Baffle
12	NUT
13	W11506521 Whirlpool Refrigerator Bracket
14	SEAL, COLD AIR STOP
15	W10796445 Whirlpool Refrigerator Back Cover
16	W10778966 Whirlpool Refrigerator Thermistor
17	CLIP, RELAY COVER
18	W10163276 Whirlpool Refrigerator Trap
19	WPW10204676 Whirlpool Refrigerator Power Cord
20	4344829 Whirlpool Tie Wire
21	W10163273 Whirlpool Refrigerator Tube
22	TRIM, EDGE
23	W10238022 Whirlpool Refrigerator Clip
24	COVER, RELAY
25	4344826 Whirlpool Refrigerator Screw
26	4344913 Whirlpool Label Assembly
27	W11380570 Whirlpool Microwave Screw
28	8201787 Whirlpool Refrigerator Compressor
29	CLAMP, CORD
30	SCREW
