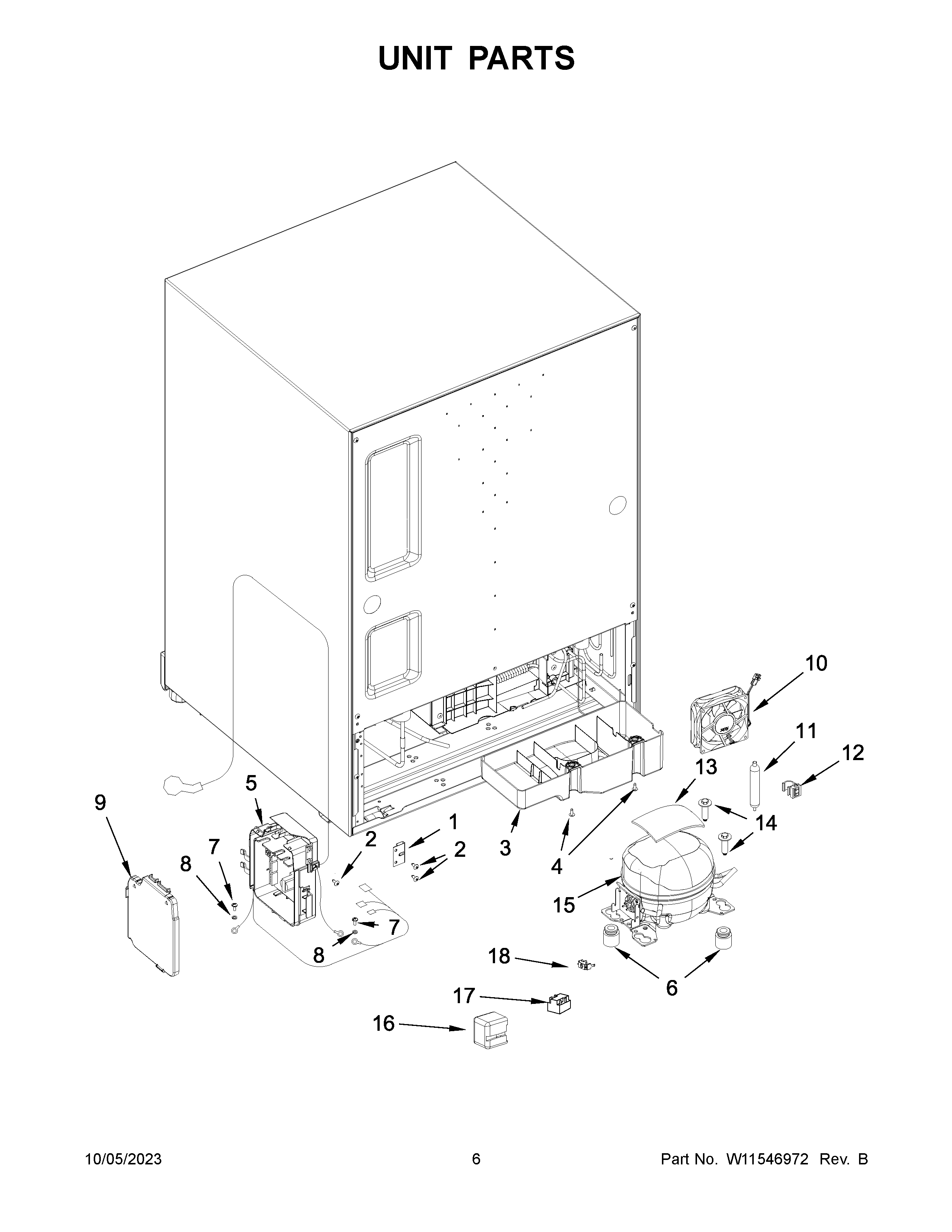

KURL114KPA00 04 – UNIT PARTS

Products

Position	Product
NI	REFRIGERANT CHARGE 52 GRAMS (R600A)
1	CLAMP, CORD
2	W11371097 Whirlpool Screw
3	PAN, WATER
4	SCREW
5	W11546126 Whirlpool Refrigerator Control Box
6	WP4344779 Whirlpool Refrigerator Grommet
7	4344826 Whirlpool Refrigerator Screw
8	W11266077 Whirlpool Washer
9	W11313206 Whirlpool Refrigerator Cover
10	W11360536 Whirlpool Refrigerator Evaporator Motor
11	W10163273 Whirlpool Refrigerator Tube
12	CLAMP
13	COMPRESSOR, RUBBER
14	W10772873 Whirlpool Screw
15	COMPRESSOR
16	COVER
17	W11596023 Whirlpool Start Device
18	PROTECTOR, MOTOR
