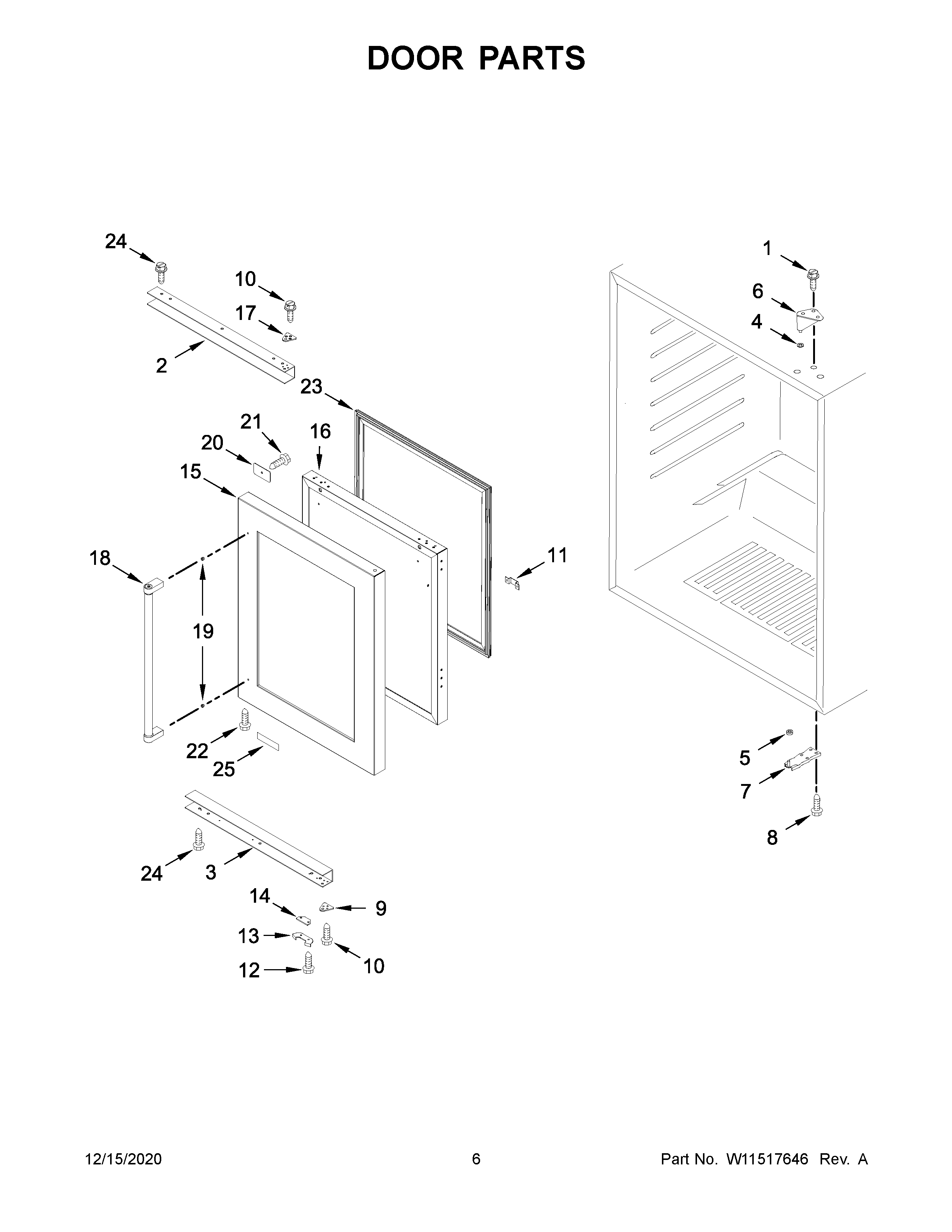

KURL204ESB01 04 – DOOR PARTS

Products

Position	Product
1	4344796 Whirlpool Refrigerator Screw
2A	TOP HINGE PLATE (LEFT HINGE)
2	TOP HINGE PLATE (RIGHT HINGE)
3	BOTTOM HINGE PLATE (RIGHT HINGE)
3A	BOTTOM HINGE PLATE (LEFT HINGE)
4	4344760 Whirlpool Refrigerator Washer
5	W11241702 Whirlpool Refrigerator Washer
6	4344754 Whirlpool Refrigerator Door Hinge
7	W10239363 Whirlpool Refrigerator Door Hinge
7A	4344787 Whirlpool Refrigerator Door Hinge
8	W10780355 Whirlpool Refrigerator Screw
9	4344756 Whirlpool Refrigerator Spacer
10	W10243123 Whirlpool Refrigerator Screw
11	SWITCH PLATE
12	4344801 Whirlpool Refrigerator Screw
13	DOOR STOP
14	4344788 Whirlpool Refrigerator Spacer
15A	W10797360 Whirlpool Refrigerator Front Drawer
15	W11164089 Whirlpool Refrigerator FRT Drawer
16	W11431159 Whirlpool Refrigerator Door
17	4344755 Whirlpool Refrigerator Spacer
18	W11497229 Whirlpool Refrigerator Handle
19	W11179356 Whirlpool Refrigerator Stud Handle
20	W11263339 Whirlpool Refrigerator Plate
21	W10859467 Whirlpool Refrigerator Screw
22	SCREW
23	W11625076 Whirlpool Refrigerator Gasket
24	W10319185 Whirlpool Screw
25	W11179312 Whirlpool Refrigerator Nameplate
