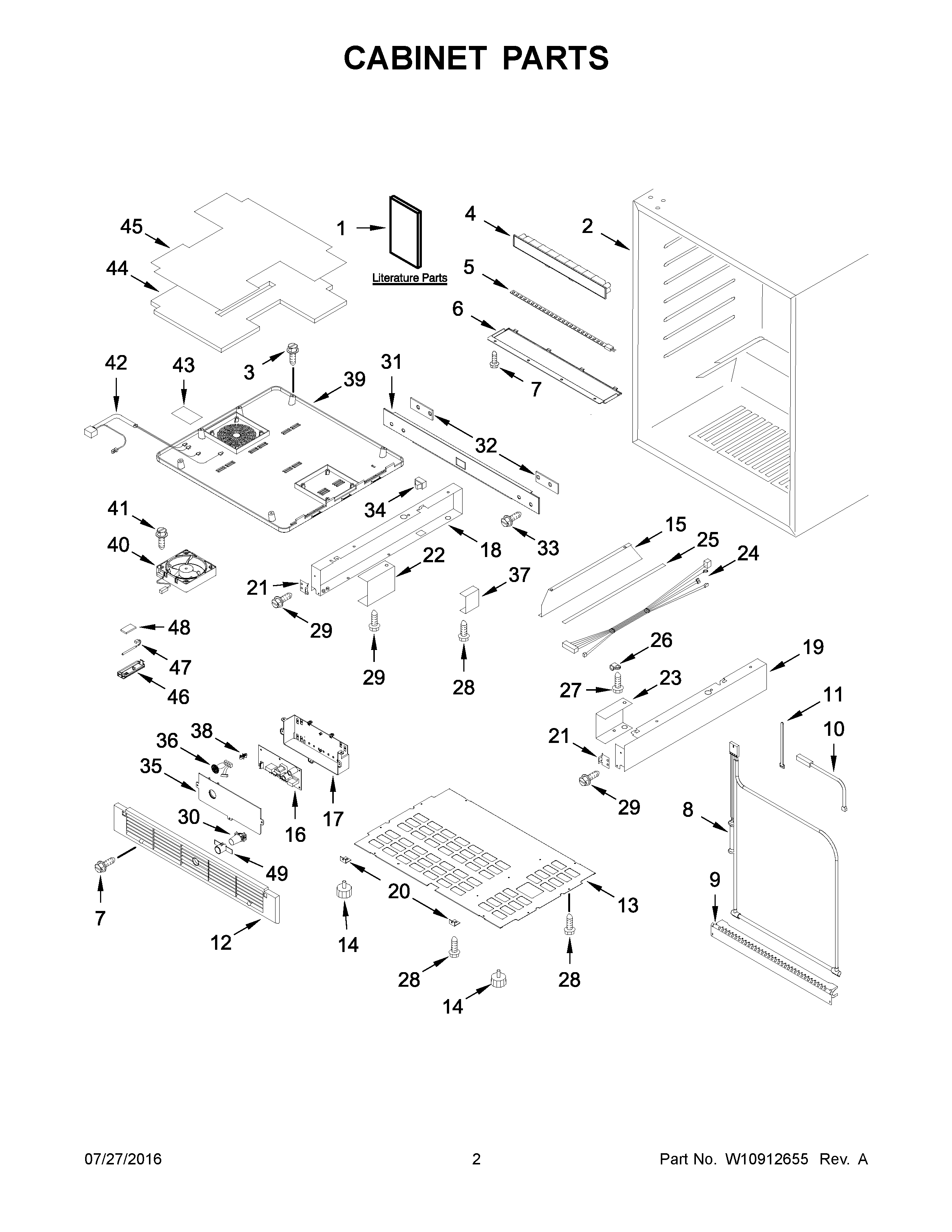

KURL304EBS00 02 – CABINET PARTS

KURL304EBS00 02 – CABINET PARTS

Written by

in

KURL304EBS00 02 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1AUSE & CARE GUIDE
2CABINET (NOT A SERVICEABLE PART)
3SCREW
4W10807591 Whirlpool Refrigerator Electronic Control Board + Core
5W11441723 Whirlpool Refrigerator Light
6W10622774 Whirlpool Refrigerator Light Lens
7W10319184 Whirlpool Refrigerator Screw
8W10292475 Whirlpool Refrigerator Defrost Bimetal
94344747 Whirlpool Refrigerator Shield
10W11573590 Whirlpool Refrigerator Thermistor
114344829 Whirlpool Tie Wire
12W10780351 Whirlpool Refrigerator Grille
13W10772863 Whirlpool Refrigerator Cabinet Base
14W11106296 Whirlpool Refrigerator Leveler
15W10778959 Whirlpool Cabinet Base
16W10807589 Whirlpool Refrigerator Electronic Control Board + Core
17W10772866 Whirlpool Refrigerator Control Box
18W10797388 Whirlpool Refrigerator Support
19W10797389 Whirlpool Refrigerator Support
20W10239388 Whirlpool Brace
21W10204640 Whirlpool Refrigerator Clip
224344820 Whirlpool Refrigerator Support
234344821 Whirlpool Refrigerator Support
24W10772870 Whirlpool Refrigerator Wire Harness
254344823 Whirlpool Refrigerator Seal
26CABLE CLAMP
27SCREW
284344826 Whirlpool Refrigerator Screw
29W10780355 Whirlpool Refrigerator Screw
30W10780359 Whirlpool Refrigerator Sensor
31FRAME FRONT, BOTTOM
32SPACER, FRAME FRONT
33W10780349 Whirlpool Refrigerator Screw
34W10721454 Whirlpool Refrigerator Switch
35W10772869 Whirlpool Refrigerator Cover
36W10780358 Whirlpool Refrigerator Speaker
37BRACKET, PCB
38W10204659 Whirlpool Refrigerator Spacer
39W10797392 Whirlpool Bracket
40W10854409 Whirlpool Refrigerator Evaporator Motor
41W10205061 Whirlpool Screw Assembly
42W10797393 Whirlpool Refrigerator Wire Harness
43W10205062 Whirlpool Wire Cover
44INSULATION, FAN COVER
45COVER
46SENSOR CASE
47W11238391 Whirlpool Refrigerator Thermistor
48W10204948 Whirlpool Refrigerator Control Box
49W10797391 Whirlpool Refrigerator Cover
