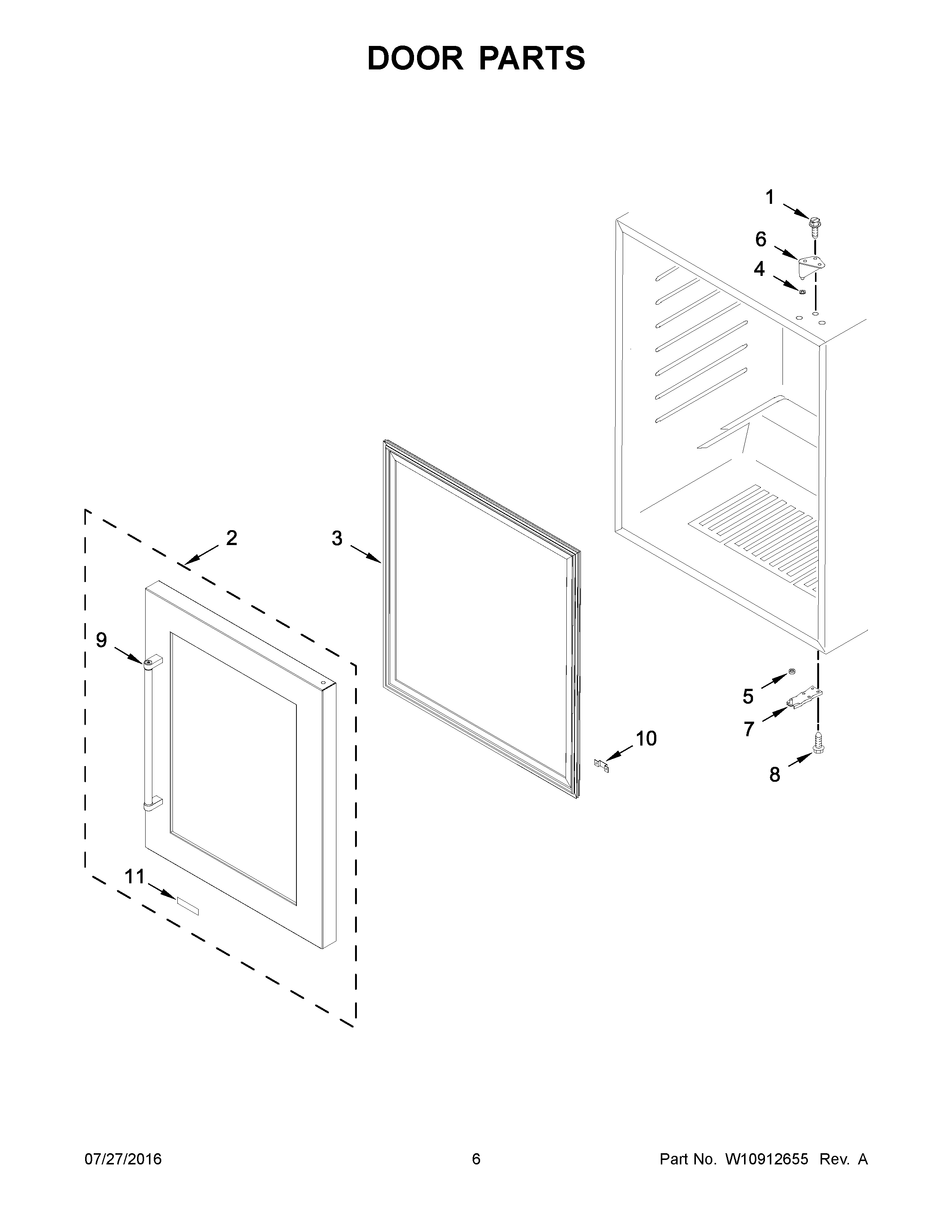

KURL304EBS00 04 – DOOR PARTS

KURL304EBS00 04 – DOOR PARTS

Written by

in

KURL304EBS00 04 – DOOR PARTS

Products

PositionProduct
1SCREW
2W10913552 Whirlpool Refrigerator Door
2AW10913560 Whirlpool Refrigerator Door
3W11625076 Whirlpool Refrigerator Gasket
44344760 Whirlpool Refrigerator Washer
5W11241702 Whirlpool Refrigerator Washer
6W10913035 Whirlpool Refrigerator Door Hinge
7W10239363 Whirlpool Refrigerator Door Hinge
7A4344787 Whirlpool Refrigerator Door Hinge
8W10780355 Whirlpool Refrigerator Screw
9CABINET (NOT A SERVICEABLE PART)
10SWITCH PLATE
11W11179312 Whirlpool Refrigerator Nameplate
