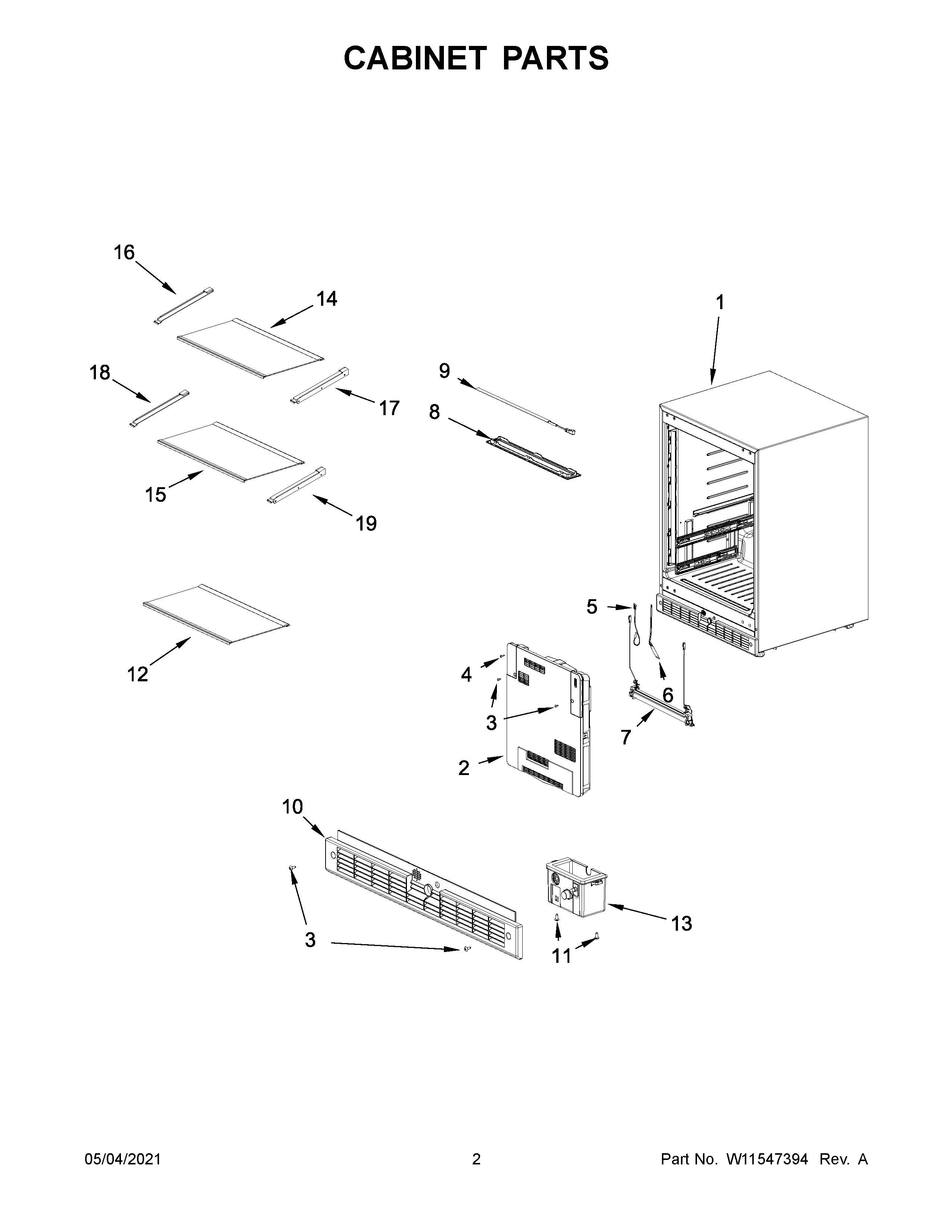

KURL314KSS00 02 – CABINET PARTS

KURL314KSS00 02 – CABINET PARTS

Written by

in

KURL314KSS00 02 – CABINET PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2COVER-EVAP
3W11675284 Whirlpool Screw
4W11375760 Whirlpool Refrigerator Screw
5W11266076 Whirlpool Thermistor
6W11359415 Whirlpool Bi-metal Defrost
7W11359416 Whirlpool Heater
8W11312450 Whirlpool Light Lens
9W11263841 Whirlpool Light Bulb
10W11532987 Whirlpool Refrigerator Grille
11W11371097 Whirlpool Screw
12ASSEMBLY, GLASS TRAY
13W11359433 Whirlpool Cover
14W11538058 Whirlpool Tray
15ASSEMBLY, GLASS TRAY
16W10797332 Whirlpool Refrigerator Support
17W10797333 Whirlpool Refrigerator Support
18W10797336 Whirlpool Refrigerator Support
19W10797337 Whirlpool Refrigerator Support
20CONTROL, BASE
