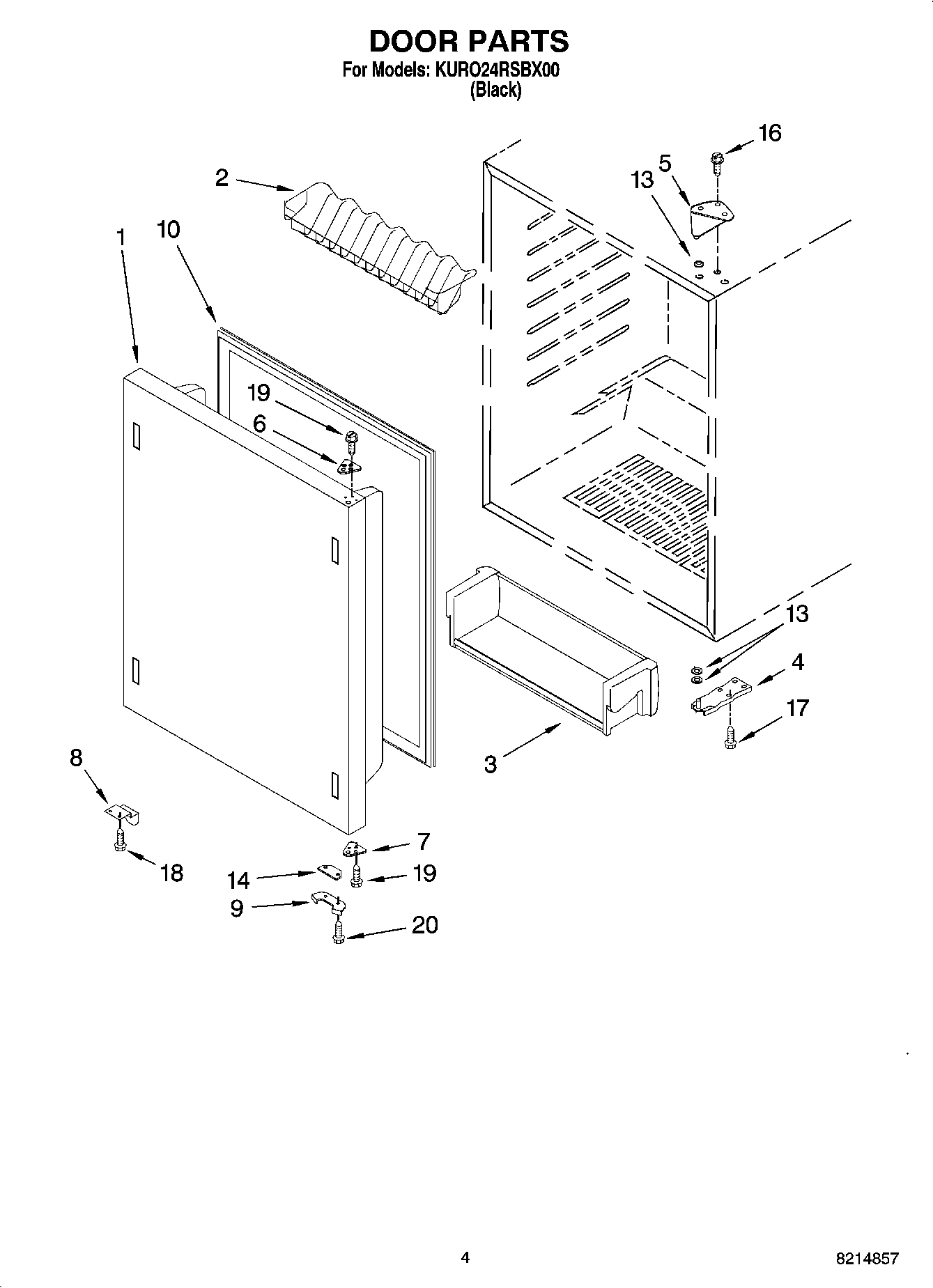

KURO24RSBX00 03 – DOOR PARTS

Products

Position	Product
1	Door Assembly (Includes Gasket)
2	Beverage Holder
3	Door Bin
4	W10239363 Whirlpool Refrigerator Door Hinge
5	4344754 Whirlpool Refrigerator Door Hinge
6	4344804 Whirlpool Spacer
7	4344798 Whirlpool Spacer
8	4344757 Whirlpool Refrigerator Bracket
9	4344802 Whirlpool Bracket Assembly
10	Door Gasket
13	4344760 Whirlpool Refrigerator Washer
14	4344803 Whirlpool Spacer
16	4344796 Whirlpool Refrigerator Screw
17	4344797 Whirlpool Screw
17	Screw, Lower Hinge (Quantity 1)
18	SCREW
19	Screw
20	Installation Kit, Door Panel
20	4344801 Whirlpool Refrigerator Screw
20	Following Parts Not Illustrated
