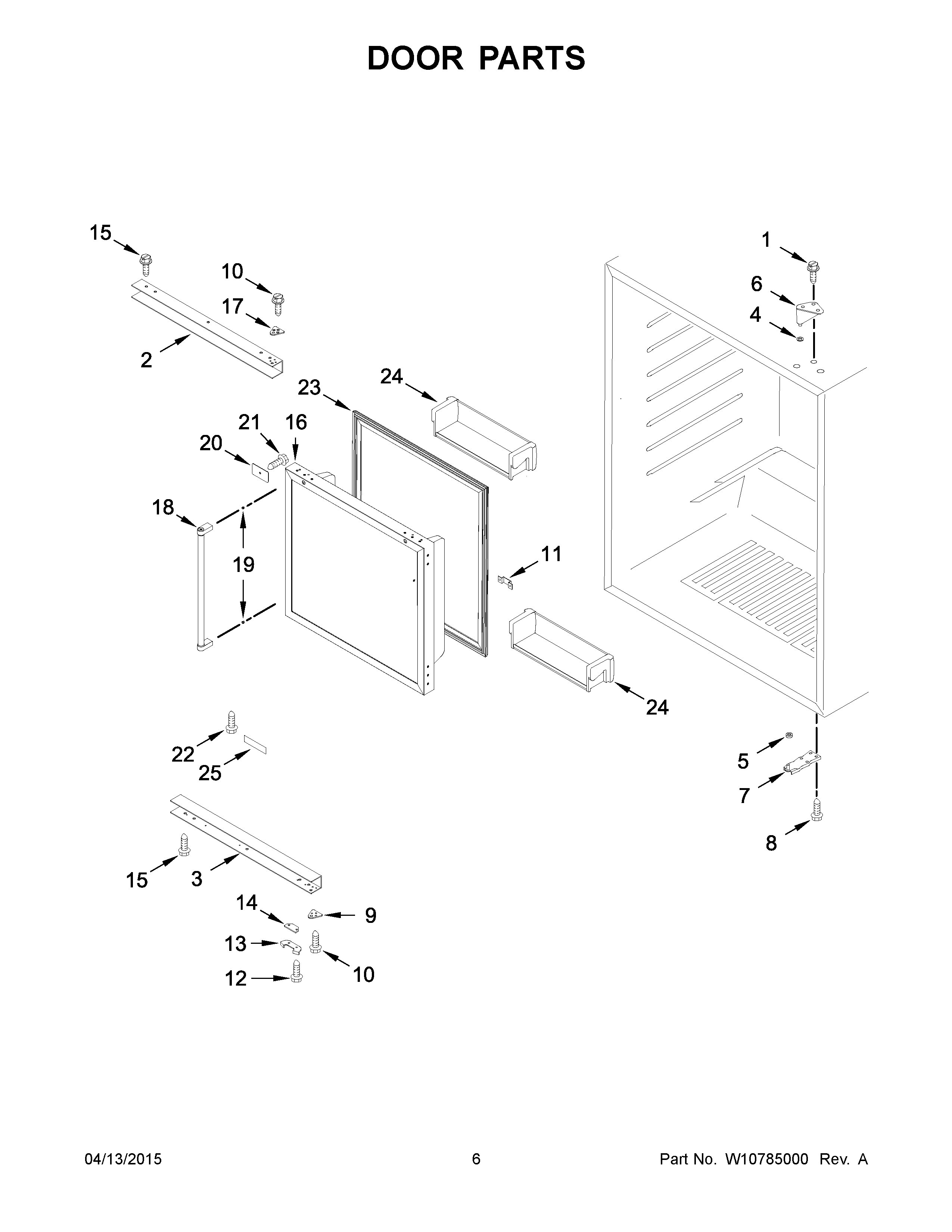

KURR104EPA00 04 – DOOR PARTS

Products

Position	Product
1	4344796 Whirlpool Refrigerator Screw
2	TOP HINGE PLATE (RIGHT HINGE)
2A	TOP HINGE PLATE (LEFT HINGE)
3A	BOTTOM HINGE PLATE (LEFT HINGE)
3	BOTTOM HINGE PLATE (RIGHT HINGE)
4	4344760 Whirlpool Refrigerator Washer
5	W11241702 Whirlpool Refrigerator Washer
6	4344754 Whirlpool Refrigerator Door Hinge
7A	4344787 Whirlpool Refrigerator Door Hinge
7	W10239363 Whirlpool Refrigerator Door Hinge
8	W10780355 Whirlpool Refrigerator Screw
9	4344798 Whirlpool Spacer
10	Screw
11	SWITCH PLATE
12	4344801 Whirlpool Refrigerator Screw
13	4344802 Whirlpool Bracket Assembly
14	4344803 Whirlpool Spacer
15	W10319185 Whirlpool Screw
16	DOOR ASSEMBLY
17	4344804 Whirlpool Spacer
18	W11497229 Whirlpool Refrigerator Handle
19	W11179356 Whirlpool Refrigerator Stud Handle
20	W11263339 Whirlpool Refrigerator Plate
21	W10859467 Whirlpool Refrigerator Screw
22	SCREW
23	WPW10624183 Whirlpool Refrigerator Gasket
24	DOOR BIN
25	W11179312 Whirlpool Refrigerator Nameplate
