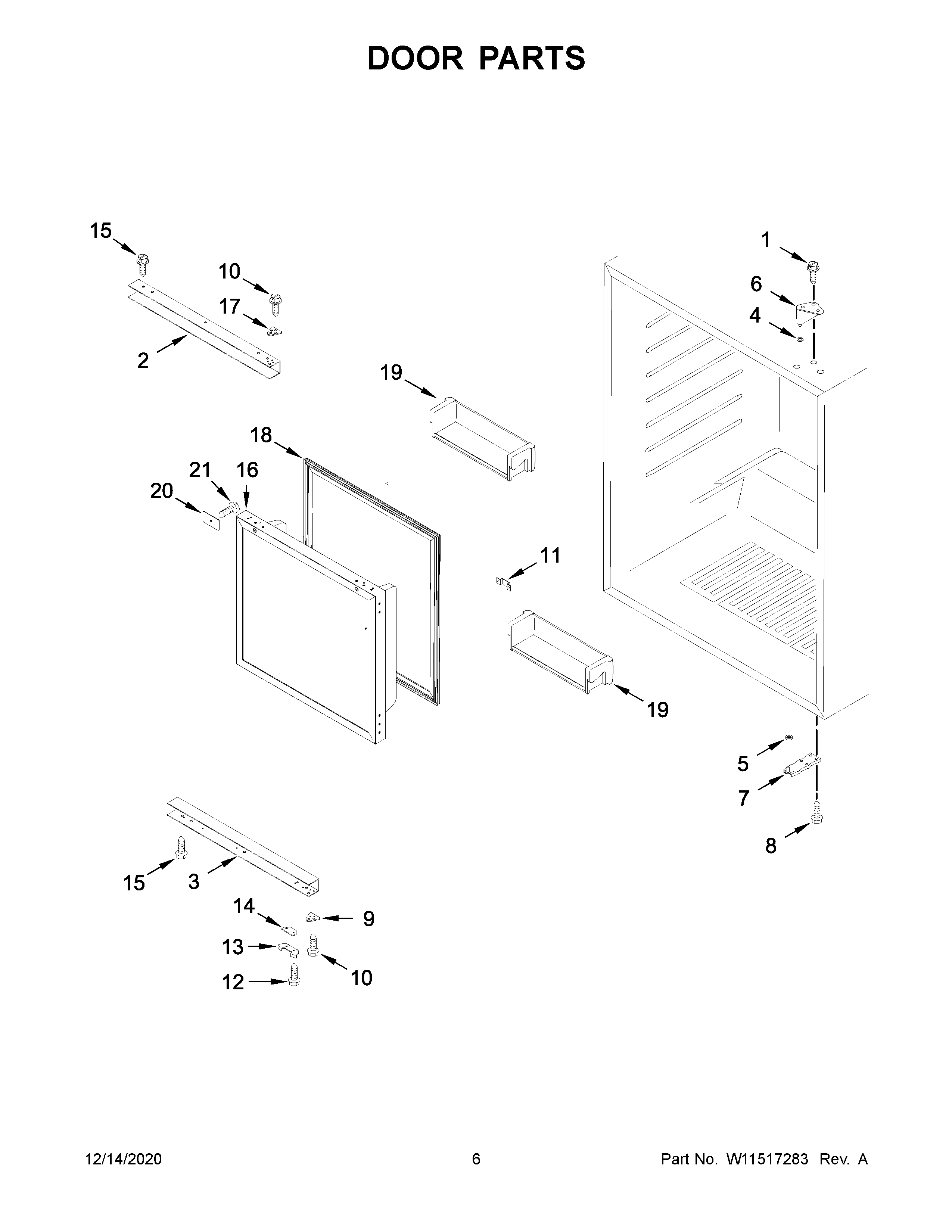

KURR104EPA01 04 – DOOR PARTS

KURR104EPA01 04 – DOOR PARTS

Written by

in

KURR104EPA01 04 – DOOR PARTS

Products

PositionProduct
14344796 Whirlpool Refrigerator Screw
2TOP HINGE PLATE (RIGHT HINGE)
2ATOP HINGE PLATE (LEFT HINGE)
3BOTTOM HINGE PLATE (RIGHT HINGE)
3ABOTTOM HINGE PLATE (LEFT HINGE)
44344760 Whirlpool Refrigerator Washer
5W11241702 Whirlpool Refrigerator Washer
64344754 Whirlpool Refrigerator Door Hinge
7A4344787 Whirlpool Refrigerator Door Hinge
7W10239363 Whirlpool Refrigerator Door Hinge
8W10780355 Whirlpool Refrigerator Screw
94344798 Whirlpool Spacer
10W10243123 Whirlpool Refrigerator Screw
11SWITCH PLATE
124344801 Whirlpool Refrigerator Screw
134344802 Whirlpool Bracket Assembly
144344803 Whirlpool Spacer
15W10319185 Whirlpool Screw
16DOOR ASSEMBLY
174344804 Whirlpool Spacer
18WPW10624183 Whirlpool Refrigerator Gasket
19DOOR BIN
20W11263339 Whirlpool Refrigerator Plate
21W10859467 Whirlpool Refrigerator Screw
