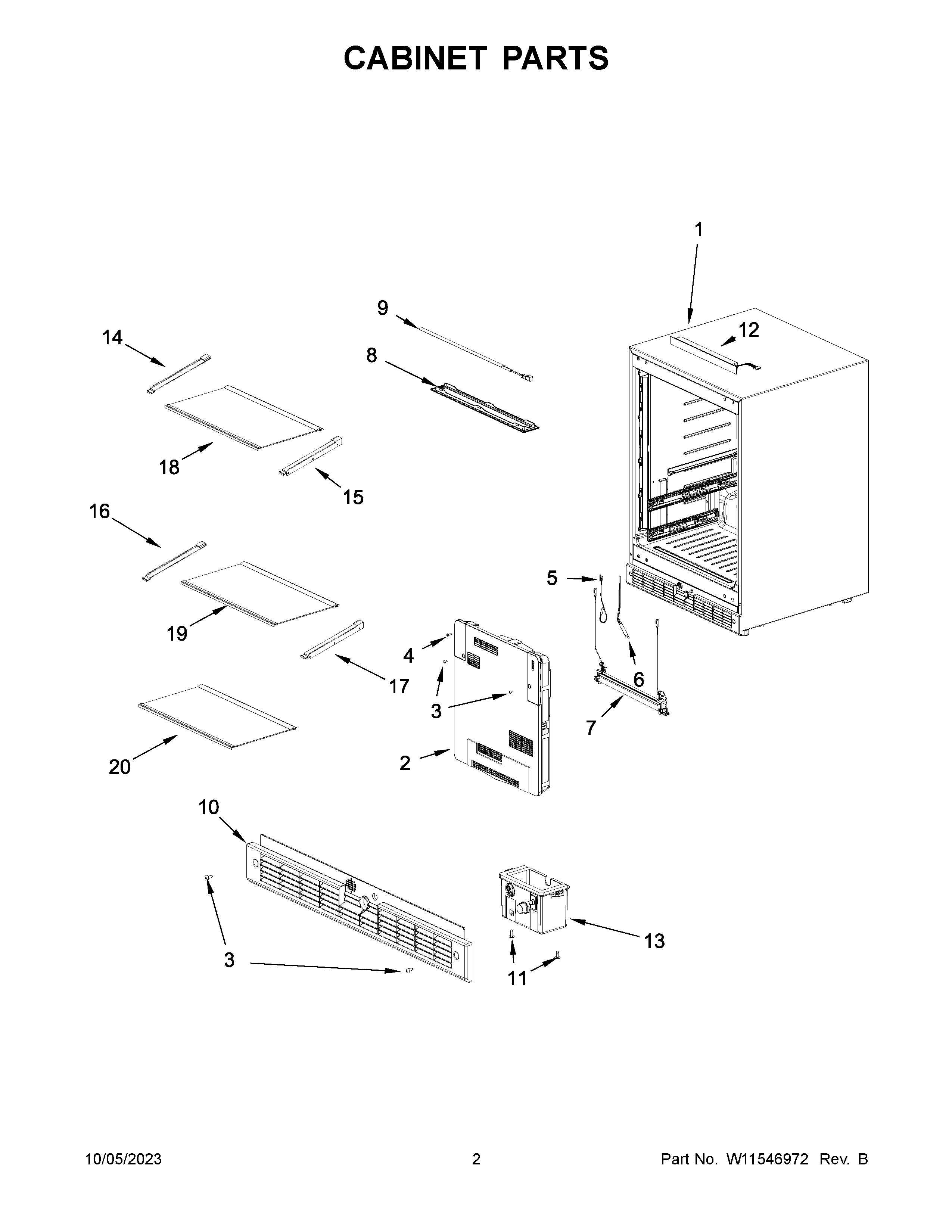

KURR114KPA00 02 – CABINET PARTS

Products

Position	Product
1	CABINET (NOT A SERVICE PART)
2	COVER-EVAP
3	W11675284 Whirlpool Screw
4	W11375760 Whirlpool Refrigerator Screw
5	W11266076 Whirlpool Thermistor
6	W11359415 Whirlpool Bi-metal Defrost
7	W11359416 Whirlpool Heater
8	W11312450 Whirlpool Light Lens
9	W11497301 Whirlpool Refrigerator Light Bulb
10	W11360218 Whirlpool Grille
11	W11371097 Whirlpool Screw
12	W11546137 Whirlpool Refrigerator Control
13	W11407983 Whirlpool Cover
14	W10797332 Whirlpool Refrigerator Support
15	W10797333 Whirlpool Refrigerator Support
16	W10797336 Whirlpool Refrigerator Support
17	W10797337 Whirlpool Refrigerator Support
18	ASSEMBLY, GLASS TRAY
19	W11548216 Whirlpool Tray
20	W11547158 Whirlpool Tray Assembly
