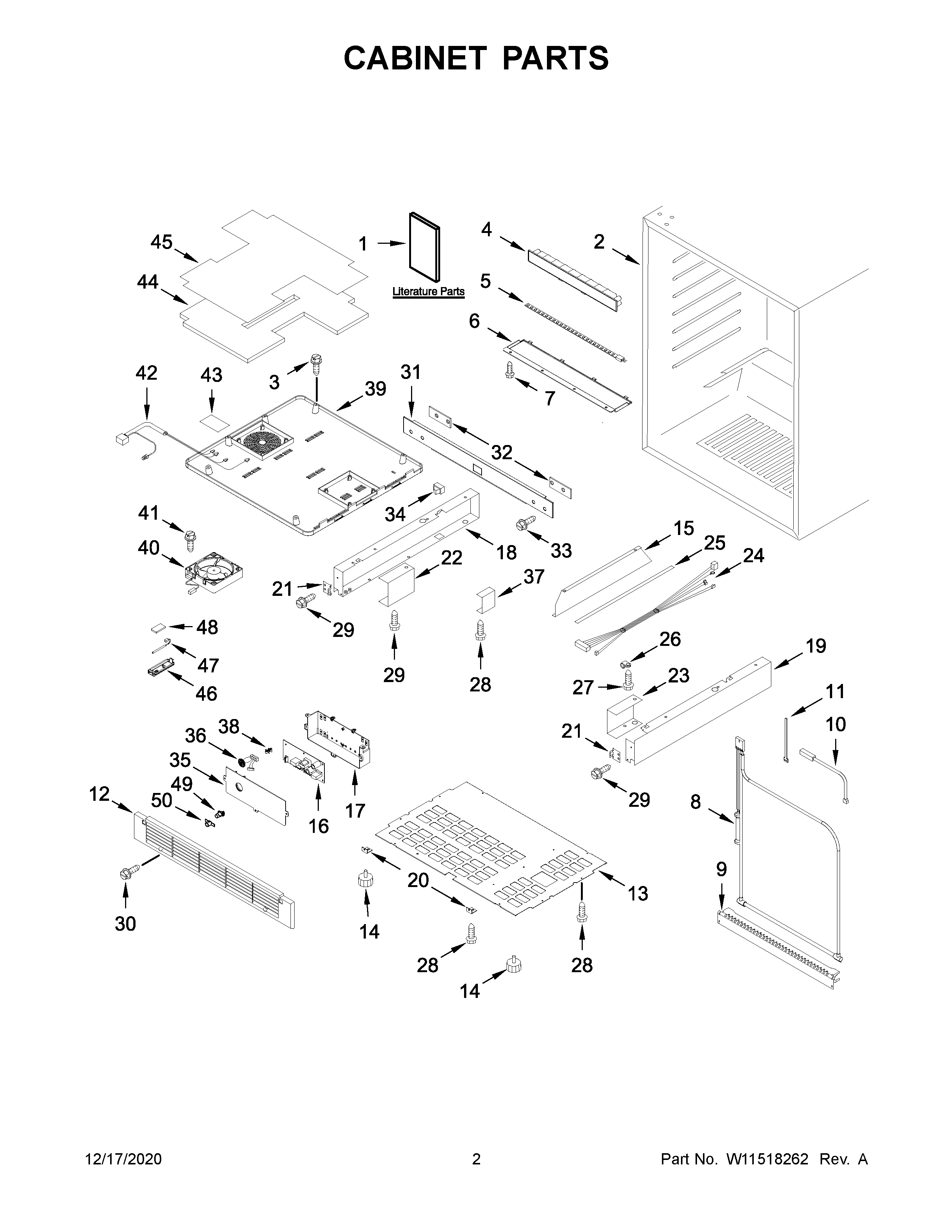

KURR304ESS01 02 – CABINET PARTSadmin2025-04-26T09:35:31+00:00KURR304ESS01 02 – CABINET PARTS ProductsPositionProduct1ENERGY GUIDE USE & CARE GUIDE1AUSE & CARE GUIDE2CABINET (NOT A SERVICEABLE PART)3SCREW4W10807591 Whirlpool Refrigerator Electronic Control Board + Core5W11441723 Whirlpool Refrigerator Light6LENS, LIGHT7W10204808 Whirlpool Refrigerator Screw8W10292475 Whirlpool Refrigerator Defrost Bimetal94344747 Whirlpool Refrigerator Shield10W11573590 Whirlpool Refrigerator Thermistor114344829 Whirlpool Tie Wire12W10797385 Whirlpool Refrigerator Grille13W10772863 Whirlpool Refrigerator Cabinet Base14W11106296 Whirlpool Refrigerator Leveler15W10778959 Whirlpool Cabinet Base16W10807589 Whirlpool Refrigerator Electronic Control Board + Core17W10772866 Whirlpool Refrigerator Control Box18W10797388 Whirlpool Refrigerator Support19W10797389 Whirlpool Refrigerator Support20W10239388 Whirlpool Brace21W10797390 Whirlpool Refrigerator Clip224344820 Whirlpool Refrigerator Support234344821 Whirlpool Refrigerator Support24W10772870 Whirlpool Refrigerator Wire Harness254344823 Whirlpool Refrigerator Seal26CABLE CLAMP27SCREW284344826 Whirlpool Refrigerator Screw29W10780355 Whirlpool Refrigerator Screw30W10319184 Whirlpool Refrigerator Screw31FRAME FRONT, BOTTOM32SPACER, FRAME FRONT33W10780349 Whirlpool Refrigerator Screw34W10721454 Whirlpool Refrigerator Switch35W10772869 Whirlpool Refrigerator Cover36W10780358 Whirlpool Refrigerator Speaker37BRACKET, PCB38W10204659 Whirlpool Refrigerator Spacer39W10797392 Whirlpool Bracket40W10854409 Whirlpool Refrigerator Evaporator Motor41W10205061 Whirlpool Screw Assembly42W10797393 Whirlpool Refrigerator Wire Harness43W10205062 Whirlpool Wire Cover44INSULATION, FAN COVER45COVER46SENSOR CASE47W11238391 Whirlpool Refrigerator Thermistor48W10204948 Whirlpool Refrigerator Control Box49W10780359 Whirlpool Refrigerator Sensor50W10797391 Whirlpool Refrigerator Cover
