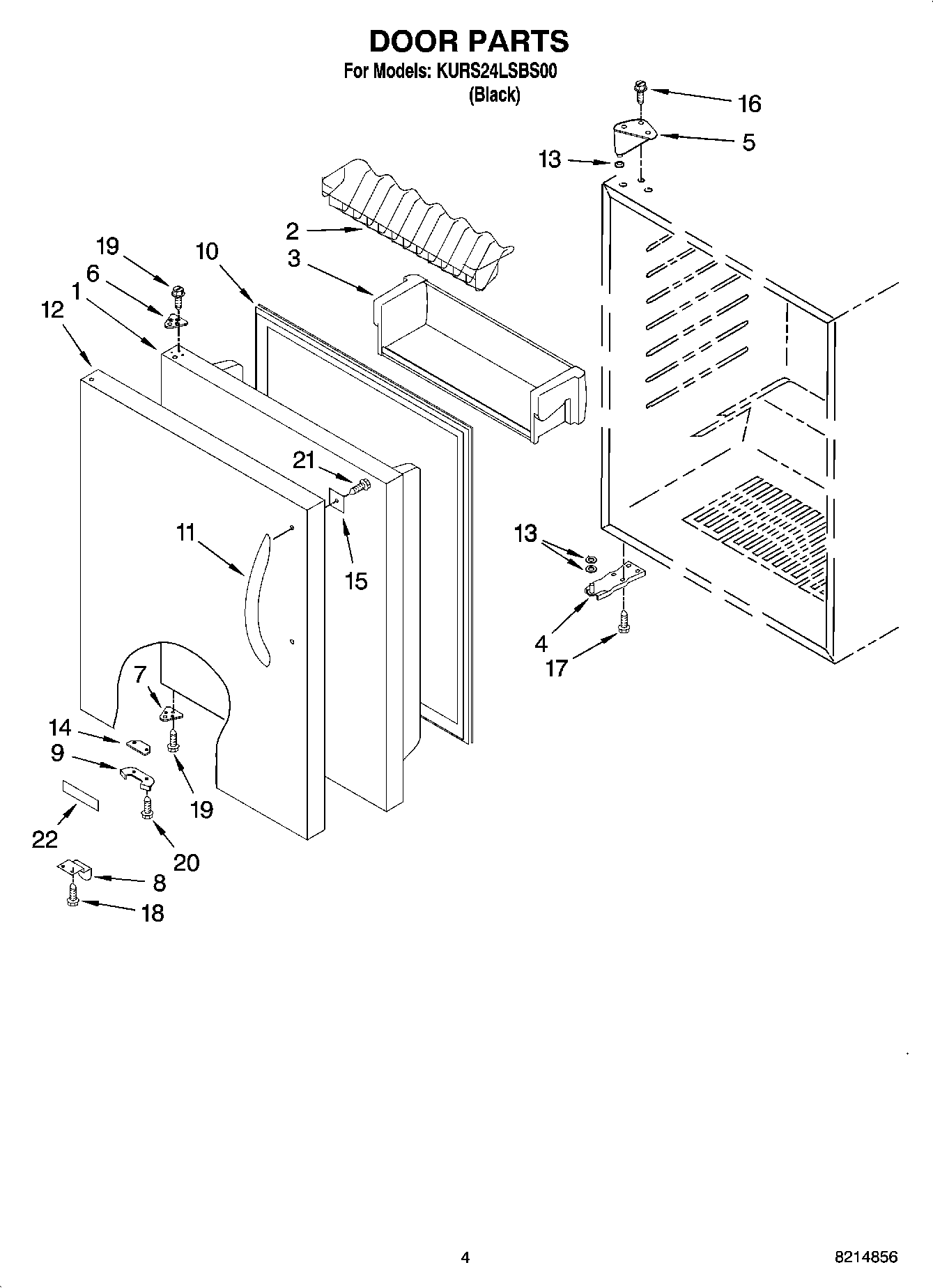

KURS24LSBS00 03 – DOOR PARTS

Products

Position	Product
1	Door Assembly (Includes Gasket)
2	Beverage Holder
3	Door Bin
4	4344787 Whirlpool Refrigerator Door Hinge
5	4344754 Whirlpool Refrigerator Door Hinge
6	4344755 Whirlpool Refrigerator Spacer
7	4344798 Whirlpool Spacer
8	4344757 Whirlpool Refrigerator Bracket
9	4344758 Whirlpool Refrigerator Bracket
10	Door Gasket
11	WP9872207S Whirlpool Refrigerator Handle
12	Door Skin, Stainless Steel
13	4344760 Whirlpool Refrigerator Washer
14	4344788 Whirlpool Refrigerator Spacer
15	Plate
16	4344796 Whirlpool Refrigerator Screw
17	4344797 Whirlpool Screw
17	Screw, Lower Hinge (Quantity 1)
18	SCREW
19	Screw
20	4344801 Whirlpool Refrigerator Screw
21	SCREW, HANDLE
22	NAMEPLATE
22	CLEANER, STAINLESS STEEL (12 OZ)
22	OPTIONAL PARTS NOT ILLUSTRATED
