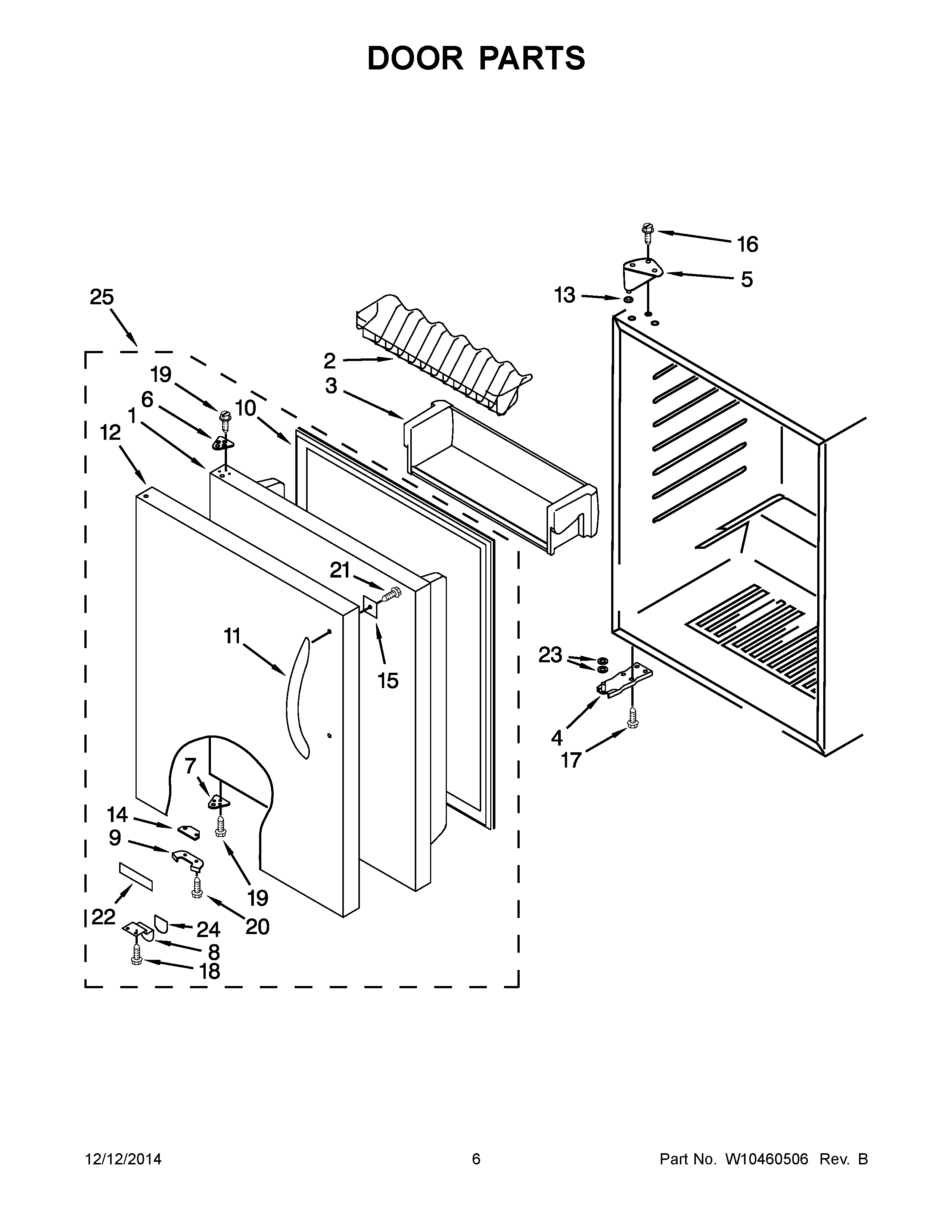

KURS24LSBS03 04 – DOOR PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	CLEANER, STAINLESS STEEL (12 OZ)
1	ASSEMBLY, DOOR
2	Beverage Holder
3	Door Bin
4	4344787 Whirlpool Refrigerator Door Hinge
5	4344754 Whirlpool Refrigerator Door Hinge
6	4344755 Whirlpool Refrigerator Spacer
7	4344798 Whirlpool Spacer
8	4344757 Whirlpool Refrigerator Bracket
9	DOOR STOP
10	Door Gasket
11	WP9872207S Whirlpool Refrigerator Handle
12	SKIN, DOOR (STAINLESS STEEL)
13	4344760 Whirlpool Refrigerator Washer
14	4344788 Whirlpool Refrigerator Spacer
15	Plate
16	4344796 Whirlpool Refrigerator Screw
17	Screw, Lower Hinge (Quantity 1)
18	W10837731 Whirlpool Screw Assembly
19	W10243123 Whirlpool Refrigerator Screw
20	4344801 Whirlpool Refrigerator Screw
21	SCREW, HANDLE
22	NAME PLATE
23	W11241702 Whirlpool Refrigerator Washer
24	GASKET-PUSH PLATE
25	DOOR, COMPLETE (WITH GASKET)
