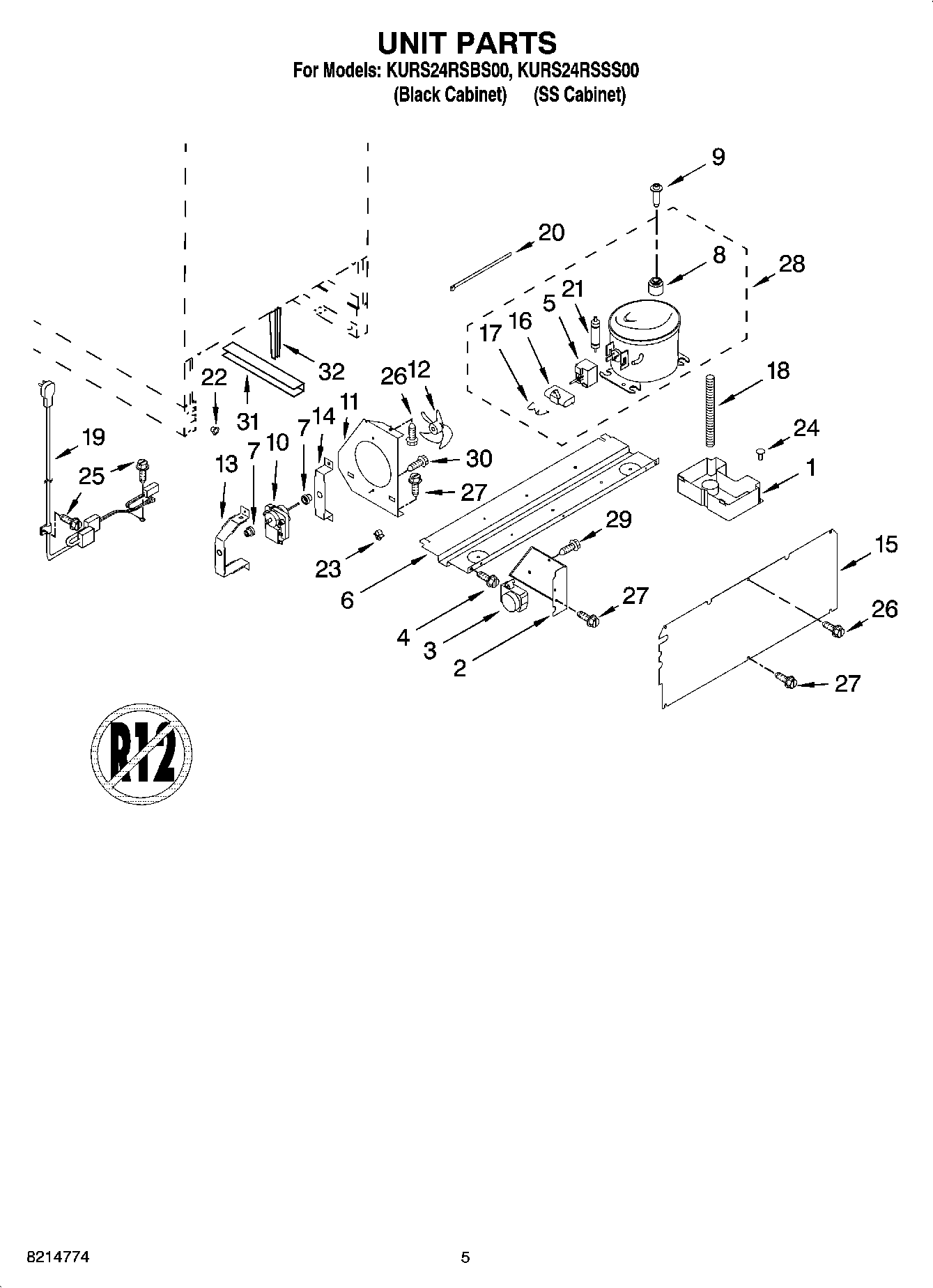

KURS24RSBS00 04 – UNIT PARTS

Products

Position	Product
1	Drain Pan
2	BRACKET, DEFROST TIMER
3	W11609704 Whirlpool Refrigerator Defrost Timer
4	4344797 Whirlpool Screw
5	WP4344776 Whirlpool Refrigerator Start Device
6	Mounting Plate, Compressor
7	Grommet, Fan Motor
8	WP4344779 Whirlpool Refrigerator Grommet
9	W10772873 Whirlpool Screw
10	WPW10299090 Whirlpool Refrigerator Condenser Motor
11	Baffle, Air
12	W10315091 Whirlpool Refrigerator Evaporator Motor
13	4344784 Whirlpool Bracket
14	4344785 Whirlpool Bracket
15	4344786 Whirlpool Back Cover
16	WP1188476 Whirlpool Air Conditioner Capacitor
17	WP4344836 Whirlpool Clip
18	Tube, Drain
19	Power Cord
20	4344829 Whirlpool Tie Wire
21	WP4344828 Whirlpool Refrigerator Dryer Tube
22	Bushing
23	Clip, Bushing
24	Bushing
25	4344826 Whirlpool Refrigerator Screw
26	SCREW
27	W11380570 Whirlpool Microwave Screw
28	8201787 Whirlpool Refrigerator Compressor
29	Screw
30	WP90767 Whirlpool Screw
31	TRIM, EDGE
32	Support, Drain
32	REFRIGERANT CHARGE 3.5 Ounces (R-134A)
