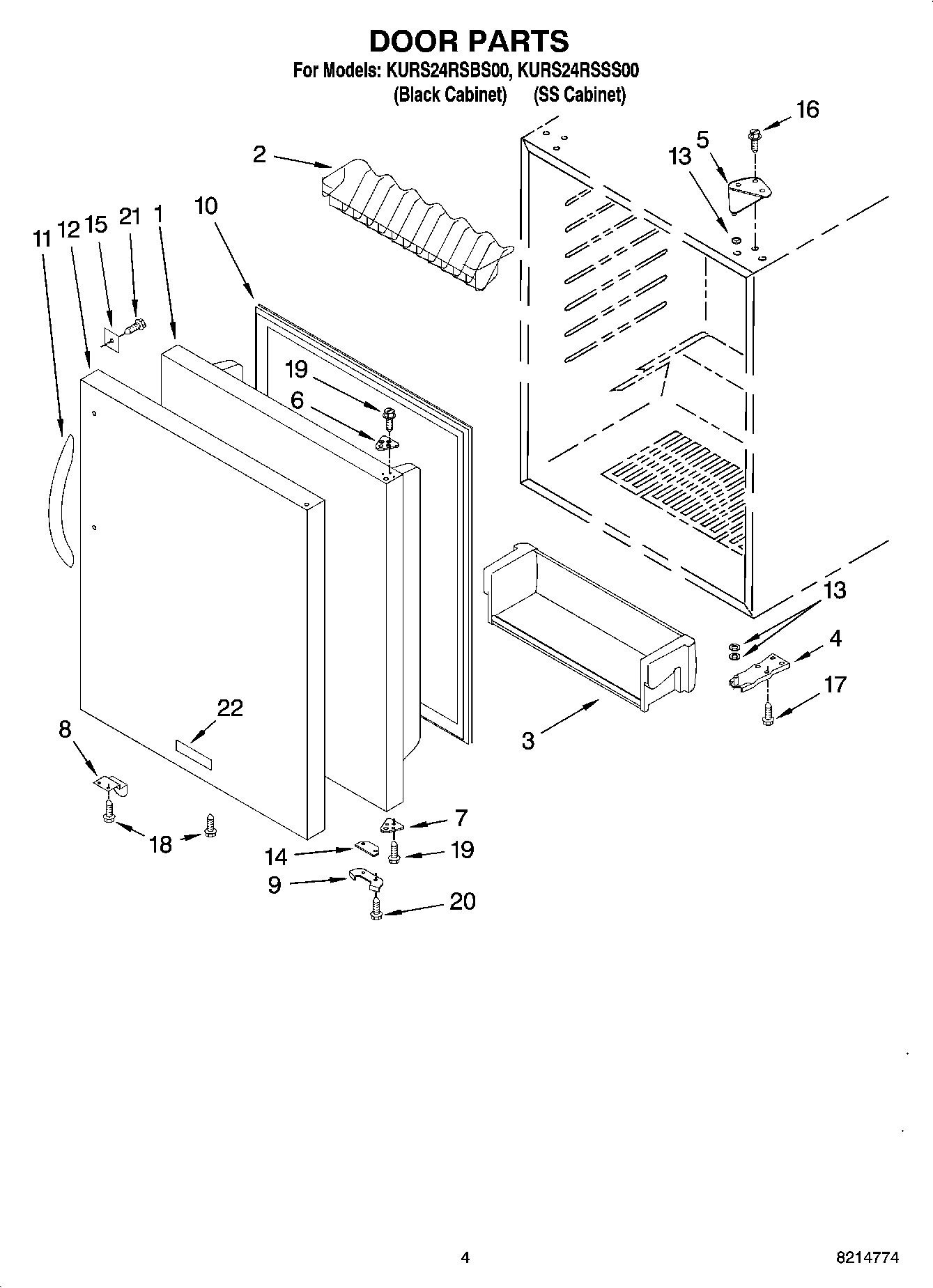

KURS24RSSS00 03 – DOOR PARTS

Products

PositionProduct
1Door Assembly (Includes Gasket)
2Beverage Holder
3Door Bin
4W10239363 Whirlpool Refrigerator Door Hinge
54344754 Whirlpool Refrigerator Door Hinge
64344755 Whirlpool Refrigerator Spacer
74344756 Whirlpool Refrigerator Spacer
84344757 Whirlpool Refrigerator Bracket
94344758 Whirlpool Refrigerator Bracket
10Door Gasket
11WP9872207S Whirlpool Refrigerator Handle
12Door Skin, Stainless Steel
134344760 Whirlpool Refrigerator Washer
144344788 Whirlpool Refrigerator Spacer
15Plate
164344796 Whirlpool Refrigerator Screw
17Screw, Lower Hinge (Quantity 1)
174344797 Whirlpool Screw
18SCREW
19Screw
204344801 Whirlpool Refrigerator Screw
21SCREW, HANDLE
22NAMEPLATE
22CLEANER, STAINLESS STEEL (12 OZ)
22OPTIONAL PARTS NOT ILLUSTRATED
