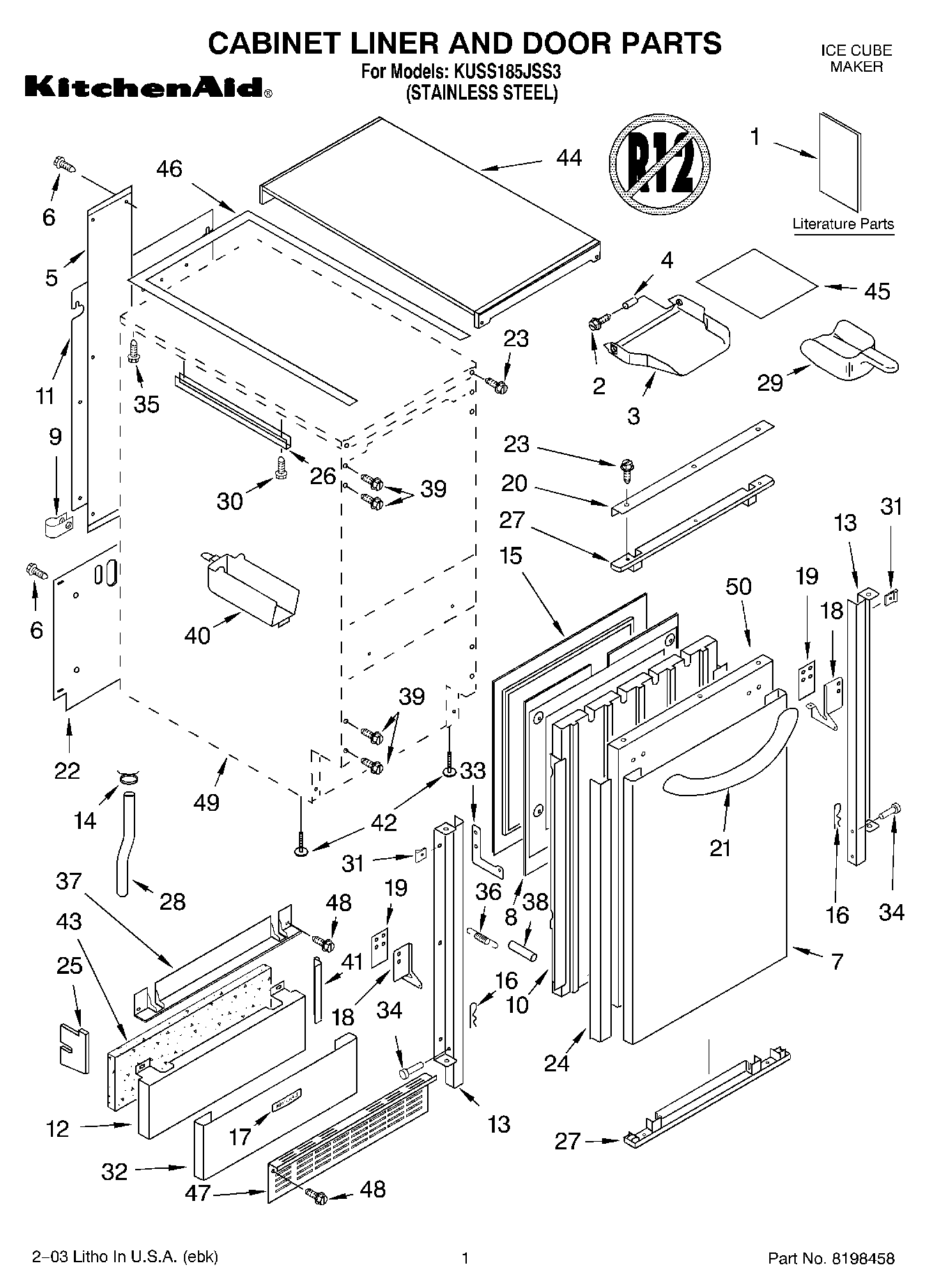

KUSS185JSS3 01 – CABINET LINER AND DOOR PARTSadmin2025-04-26T09:37:08+00:00KUSS185JSS3 01 – CABINET LINER AND DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Literature Parts (Service & Wiring Sheet) |
| 1 | Literature Parts (Use & Care Guide) |
| 2 | WP3400886 Whirlpool Refrigerator Screw |
| 3 | 2208354 Whirlpool Refrigerator Inner Door |
| 4 | 2185678 Whirlpool Refrigerator Spacer |
| 5 | 2217394 Whirlpool Refrigerator Wire Cover |
| 6 | WP489442 Whirlpool Refrigerator Screw |
| 7 | 2208352B Whirlpool Refrigerator Panel |
| 8 | Panel, Interior |
| 9 | WP488366 Whirlpool Refrigerator Clamp |
| 10 | 2208377 Whirlpool Insulation |
| 11 | W10218024 Whirlpool Enclosure |
| 12 | 2208594S Whirlpool Refrigerator Grill Panel |
| 13 | Bracket, Door (Right Side) |
| 13 | 2217466 Whirlpool Bracket |
| 14 | WP489503 Whirlpool Refrigerator Clamp |
| 15 | W11624959 Whirlpool Refrigerator Door Gasket |
| 16 | Clip |
| 17 | Nameplate |
| 18 | 2208425 Whirlpool Refrigerator Hinge |
| 18 | 2208426 Whirlpool Refrigerator Hinge |
| 19 | Shim, Hinge |
| 20 | WP2208452B Whirlpool Refrigerator Handle |
| 21 | Handle, Bar |
| 22 | WPW10136200 Whirlpool Refrigerator Unit Cover |
| 23 | Screw, Handle |
| 24 | 2208595B Whirlpool Guard Edge |
| 25 | 2217225 Whirlpool Refrigerator Foam Pad |
| 26 | 2185691 Whirlpool Refrigerator Channel |
| 27 | W11413461 Whirlpool Refrigerator Endcap |
| 28 | 2208453 Whirlpool Refrigerator Tube |
| 29 | W11420408 Whirlpool Refrigerator Ice Scoop |
| 30 | WP3400884 Whirlpool Refrigerator Screw |
| 31 | CLIP |
| 32 | 2208382B Whirlpool Refrigerator Grill Panel |
| 33 | 2208487 Whirlpool Bracket |
| 34 | Pin, Hinge |
| 35 | WP250830 Whirlpool Refrigerator Screw |
| 36 | WP2208570 Whirlpool Refrigerator Spring |
| 37 | 2208383B Whirlpool Refrigerator Endcap |
| 38 | Dampener, Spring |
| 39 | WP999367 Whirlpool Refrigerator Screw |
| 40 | Holder, Scoop |
| 41 | 2208596B Whirlpool Refrigerator Edge Guard |
| 42 | 8193716 Whirlpool Leveling Leg |
| 43 | 2208384 Whirlpool Refrigerator Insulation |
| 44 | Top |
| 45 | 2185690 Whirlpool Shield Assembly |
| 46 | 2217296 Whirlpool Refrigerator Top Gasket |
| 47 | WP2217206B Whirlpool Refrigerator Grille |
| 48 | WP489474 Whirlpool Refrigerator Screw |
| 49 | Cabinet & Liner (Not Serviced) |
| 50 | 978030 Whirlpool Refrigerator Valve |
| 50 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 50 | Cleaner, Stainless Steel |
| 50 | 876370 Whirlpool Refrigerator Insulation |
| 50 | WP503695 Whirlpool Refrigerator Sealer |
| 50 | 978026 Whirlpool Refrigerator Primary Valve |
| 50 | WP505587 Whirlpool Refrigerator Sealer |
| 50 | Panel, Wrap |
| 50 | W11179302 Whirlpool Ice Machine Cleaner |
| 50 | VALVE, ACCESS (5/8``) |
| 50 | WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive |
| 50 | VALVE, ACCESS (1/2``) |
| 50 | WP978025 Whirlpool Refrigerator Valve |
| 50 | 978027 Whirlpool Refrigerator Primary Valve |
| 50 | WPL ARI117148A |
